Xray XT8 User Manual

26
XT8XT8E

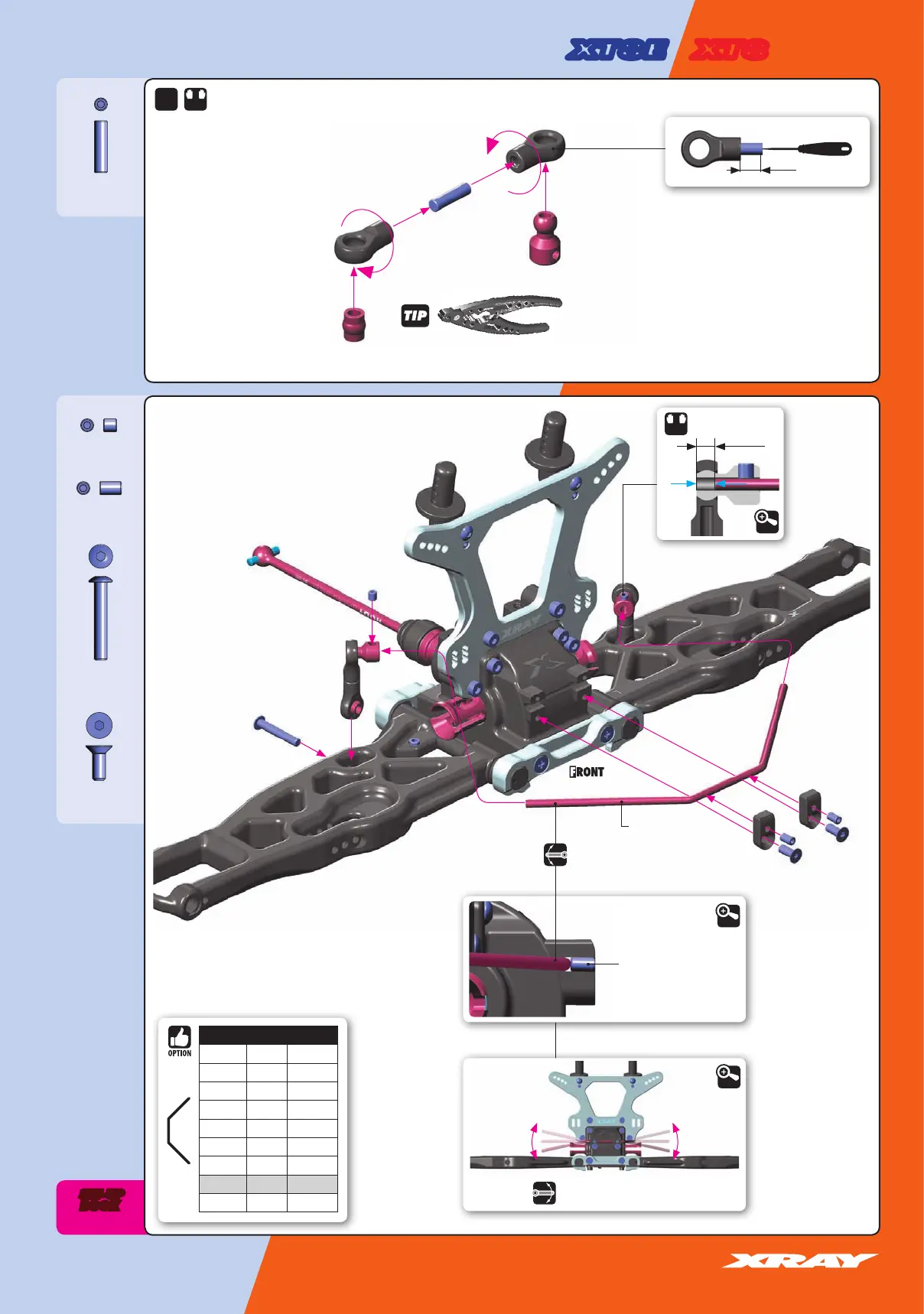

5. FRONT SUSPENSION
ANTI-ROLL BAR
901303
SB M3x3
901305
SB M3x5
901312
SB M3x12
902318
SH M3x18
903308
SFH M3x8
3x3mm
3x5mm
3x8mm
3x18mm
L=R
2x
Step check for free movement.
➊
Loosen the 3x5 setscrew if
the anti-roll bar does not
turn freely.
Step
➊
➊
➋
➌
➍
1.5mm
6mm
-2~0mm
L=R
STEP DETAIL
➍
DETAIL
DETAIL
DETAIL
BOOK
SET-UP
Install the pivot balls with Professional
Multi Tool (HUDY #183011).
FRONT ANTI-ROLL BARS
#352487 1.6mm OPTION
#352489 1.8mm OPTION
#352490 2.0mm OPTION
#352492 2.2mm OPTION
#352493 2.3mm OPTION
#352494 2.4mm OPTION
#352495 2.5mm OPTION
#352496 2.6mm INCLUDED
#352498 2.8mm OPTION
ø2.6mm

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
