Xray XT8 User Manual

27
XT8XT8E
355292
355255
901504
940816
353170
352628
902318
353160
352150
960030
357230
352293
352374
352245
903308
352293
980263
355283
355211
352179
902305
960030
941318
902412
355237
902322
902412
352277 RIGHT
352287 LEFT
353130
352179

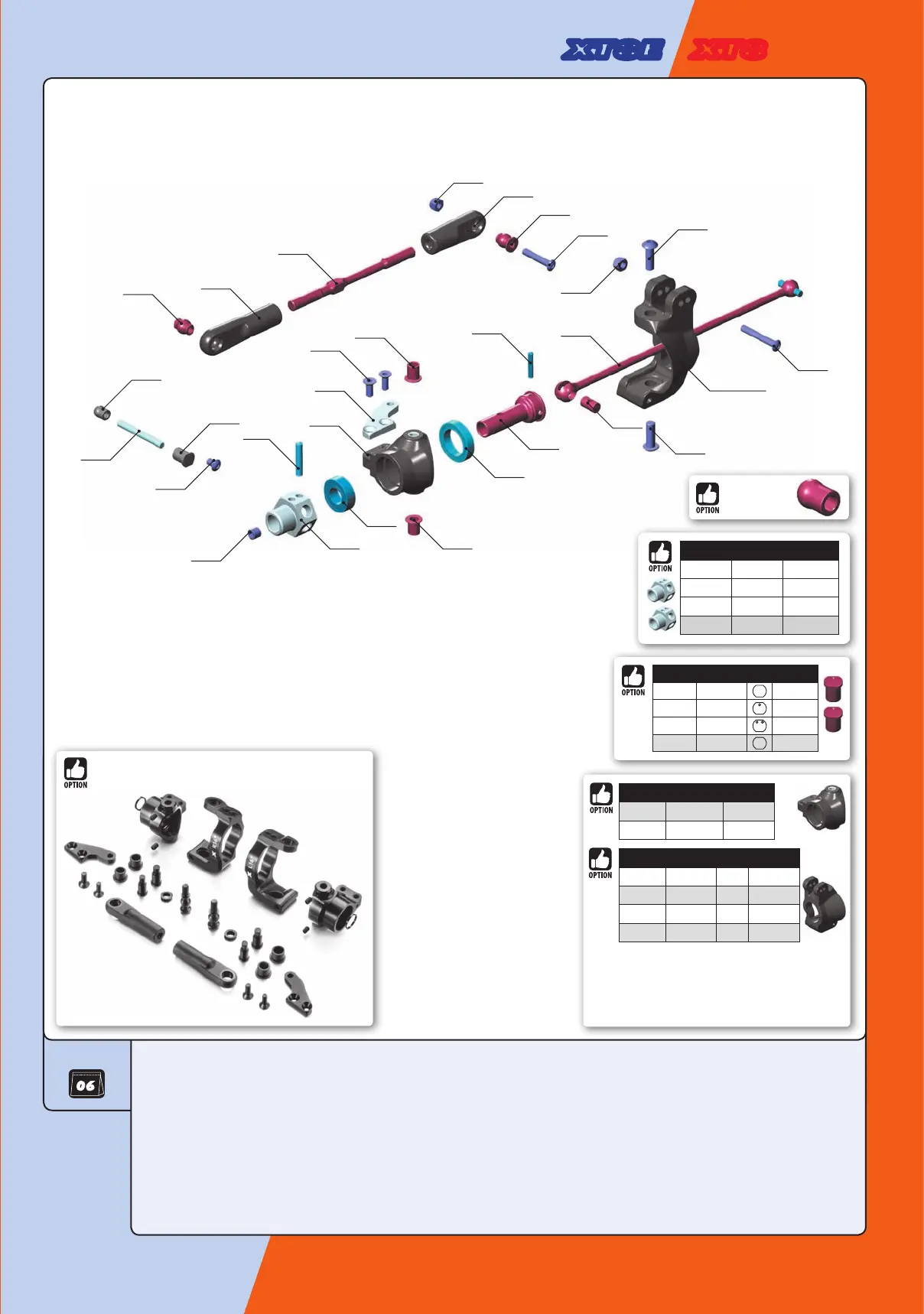

6. FRONT SUSPENSION
BAG
352150 FRONT UPPER ARM BALL JOINT (2)
352179 COMPOSITE BUSHING & BALL MOUNT SET (2+2)
352245 C-HUB STEERING BLOCK LB WITH ALU INSERTS
352277 COMPOSITE C-HUB 16° RIGHT
352287 COMPOSITE C-HUB 16° LEFT
352374 ALU STEERING PLATE - SWISS 7075 T6 (L+R)
352293 STEEL C-HUB BUSHING (2)
352628 ADJ. TURNBUCKLE M5 L/R 75 MM - SPRING STEEL (2)
353130 REAR UPPER INNER CAMBER LINK BALL JOINT (2)
353160 MOUNTING BALL 6.8 (4)
353170 PIVOT BALL 6.8 (4)
355211 CVD DRIVE AXLE - HUDY SPRING STEEL™
355237 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355255 ALU WHEEL AXLE OFFSET "+5MM" - HARDCOATED (2) - LIGHTWEIGHT
355283 CVD DRIVE SHAFT 138MM - HUDY SPRING STEEL™
355292 PIN WITH FLAT SPOT 3x16.8 (2)
357230 FRONT LOWER OUTER PIVOT PIN (2)
901504 HEX SCREW SB M5x4 (10)
902305 HEX SCREW SH M3x5 (10)
902318 HEX SCREW SH M3x18 (10)
902322 HEX SCREW SH M3x22 (10)
902412 HEX SCREW SH M4x12 (10)
903308 HEX SCREW SFH M3x8 (10)
940816 BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
941318 BALL-BEARING 13x19x4 RUBBER SEALED - GREASE (2)
960030 NUT M3 (10)
980263 PIN 2.5x13 (10)
ECCENTRIC BUSHINGS
#352170 0° - STEEL
OPTION
#352174 1° - STEEL
OPTION
#352175 2° - STEEL
OPTION
#352179 0° - COMP.
INCLUDED
#352180
BALL MOUNT (2)
OFFSET WHEEL AXLES
#355251 0mm OPTION
#355251 +1mm OPTION
#355252 +2mm OPTION
#355255 +5mm INCLUDED
#350906
XRAY XT8 ALU FRONT SUSPENSION CONVERSION SET - V2
*To use alu C-hub and alu steering blocks you need to use also
these additional parts:
*#352655 - Ball Stud 6.8mm with Backstop L=6mm - M4 (2)
*#352292 - Steel Steering Block Pivot Pin (2)
*#352294 - Composite Bushing for Alu Caster Block (2)
CASTER BLOCKS
#352273 18° RIGHT ALU* OPTION
#352277 16° RIGHT COMP. INCLUDED
#352283 18° LEFT ALU* OPTION
#352287 16° LEFT COMP. INCLUDED
STEERING BLOCK
#352245 COMPOSITE INCLUDED
#352254 ALU* OPTION
