Xray XT8 User Manual

28
XT8XT8E
902305
SH M3x5
902412
SH M4x12
L=R
2x
355292
P 3x16.8
901504
SB M5x4
980263
P 2.5x13
8x16x5mm
13x19x4mm
3x16.8mm
2.5x13mm
941318
BB 13x19x4
940816
BB 8x16x5
STEP DETAIL
➊
➊
➋
➌
➍
➎
The caster bushing influences the total
caster of the car. Please see page 19.
Follow the TECH TIP on page 5
for drive shaft pin servicing.

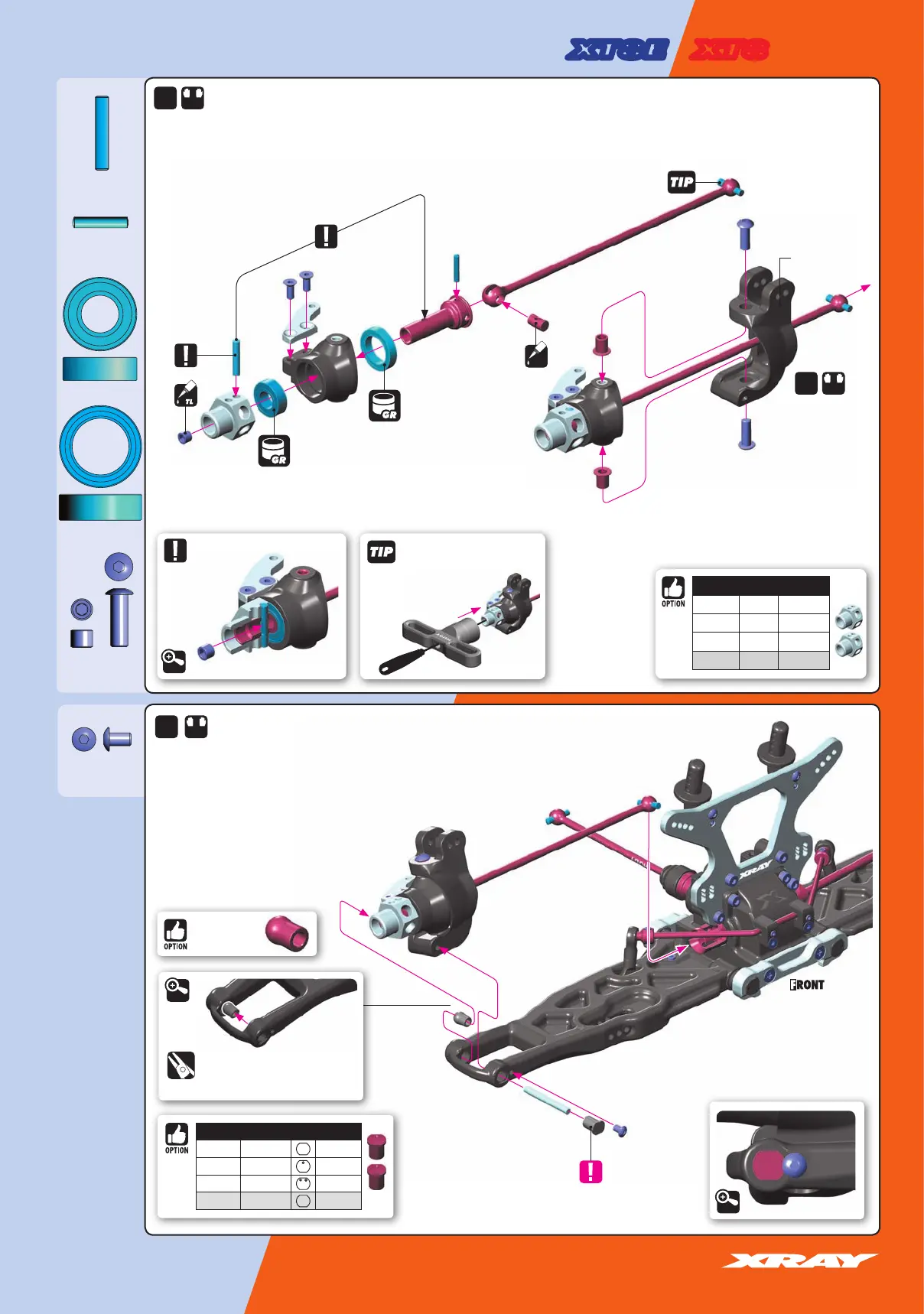

6. FRONT SUSPENSION
DETAIL
ECCENTRIC BUSHINGS
#352170 0° - STEEL
OPTION
#352174 1° - STEEL
OPTION
#352175 2° - STEEL
OPTION
#352179 0° - COMP.
INCLUDED
#352180
BALL MOUNT (2)
➊
➊
➌
➌
Marked “R“
➋
L=R
2x
L=R
2x
OIL
2.5mm
To tighten the setscrew you
can also use the HUDY 17mm
Wheel Nut Tool #107570.
NOTE
ORIENTATION
NOTE
ORIENTATION
DETAIL
NOTE
ORIENTATION
OFFSET WHEEL AXLES
#355251 0mm OPTION
#355251 +1mm OPTION
#355252 +2mm OPTION
#355255 +5mm INCLUDED
DETAIL
Press pivot ball into
arm until it snaps into place.
Combination Pliers (HUDY #189020)

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
