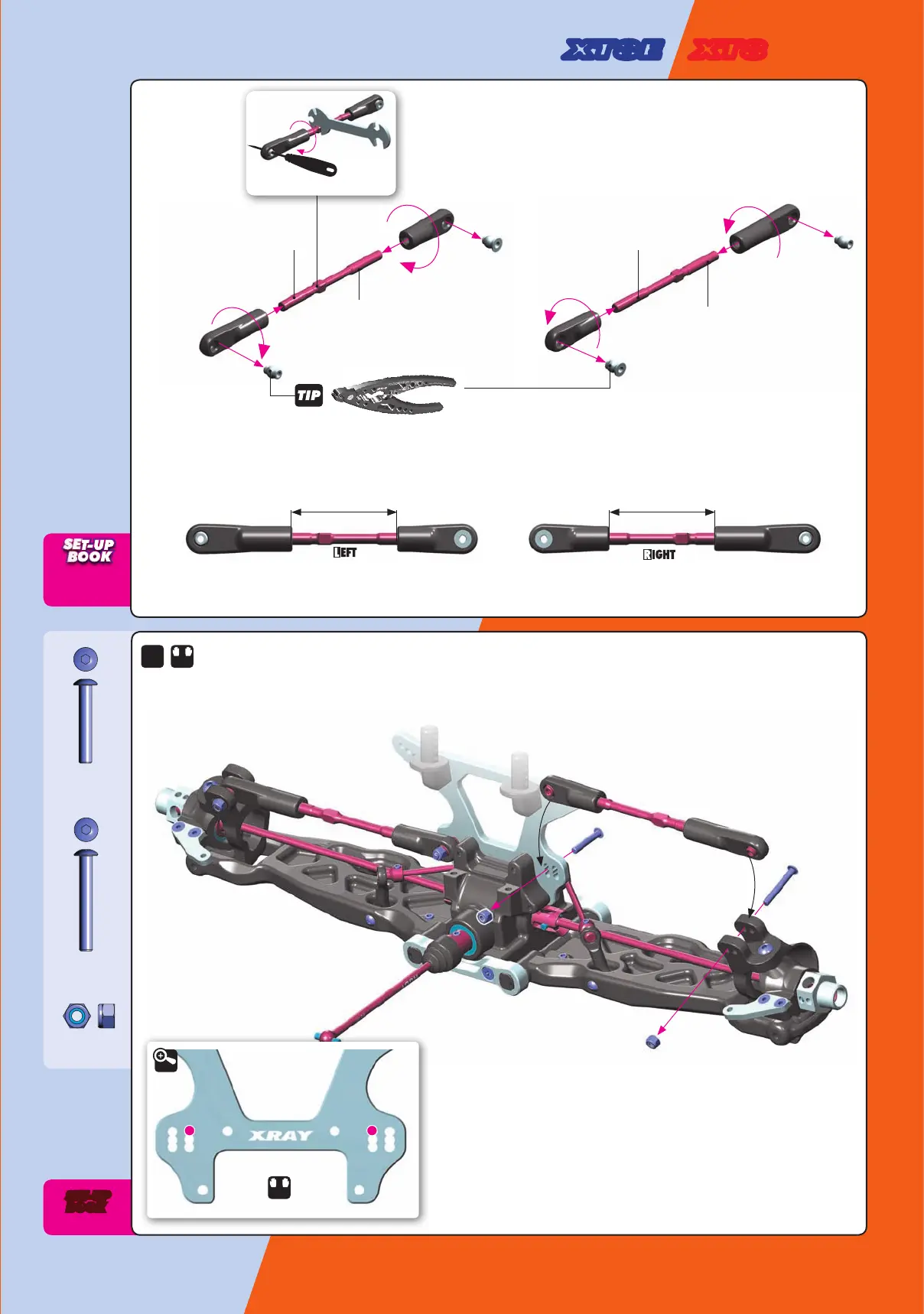

29
XT8XT8E
CAMBER
ROLL CENTER
L=R
2x
RIGHT
THREAD
RIGHT
THREAD
LEFT
THREAD
Use tools to tighten as shown.
Left thread Left threadRight thread Right thread
LEFT
THREAD
54mm 54mm
902322
SH M3x22
902318
SH M3x18
960030
N M3
3x22mm
3x18mm
6. FRONT SUSPENSION
BOOK
SET-UP
DETAIL
INITIAL SETTING
L=R
Install the pivot balls with Professional
Multi Tool (HUDY #183011).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Xray XT8 and is the answer not in the manual?

Xray XT8 Specifications

General IconGeneral
Scale1/8
4WD/2WD4WD
Width300 mm
Chassis MaterialAluminum
Shock TypeOil-filled
Height180mm
Gear TypeSpur Gear
