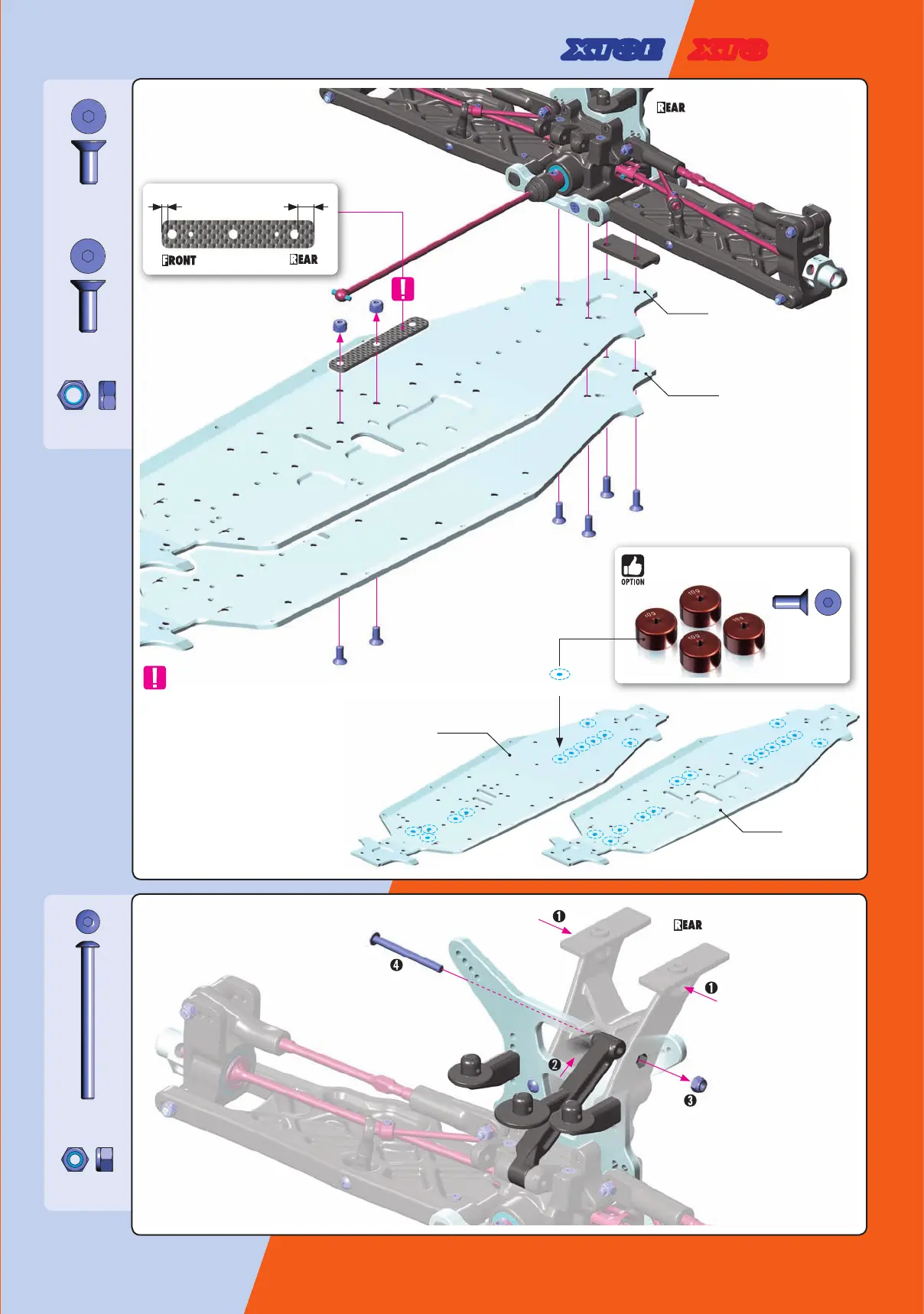

6. FRONT & REAR ASSEMBLY
902335
SH M3x35
960030
N M3
Push the top of the holder
with fingers together to insert
the brace with body post.
903412
SFH M4x12
960040
N M4
XT8E
XT8
NOTE ORIENTATION
NOTE ORIENTATION
During assembly, there is no need to check gear
mesh or diff play. In particular, do not check
gear mesh and diff play when the differential
is installed only in the gear box without the
suspension holders and without being mounted
to the chassis. All parts have specifically
designed play, and only when the car is fully
assembled will it have the proper amount of
play where necessary. Only once you build the
entire car, then you can check for free movement
of all rotational parts and drivetrain as well a
free non-binding operation of suspension parts.
903308
SFH M3x8
#293084
PRECISION BALANCING CHASSIS WEIGHT 10G (4)
Locations for weights
XT8E
XT8
To Next Page
