32
XT8
XT8E

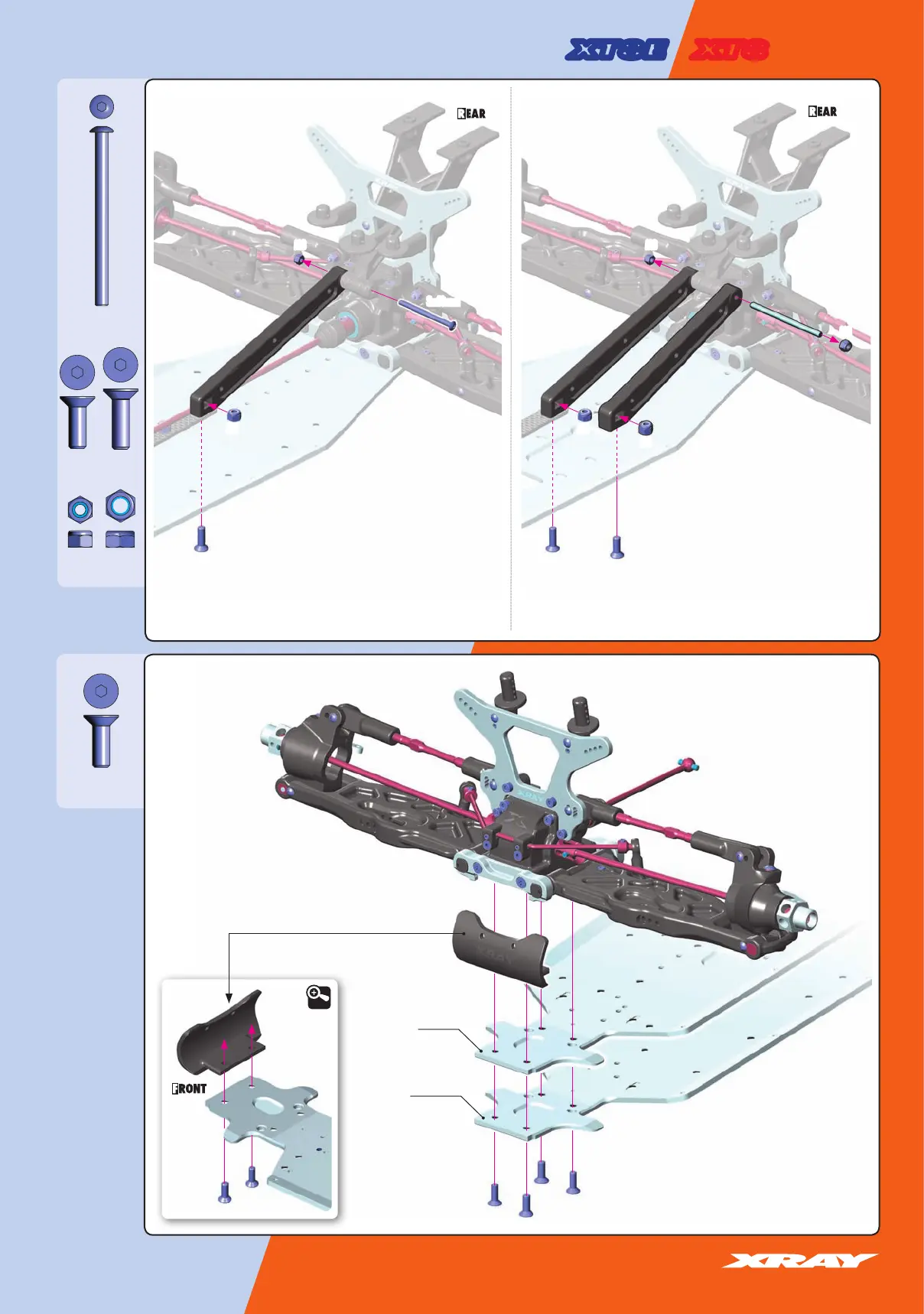

6.
FRONT
&
REAR
ASSEMBL
Y
903412
SFH M4x12
DETAIL
903412
SFH M4x12
903414
SFH M4x14
902340
SH 3x40
M4
M4
M3
M3
M3
M4
4x14mm
4x14mm
3x40mm
4x12mm
960030
N M3
960040
N M4
XT8E
XT8
XT8E
XT8
31
33
Table of Contents
Tools Required
4
Equipment Included
5
Center Differential
8
Front Transmission
10
Rear Transmission
12
Rear Suspension
18
Front Suspension
24
Front & Rear Assembly
30
Final Assembly
60
Throttle Linkage Adjustment
63
Troubleshooting Guide
66
Maintenance
66
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Xray XT8 and is the answer not in the manual?
Ask a question
Xray XT8 Specifications
General
Scale
1/8
4WD/2WD
4WD
Width
300 mm
Chassis Material
Aluminum
Shock Type
Oil-filled
Height
180mm
Gear Type
Spur Gear
