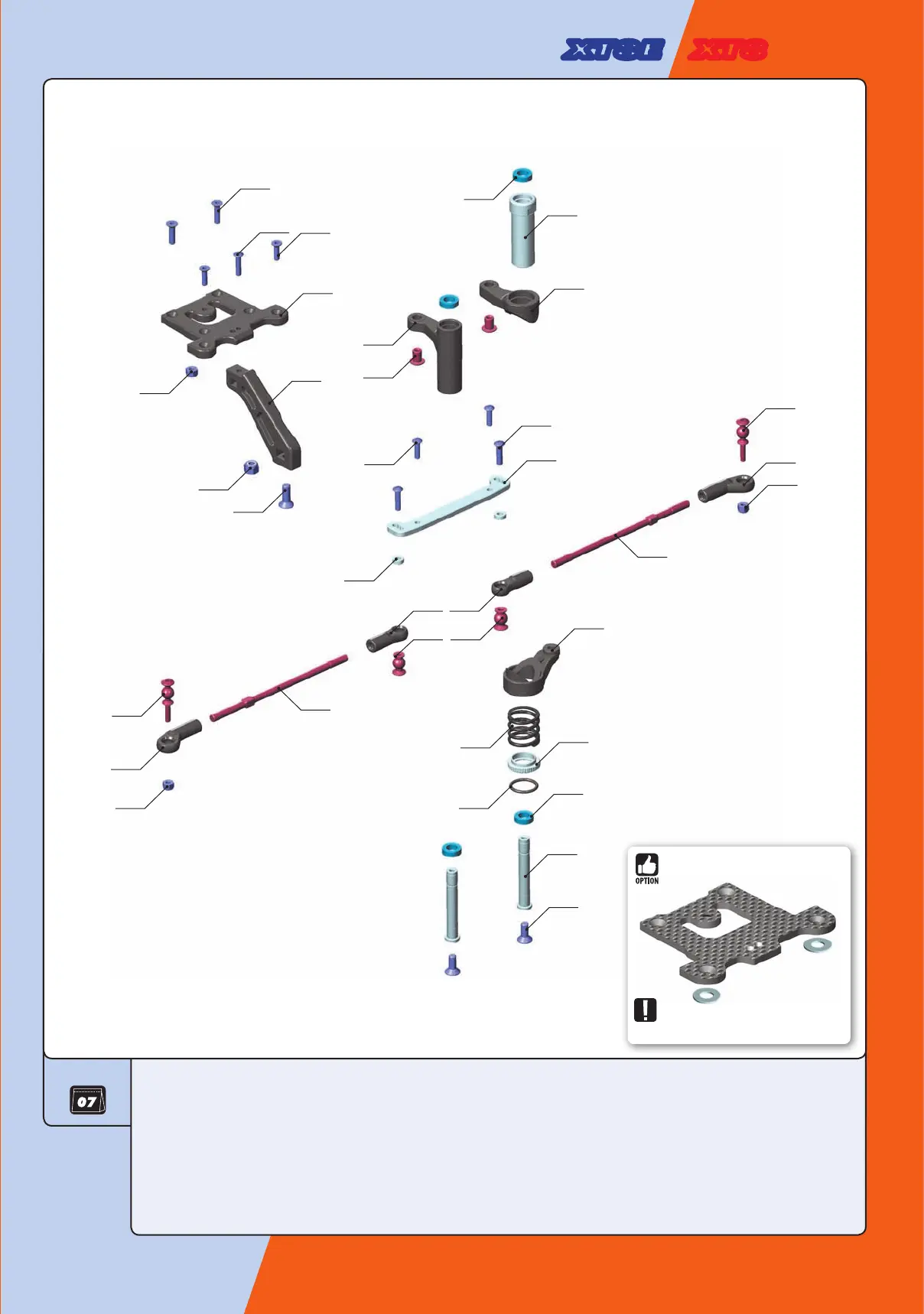

7. STEERING
303123 ALU SHIM 3x6x2.0MM (10)
351350 COMPOSITE UPPER PLATE WITH TWO BRACE POSITIONS
352084 COMPOSITE FRONT BRACE
352506 SERVO SAVER WITH CHASSIS LOCK & HARD SPRING - GRAPHITE - SET
352515 XT8 COMPOSITE SERVO SAVER - GRAPHITE
352561 SERVO SAVER SPRING PROGRESSIVE
352576 STEERING PLATE BUSHING (2)
352580 XT8 ALU STEERING PLATE - SWISS 7075 T6
352619 ADJ. TURNBUCKLE M4 L/R 91 MM - HUDY SPRING STEEL™ (2)
352653 BALL STUD 6.8MM WITH BACKSTOP - M3 (2)
352658 BALL STUD 6.8MM WITH BACKSTOP L=6MM - M3x8 (2)
352664 COMPOSITE STEERING BALL JOINT 6.8MM - V3 (2)
BAG
352666 COMPOSITE RELIEF STEERING BALL JOINT 6.8MM (2)
902308 HEX SCREW SH M3x8 (10)
902312 HEX SCREW SH M3x12 (10)
903310 HEX SCREW SFH M3x10 (10)
903312 HEX SCREW SFH M3x12 (10)
903410 HEX SCREW SFH M4x10 (10)
903412 HEX SCREW SFH M4x12 (10)
940610 BALL-BEARING 6x10x3 RUBBER SEALED - OIL (2)
960030 NUT M3 (10)
960040 NUT M4 (10)
970121 O-RING 12.1 x 1.6 (10)
#351351
GRAPHITE UPPER PLATE
Must be used also 2pcs of #357256 shim 6x13x1mm.
NOTE

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
