35
XT8XT8E
903312
SFH M3x12
903410
SFH M4x10
NOTE
ORIENTATION

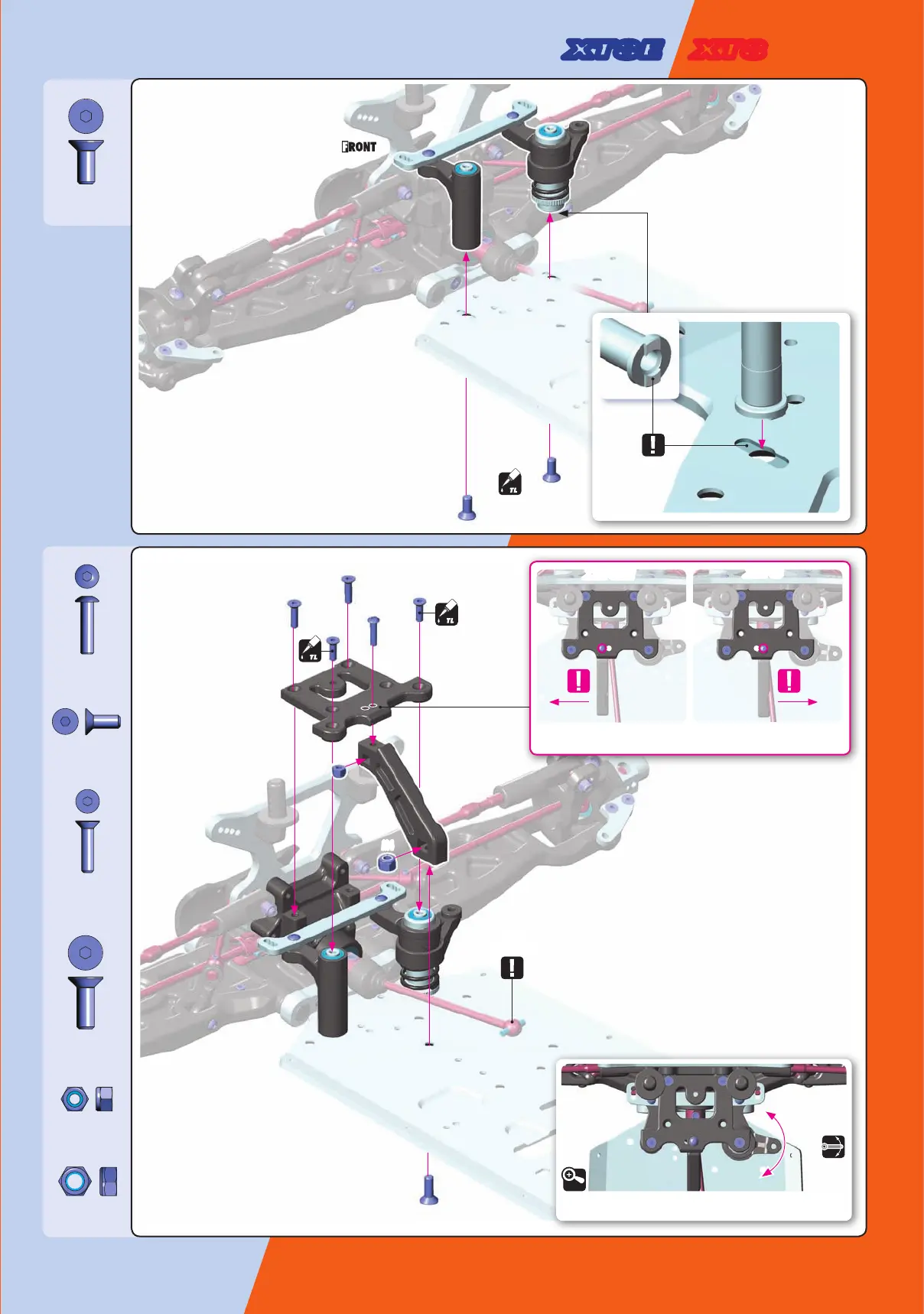

7. STEERING
902312
SH M3x12
960030
N M3
4x12mm
3x10mm
3x12mm
3x10mm
3x12mm
3x12mm
NOTE
ORIENTATION
Check for free
movement.
After the top deck assembly check for free movement of steering system.
DETAIL
903412
SFH M4x12
960040
N M4
903310
SFH M3x10
M3
M4
XT8E
XT8
USE ONLY RIGHT HOLEUSE ONLY LEFT HOLE
IMPORTANT!
