Xray XT8 User Manual

37
XT8
#354113
SUPER-LIGHTWEIGHT VENTILATED BRAKE DISK -
PRECISION-GROUND (2)
8. CENTER DIFF & BRAKE
BAG
354011 CENTER DIFF MOUNTING PLATE - HIGHER - SET
354033 COMPOSITE 2-SPEED HOLDER PLATE (2)
354040 BRAKE CAM POST & ROD (2+2)
354057 GRAPHITE CENTER DIFF MOUNTING PLATE
354073 BRAKE CAME ROD (1+1)
354080 COMPOSITE BUSHING FOR DIFF MOUNTING PLATE (2)
354110 VENTILATED BRAKE DISK - LASER CUT - PRECISION-GROUND
354131 GLUED BRAKE PAD SET-ULTRA EFFICIENT (4)
372176 SPRING 4.25 COILS 3.6x6x0.4MM; C=1.5 - GOLD (SOFT) (2)
901304 HEX SCREW SB M3x4 (10)
902316 HEX SCREW SH M3x16 (10)
902330 HEX SCREW SH M3x30 (10)
903308 HEX SCREW SFH M3x8 (10)
903414 HEX SCREW SFH M4x14 (10)

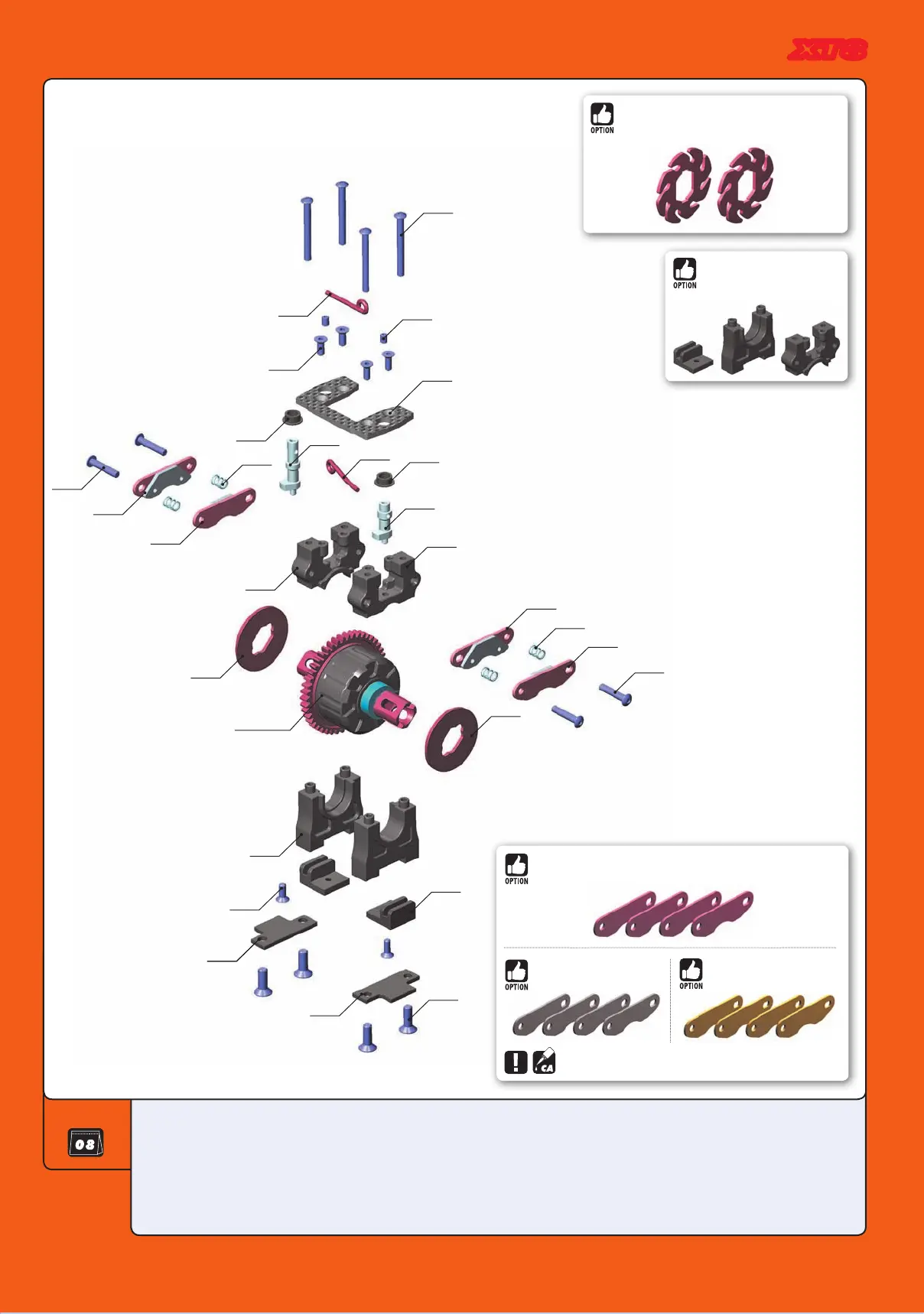

CENTER DIFF
354110
354110
354131
354131
372176
372176
354040
354040
354057
903308
901304
354073
354073
902330
354011
354011
902316
354011
354011
903414
902316
354080
354080
354033
354033
354131
354131
903308
#354132
BRAKE PAD “SLS” (4)
#354121
STEEL BRAKE PAD - LASER CUT (4)
It is necessary to glue the brake pad with strong CA glue suitable for steel.
#354130
BRAKE PAD FIBER (4)
#354011-G
CENTER DIFF MOUNTING PLATE
SET - HIGHER - GRAPHITE

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
