Xray XT8 User Manual

50
902325
SH M3x25
903410
SFH M4x10
960040
N M4

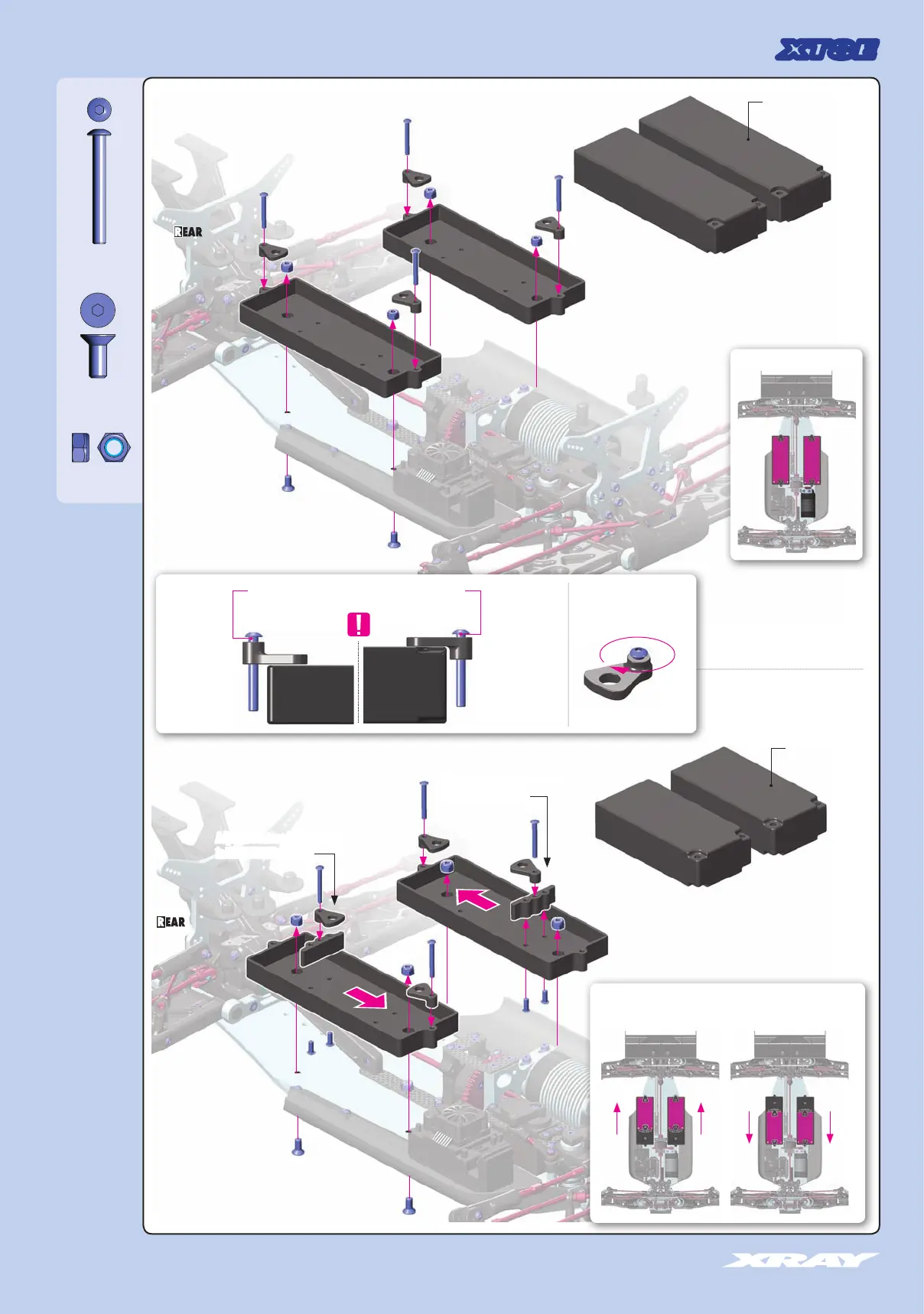

10. ELECTRONICS (Saddle Pack Alernative)
XT8E
ALTERNATIVE 1
ALTERNATIVE 2
(INITIAL SETTING)
CONFIGURATION FOR STANDARD BATTERY PACK
CONFIGURATION SHORT BATTERY PACK
SETTINGS WITH BALANCE POSITION
Adjustable battery holder setting
in REARWARD position.
Adjustable battery holder setting
in FRONTWARD position.
Standard Battery pack
(NOT INCLUDED)
Short Battery Pack
(NOT INCLUDED)
REARWARD POSITION
FRONTWARD POSITION
ADJUSTABLE BALANCE
ORIENTATION FOR
STANDARD BATTERY
PACK
ORIENTATION FOR
LOW BATTERY
PACK
To ensure correct functioning of the battery holder, do not
overtighten the screw; the holder must be able to move.
HEIGHT ADJUSTMENT
1 turn = 0.5mm
STANDARD BALANCE

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
