Xray XT8 User Manual

51
BAG
BAG

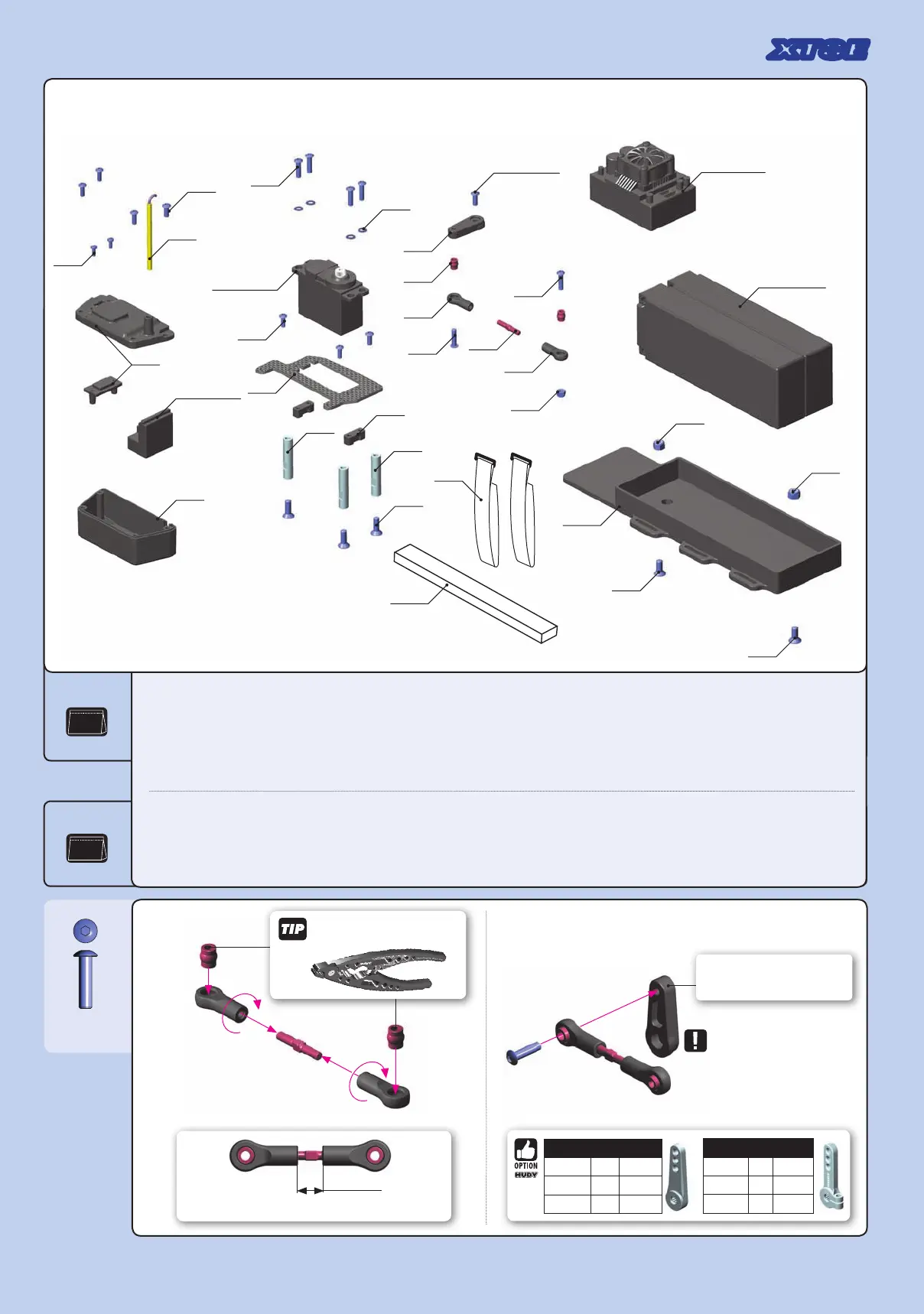

10. ELECTRONICS (Brick Alternative)
336000 COMPOSITE RECEIVER CASE - V2
336060 RECEIVER SWITCH - SET (OPTION)
356108 XB8E/XT8E BRICK BATTERY GRAPHITE SERVO HOLDER
356152-H XB8E/GTXE/XT8E COMPOSITE BATTERY PLATE – HARD
356160 VELCRO BATTERY STRAP 20x300MM (2)
902308 HEX SCREW SH M3x8 (10)
903410 HEX SCREW SFH M4x10 (10)
907206 SCREW PHILLIPS 2x6 (10)
960040 NUT M4 (10)
302630 ADJ. TURNBUCKLE L/R 20 MM - HUDY SPRING STEEL™ (2)
306310 ANTENNA TUBE (2)
352460 PIVOT BALL 5.8 (10)
352670 SERVO BALL JOINT 5.8MM (4)
356120 STEERING SERVO MOUNT - SET
356194 ALU MOUNT FOR RECEIVER BOX
356200 BRAKE/THROTTLE ARMS & STEERING SERVO ARMS - SET
902308 HEX SCREW SH M3x8 (10)
902312 HEX SCREW SH M3x12 (10)
902314 HEX SCREW SH M3x14 (10)
903412 HEX SCREW SFH M4x12 (10)
960030 NUT M3 (10)
961032 WASHER S 3.2 (10)
XT8E
902312
SH M3x12
NOTE
ORIENTATION
Use appropriate servo arm:
K - (23T) H - (24T) F - (25T)
356200
356120
356194
356194
903412
Receiver
(NOT INCLUDED)
336000
336000
902308
961032
306310
Speed Controller
(NOT INCLUDED)
Servo Screw
(NOT INCLUDED)
LiPo Battery Pack
(NOT INCLUDED)
960040
960040
907206
356160
903410
903410
902312
Steering Servo
(NOT INCLUDED)
902308
356108
352460
352670
902312
302630
352670
960030
902314
The length of the linkages varies according to the type of servo.
approx. 7mm
Install the pivot balls with Professional
Multi Tool (HUDY #183011).
10.1
10.3
Radio case orientation for the
BRICK ALTERNATIVE
ALU SERVO HORNS
#293501 23T OPTION
#293502 24T OPTION
#293503 25T OPTION
CLAMP ALU SERVO HORNS
#293407 23T OPTION
#293408 24T OPTION
#293409 25T OPTION
356152-H
356152-H

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
