11.1
352460 PIVOT BALL 5.8 - V3 (10)
358018 COMPOSITE SET OF SHIMS FOR SHOCKS - V2 (2)
358020 COMPOSITE SHOCK PARTS
358032 SHOCK PISTON SET 8-HOLE (1.2; 1.3) 10-H. (1.1MM) - DELRIN - V2
358033 COMPOSITE SHOCK 6-HOLE PISTON SET (1.2; 1.3; 1.4MM) - DELRIN - V2
358040 HARDENED SHOCK SHIMS (4)
358041 STEEL SHOCK BUSHING (2)
358043 COMPOSITE SHOCK BUSHING & SHIM (2+2)
358055 ALU SHOCK CAP NUT WITH 4 VENT HOLES - BLACK COATED (2)
358074 FOLDING SHOCK BOOT (4)
358087-S SHOCK RUBBER MEMBRANE CELL - SOFT (4)
358124 ALU FRONT SHOCK BODY - HARD COATED - V2 (2)
358142 ALU SHOCK BODY NUT FOR SHOCK BOOT (2)

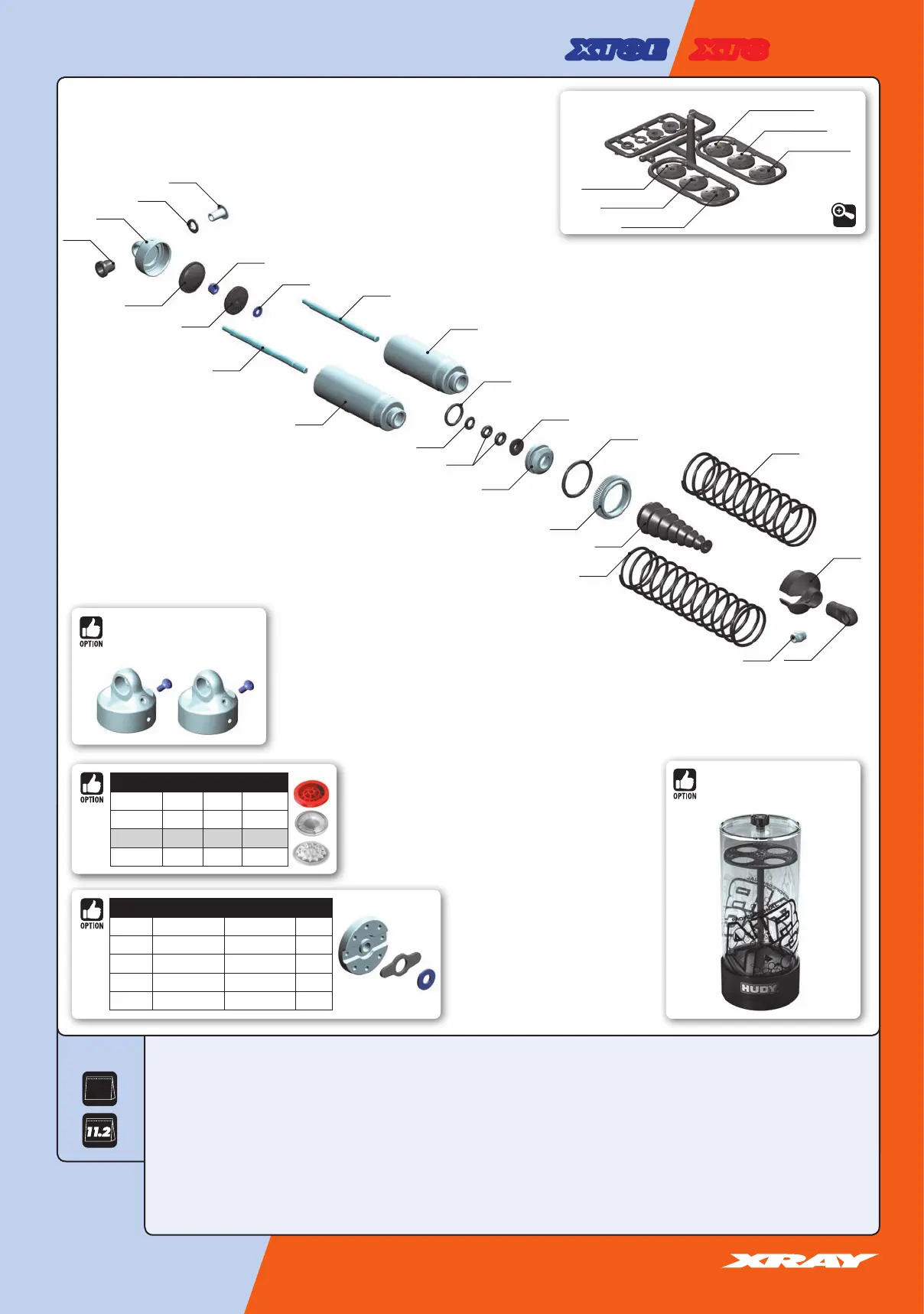

11. SHOCK ABSORBERS
358150 ALU SHOCK BODY ADJ. NUT (2)
358165 FRONT SHOCK SHAFT 61mm (2)
358225 ALU REAR SHOCK BODY - HARDCOATED (2)
358267 REAR SHOCK SHAFT (2)
960026 NUT M2.5 - SHORT (10)
970100 O-RING 10 x 1.5 (10)
970180 O-RING 18 x 1.8 (10)
971034 SILICONE O-RING 3.5x2 (10)
358365 XRAY FRONT SPRING 80MM - 3 DOTS (2)
358385 XRAY REAR SPRING 90MM - 3 DOTS
358041
358165
352460
358267
358043
358043
358087-S
960026
358040
358124
358225
970100
971034
970180
358074
358018
358018
358142
358150
358365
358385
90mm
80mm
358055
358032
358033
358020
358020
2-WAY FLOW DELRIN SHOCK PISTON (4pcs)
#358027 5-HOLE (1.5mm) 2-HOLE (1.0mm) OPTION
#358028 6-HOLE (1.3mm) 2-HOLE (1.1mm) OPTION
#358029 6-HOLE (1.4mm) 2-HOLE (1.1mm) OPTION
#358027 8-HOLE (1.2mm) 2-HOLE (1.2mm) OPTION
#358027 8-HOLE (1.3mm) 2-HOLE (1.2mm) OPTION
SHOCK RUBBER MEMBRANE (4)
#358084 RIBBED MEDIUM OPTION
#358084-S BRIBBED SOFT OPTION
#358087-S CELL SOFT INCLUDED
#358087-M CELL MEDIUM OPTION
#358054
XB8 ALU SHOCK CAP NUT WITH
VENT HOLE - BLACK COATED (2)
#104005
HUDY AIR VAC - VACUUM PUMP
- 1/8 OFF-ROAD
10 holes/ø1.1mm
6 holes/ø1.2mm
8 holes/ø1.2mm
6 holes/ø1.4mm
8 holes/ø1.3mm
6 holes/ø1.3mm
DETAIL
PISTONS
