Xray XT8 User Manual

55
XT8
907206
SP M2x6
903412
SFH M4x12
960030
N M3
902314
SH M3x14
902310
SH M3x10
902312
SH M3x12
902314
SH M3x14
961032
S 3.2

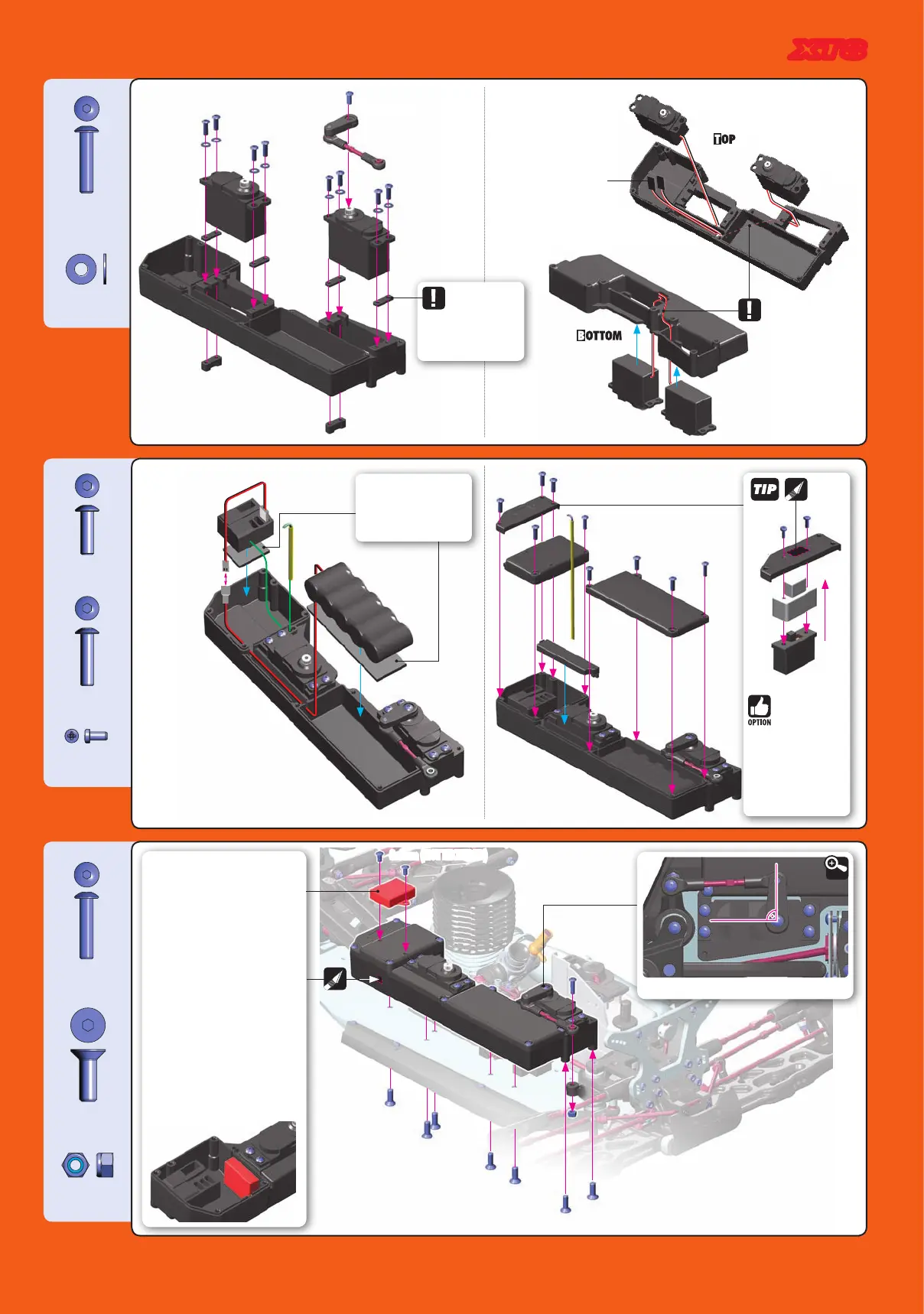

10. RADIO CASE
Use foam to cushion the
inside of the radio case so
the receiver and battery
cannot vibrate or move.
Plug the connectors into
the receiver in Step 2.
Use the shims only if the
servo is too high and
extends from the case.
NOTE
NOTE
ORIENTATION
SWITCH #356050
When receiver switch is
used, use hobby knife to
CAREFULLY remove the
material from the cover
and mount the switch.
CUT
2x6
3x10mm
3x10mm
3x12mm
3x6mm (NOT INCLUDED)
Servo screw
(NOT INCLUDED)
Personal transponder (NOT INCLUDED)
#902306 Screws (NOT INCLUDED)
Personal transponder can be placed on
the top of the radio box or inside of the
radio box.
ALTERNATIVE 1
When the transponder is placed at
the top of the radio box, cut out some
material from the radio box in order
to allow the transponder wire to come
inside.
ALTERNATIVE 2
Place the transponder inside of the
radio box by using double-sided tape.
.........................................
step 1
step 2
Note orientation of servo arm when servo is at neutral.
DETAIL

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
