Page #62 background imageLoading...
Page #62 background image
62
XT8
903312
SFH M3x12
960030
N M3
901302
SB M3x2.5
961022
S 2.2

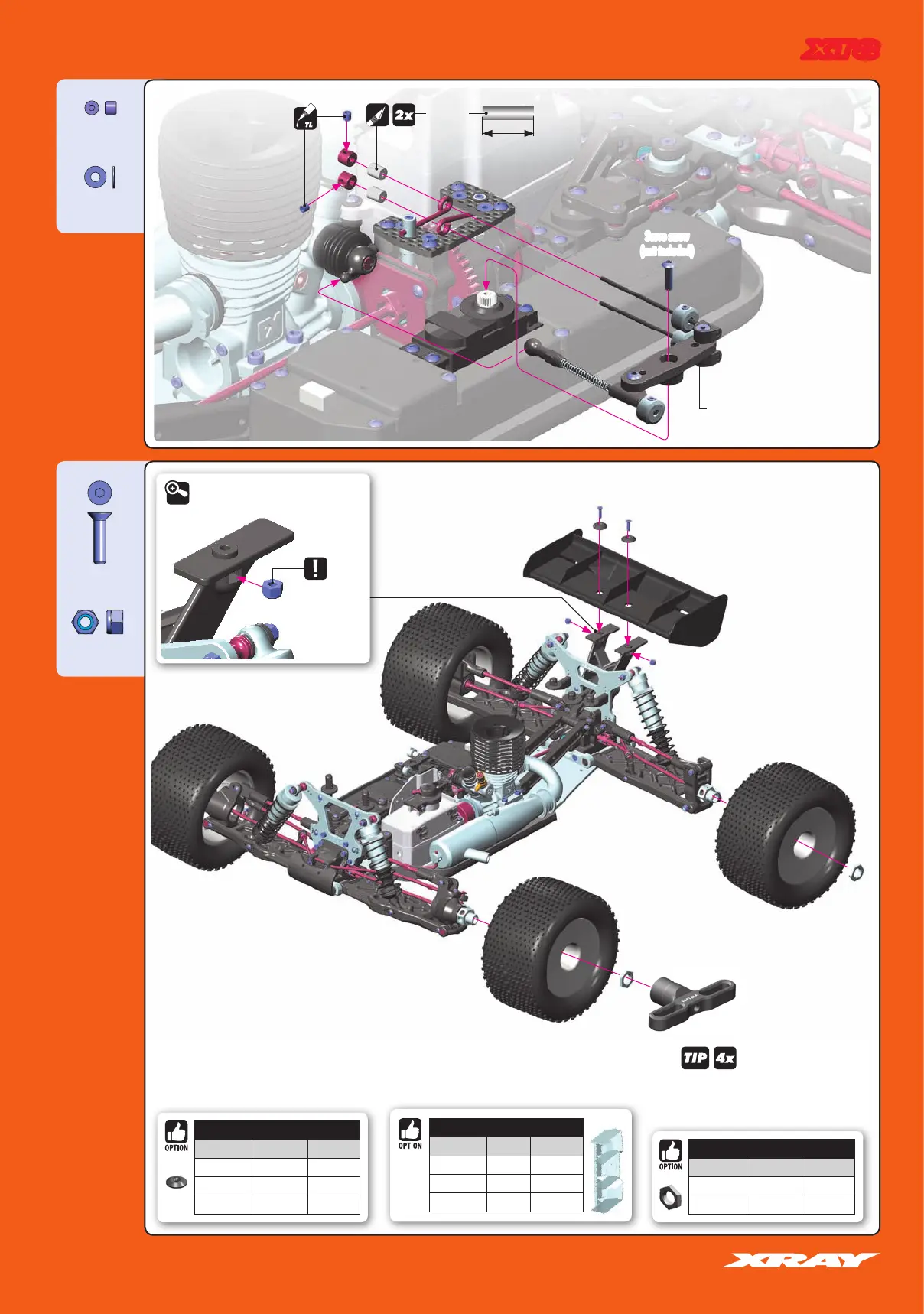

12. FINAL ASSEMBLY
To tighten the setscrew you can also use the
HUDY 17mm Wheel Nut Tool #107570.
NOTE
ORIENTATION
DETAIL
SILICONE
TUBING
8mm
Servo screw
(not included)
Ensure that the servo is in neutral position
before attaching the servo horn.
WING SHIMS
#353565 COMPOSITE INCLUDED
#293561 ALU OPTION
#293561-O ALU OPTION
#353561 ALU OPTION
WHEEL NUTS
#355261 OPEN INCLUDED
#293560 COVERED OPTION
#355265 COVERED OPTION
WINGS
#353513-K BLACK INCLUDED
#353513 WHITE OPTION
#353513-Y YELLOW OPTION
#353512 LEXAN
®
OPTION
