Xray XT8 User Manual

64
SHOCK ABSORBERS
XT8E
353513-K
12
BAG
351310 FOAM WASHER FOR BODY POSTS (4)
353565 COMPOSITE REAR WING SHIM - BLACK (2)
355261 WHEEL NUT - RIBBED - HARDvCOATED (2)
358047 STEEL SCREW SHOCK PIVOT BALL WITH HEX (2)
359400 BODY CLIP (10)
353565
902318
902319
358047
Wheels / Inserts / Tires
(NOT INCLUDED)
Body
(NOT INCLUDED)
358047
355261
960030
960030
960030
960030
REAR
SHOCK
FRONT
SHOCK
903312
359400
351310

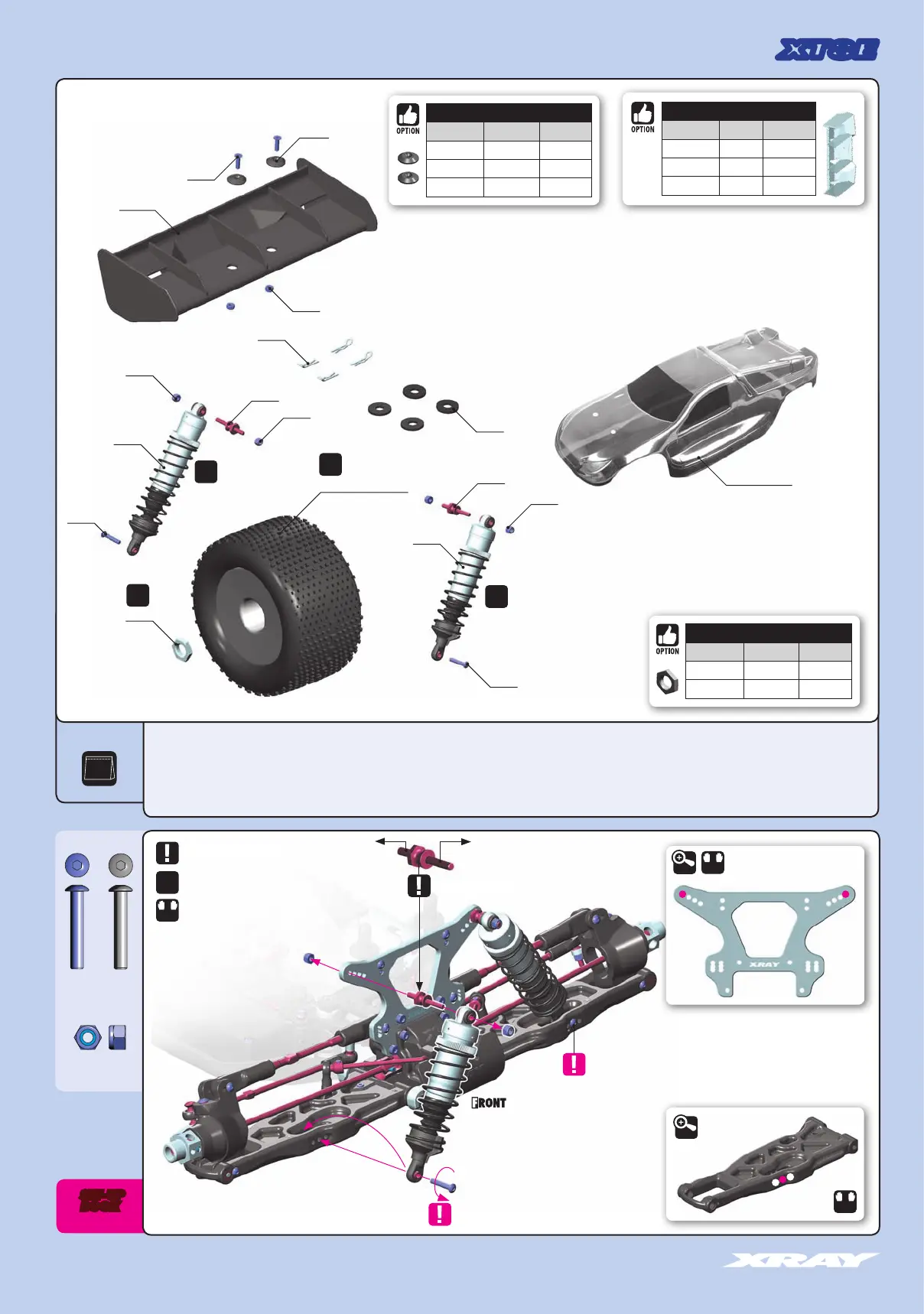

12. FINAL ASSEMBLY
2x
2x
WHEEL NUTS
#355261 OPEN INCLUDED
#293560 COVERED OPTION
#355265 COVERED OPTION
4x
4x
WING SHIMS
#353565 COMPOSITE INCLUDED
#293561 ALU OPTION
#293561-O ALU OPTION
#353561 ALU OPTION
902318 HEX SCREW SH M3x18 (10)
902319 HEX SCREW SH M3x18 - LEFT THREAD (10)
903312 HEX SCREW SFH M3x12 (10)
960030 NUT M3 (10)
353513-K REAR WING - IFMAR - BLACK
WINGS
#353513-K BLACK INCLUDED
#353513 WHITE OPTION
#353513-Y YELLOW OPTION
#353512 LEXAN
®
OPTION
FRONT SHOCKS (SHORT)
NOTE ORIENTATION
SHORTER
LONGER
On the front right arm use the SILVER M3x18
screw - this screw has LEFT THREAD.
Use STANDARD
M3x18 screw
3x18mm
L=R
2x
INITIAL SETTING
DETAIL
902319
SH M3x18
LEFT thread
960030
N M3
902318
SH M3x18
L=R
BOOK
SET-UP
DETAIL
INITIAL SETTING
L=R

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
