3.2 - Mounting the Radiator
Note: It is advisable to temporarily mount the radiator before you
connect the tubing. This will make it easier to measure and cut
the tubing to the correct length.
The radiator can be mounted in a variety of places inside or
outside of your case. The position depends on the amount of
room, the size of fan mounts available and the style of radiator in
the kit.
The radiator is designed to be mounted to a 120mm fan mount but
is also supplied with brackets for mounting on a 80mm mount or
mounting externally on a flat surface. (See page 6)
The radiator can be positioned either way up and both tubing
connectors can be used for either the inlet or the outlet.

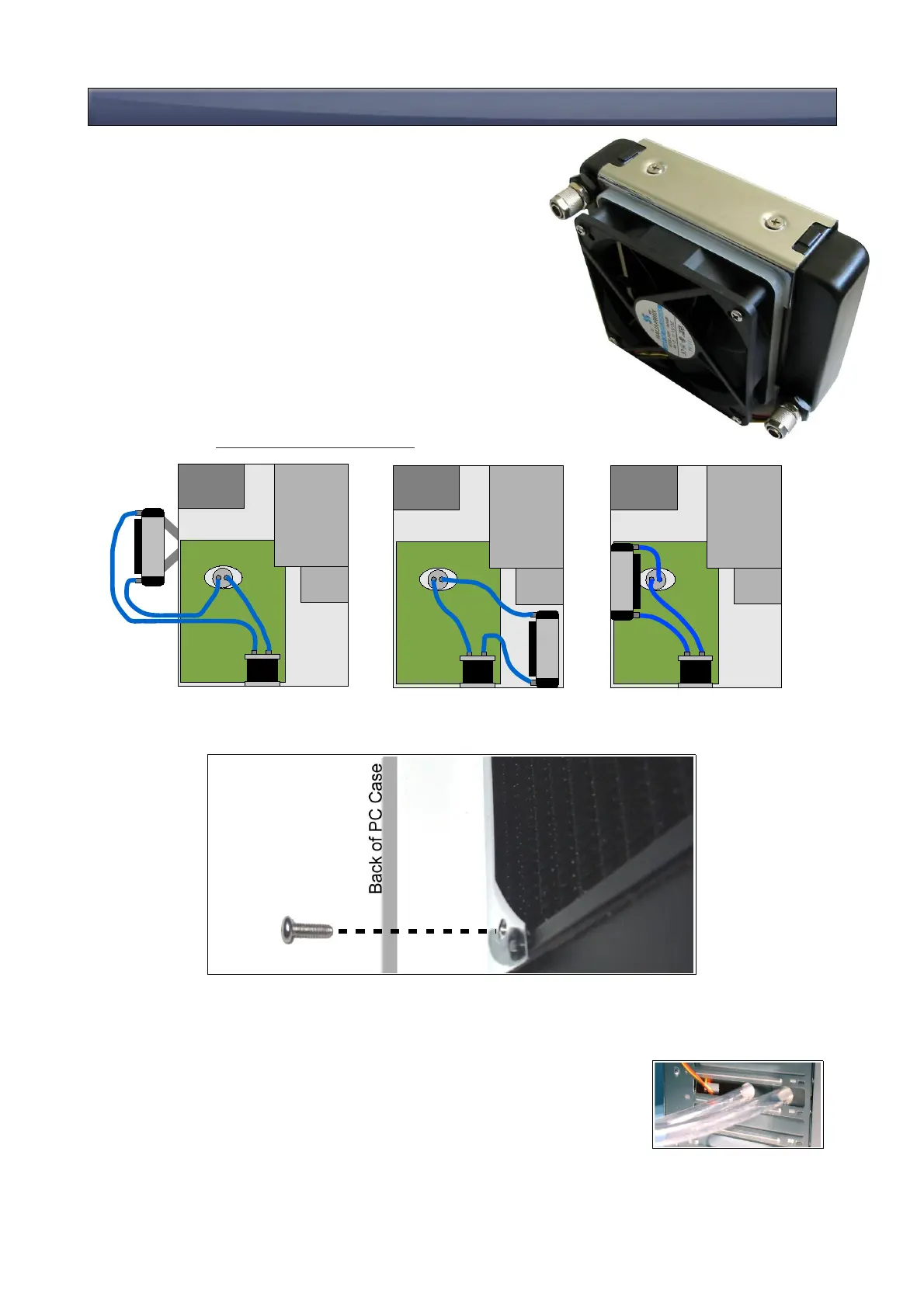

Example radiator positions
The radiator can be secured to a 120mm fan mount by using the provided 10mm screws.
Once the radiator has been mounted and you are happy with its position, measure and cut the tubing to size.
After the tubing has been cut to size remove the radiator from the case.
Note: If mounting the radiator externally you will need to route the tubing through
the back plate before connecting all of the fittings.
Mounting the radiator using the 80mm adapter brackets is detailed on Page 6.
Page 5/12
To Next Page
