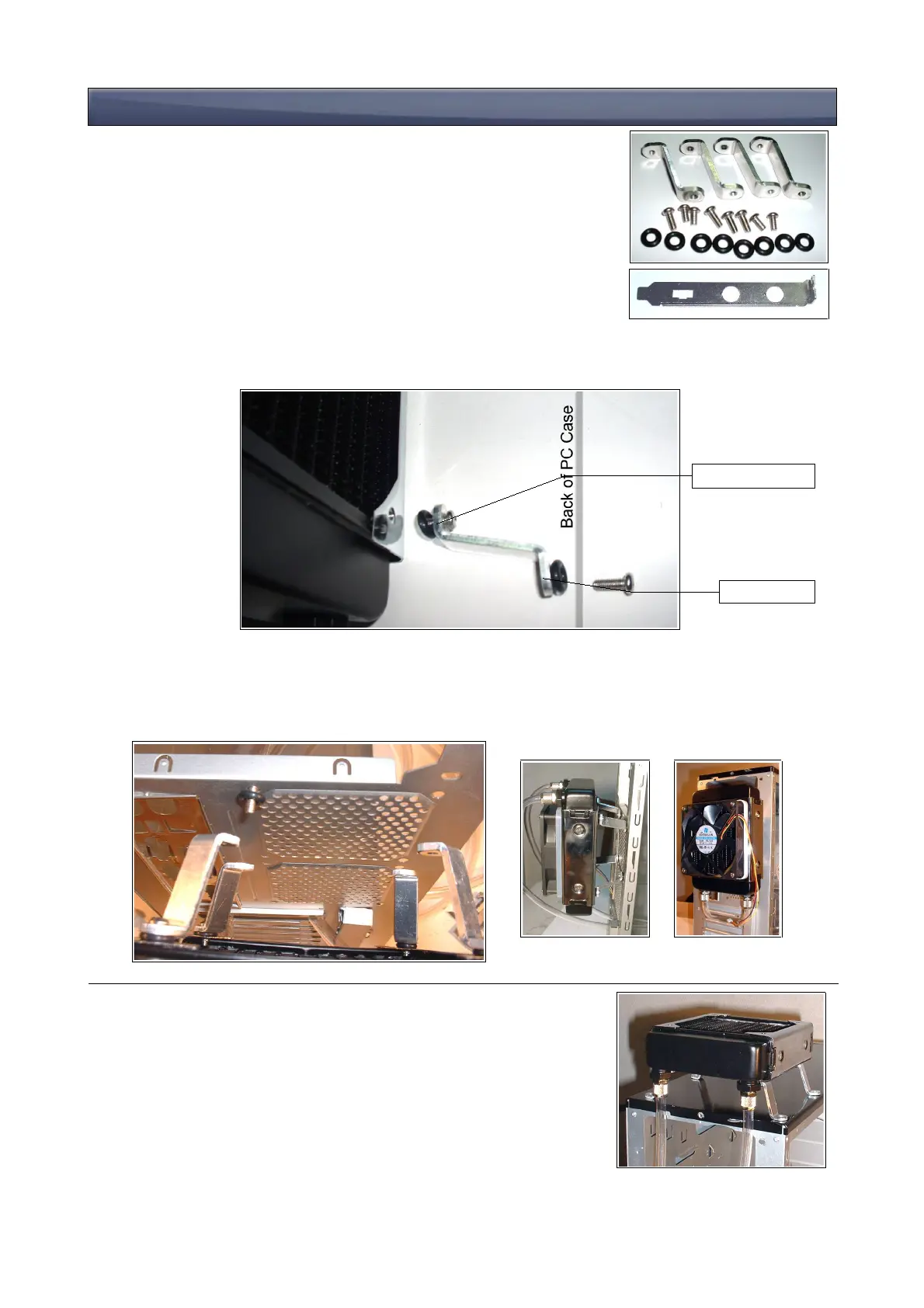

3.3 - Installing the 80mm adapter brackets
The X2O water-cooling kit radiator is designed to be mounted in most PC
cases without the need for modification or cutting. If no 120mm mounts are
available in your case you should use the pictured brackets to mount the
radiator to an 80mm fan mount.
If mounting the radiator externally, a back plate is provided for routing the
tubing and power cable back into the case.
1. Place the radiator fan on a flat surface and attach the four brackets to the
chrome shroud using the provided screws and rubber washers.
Radiator < Washer < Non-threaded end of bracket < small screw
2. Line up the radiator and four mounts to the 80mm fan mount. Use the four longer screws to fix the mounts
to the PC case.
Threaded end of bracket < Washer < Case panel < Longer screw
Mounting the radiator on a flat panel
The 80mm adapter brackets can also be turned around and used to mount
the radiator externally on a flat panel. Mounting in this way will require
some modification of the case to secure the radiator.
Note: Make sure the radiator is firmly secured to avoid rattling and vibrations
Page 6/12
Screw thread
No Screw thread
