DP224/6 Operators Manual Page 15

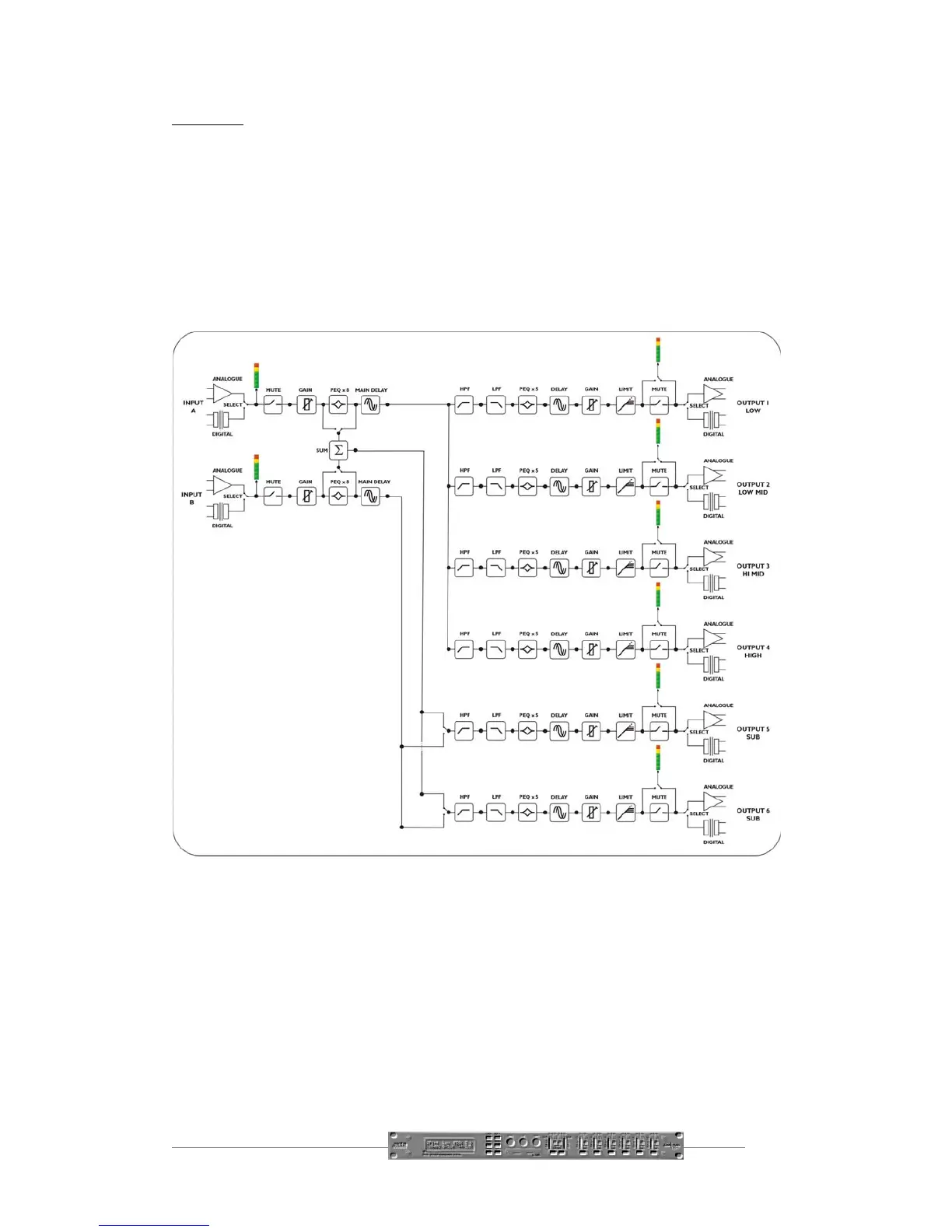

4 way + 2
This format feeds input A to outputs 1, 2, 3, and 4 designated low, lo-mid, hi-mid and
high respectively. Outputs 5 and 6 are configured as auxiliaries, with their source
being either input B, or the sum or inputs A and B. The choice of pre or post input
EQ for the sum signal is only offered if outputs 5 and/or 6 are chosen to feed form
the sum. This configuration also allows all the input EQ to be moved to input A,
giving 16 bands of fully parametric EQ. If there does not appear to be any EQ on
input B, this will be why.
