Page 58 DP226 Operators Manual

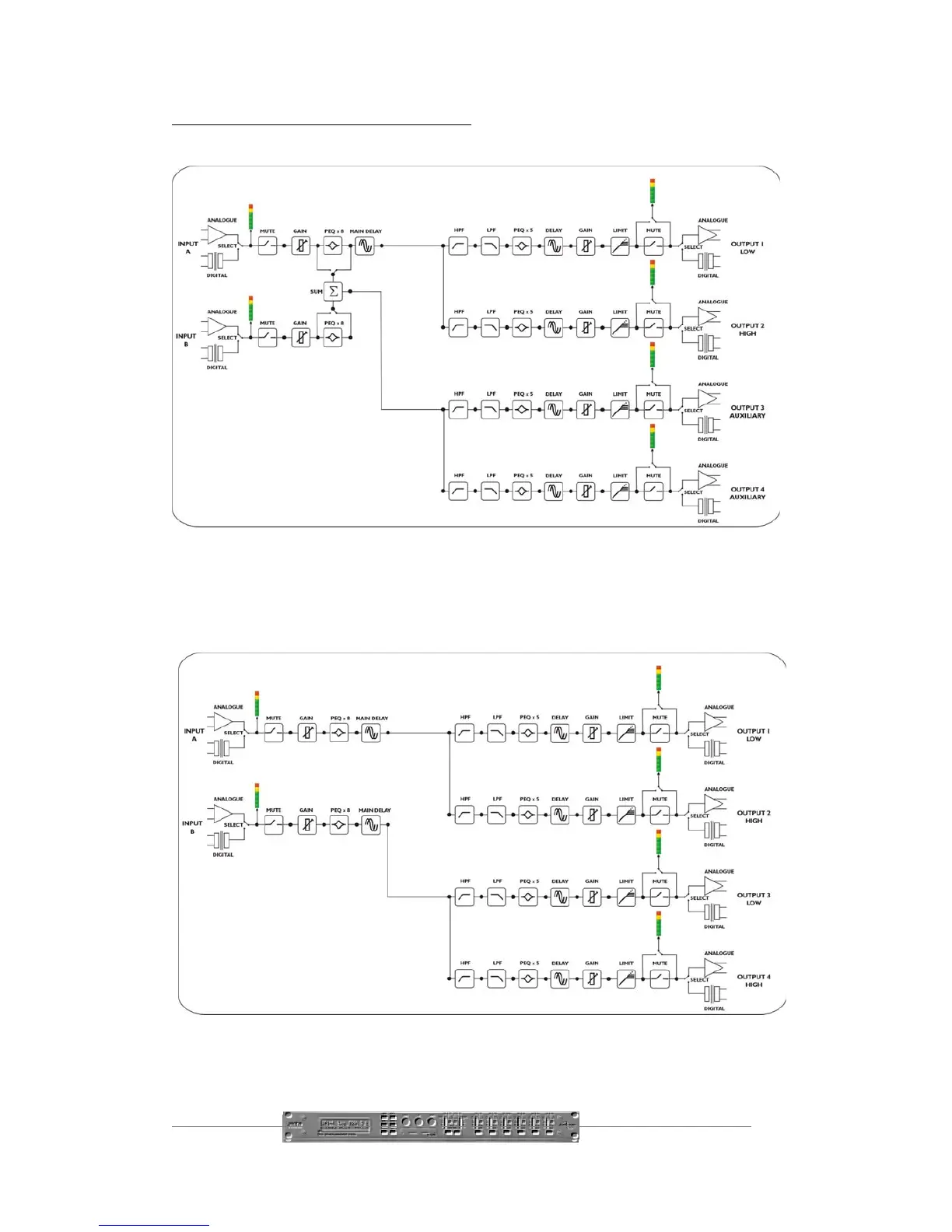

Appendix 6: DP224 Crossover Configurations

Single channel 2 way with 2 auxiliaries, fed from either input B, or the sum of A & B.

2 way crossover, which may be configured to operate in stereo.
