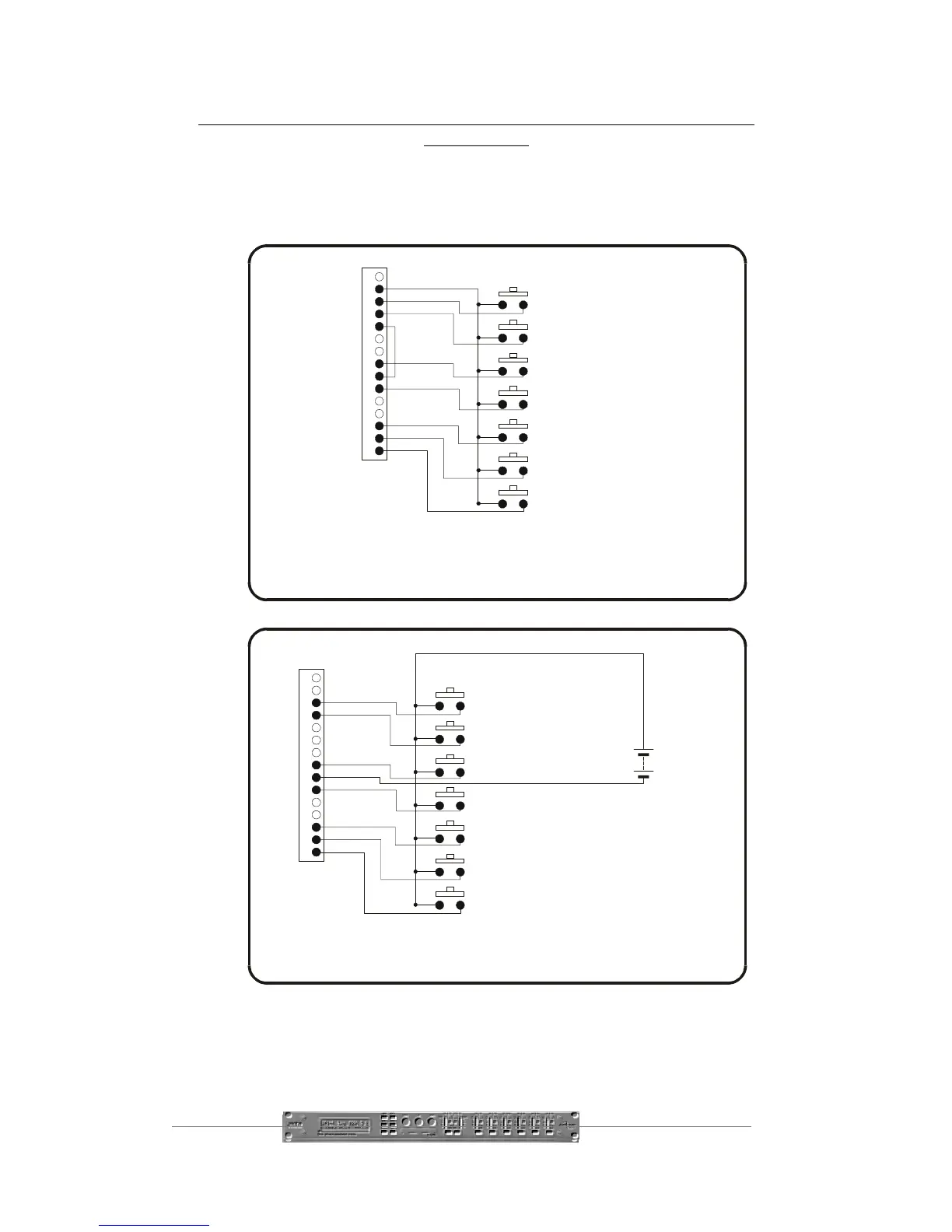

Examples of two typical interfaces that may be used to operate the interface in
‘Simple’ mode.
15
1
3
5
6
7
8
2
9
10
11
12
13
14
4
Connection using crossover’s own power supply.
Connect pin 5 to pin 9.
Momentary Action
Switch (Mem #01)
Momentary Action
Switch (Mem #07)
15-way D-type
Connection using external battery supply (9 volt).
15
1
3
5
6
7
8
2
9
10
11
12
13
14
4
Momentary Action
Switch (Mem #01)
Momentary Action
Switch (Mem #07)
+9volts
15-way D-type
