Xterra ERG400 User Manual

7
ERG400 Rower

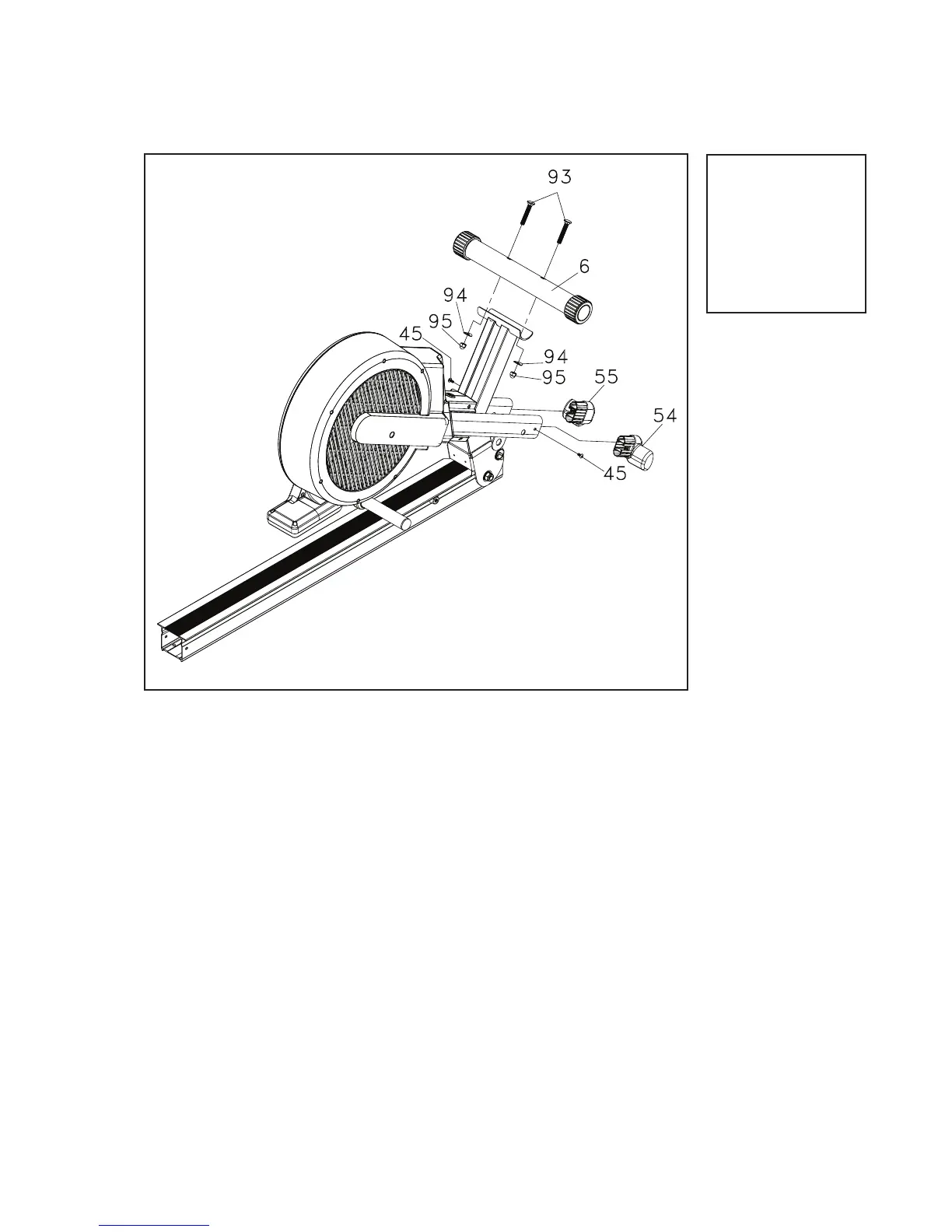

1. Mount the Front Stabilizer (6) onto the Main Frame (1) by using two
Carriage Bolts (93) going through Front Stabilizer (6) and Main Frame
(1), two Curved Washers (94) and one Cap Nut (95). Tighten up with
12/14mm open end wrench.
2. Install right and left Wheel Covers (54, 55) on twin tube ends of the
Main Frame, be aware of not to mixed up between left and right, and
use Combination M5 Allen Wrench & Phillips Head Screw Driver (97) to
tighten with two Phillips Head Screws (45)
ERG400 Assembly Instructions
Hardware Step 1
Stabilizer Tubes & Wheel Covers
#93. 3/8” x 59mm
Carriage Bolt (2 pcs)
#94. 3/8” x 23 x 1.5T
Curved Washer
(2 pc)
#95. 3/8” x 12.5T
Cap Nut
(2 pcs)
1
