4
ERG700 Rower

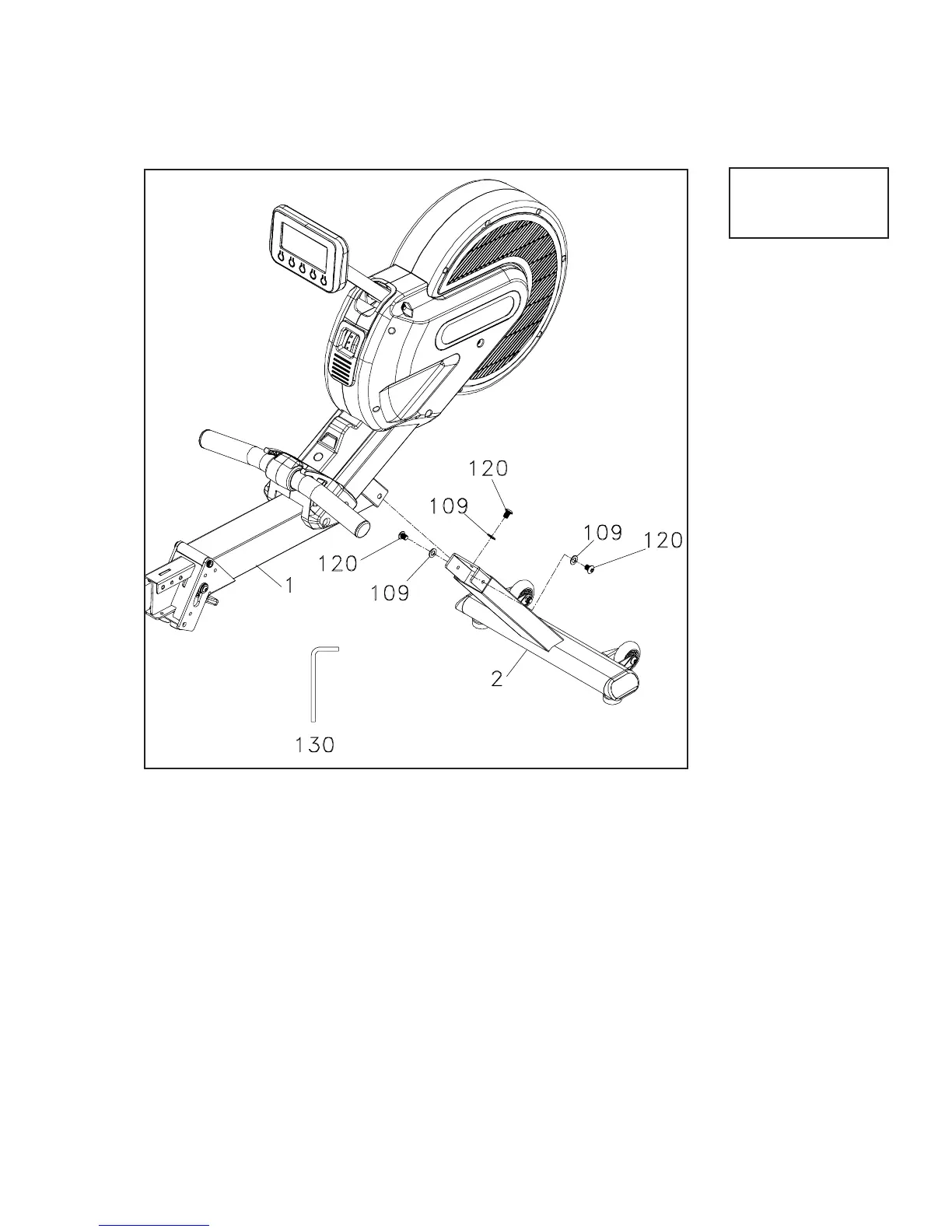

1. Use the WRENCH (130) to tighten 3 BOLTS (120) together
with 3 FLAT WASHERS (109) to secure the MAIN FRAME
(1) and FRONT STABILIZER (2) together. There is a bolt on
each side and one on the front.
ERG700 Assembly Instructions
Attaching the Front Stabilizer
1
3 Flat Washer (#109)
3 Bolt (#120)
Hardware Step 1
