Xterra FB150 User Manual

FB150 Folding Bike
11
Operation of Your Console

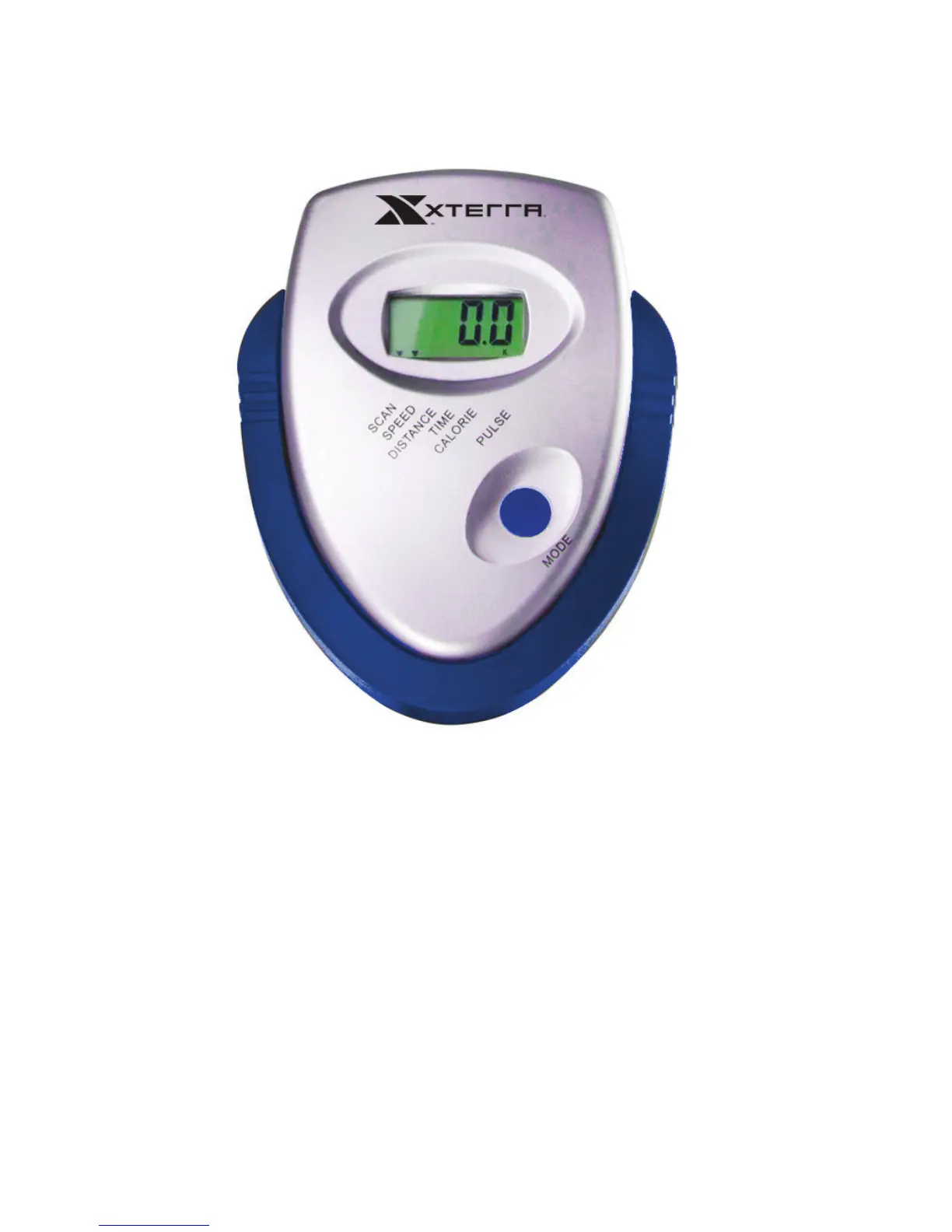

FB150 Console
FUNCTIONAL BUTTON:
MODE – Push down to select functions.
– Push down to reset time, distance, calories, ODO, and pulse for 4 seconds.
FUNCTIONS AND OPERATIONS
1. SCAN: Press MODE button until “▼” appears at SCAN position, monitor will rotate through
the following functions: speed, distance, time, calorie, ODO, and pulse, each display will be
hold 4 seconds.
2. TIME: Shows your elapsed workout time up to 99:59. Counts down from your preset target
time to 0:00 during your workout.
3. SPEED: Display current speed. The maximum value is 999.9 M/H
4. DISTANCE: Count the distance from exercise start to end. The maximum value is 99.99
MILE.
5. CALORIE: Count the total calories from exercise start to end. The maximum value is 999.
Key Functions

Xterra FB150 Specifications

General

Display	LCD
Weight Capacity	225 lbs
Flywheel	3.3 lbs
Foldable	Yes
Material	Steel
Drive System	Belt
Resistance	8 levels
Seat	Padded
Pedals	Adjustable foot straps
Heart Rate Monitoring	Hand pulse sensors
Color	Black
Included Components	Exercise bike, manual
