FB150 Folding Bike
1. Pull out the lock pin (11) from the main frame (01) and adjust
main frame (01) to the correct position then insert lock pin
(11) to tighten the main frame (01).
2. Attach the front stabilizer tube (has wheels) (05) to the main
frame (01), tighten with 2 curved washers (13) and 2 domed
nuts (14).
3. Repeat the procedure for rear stabilizer tube (06).

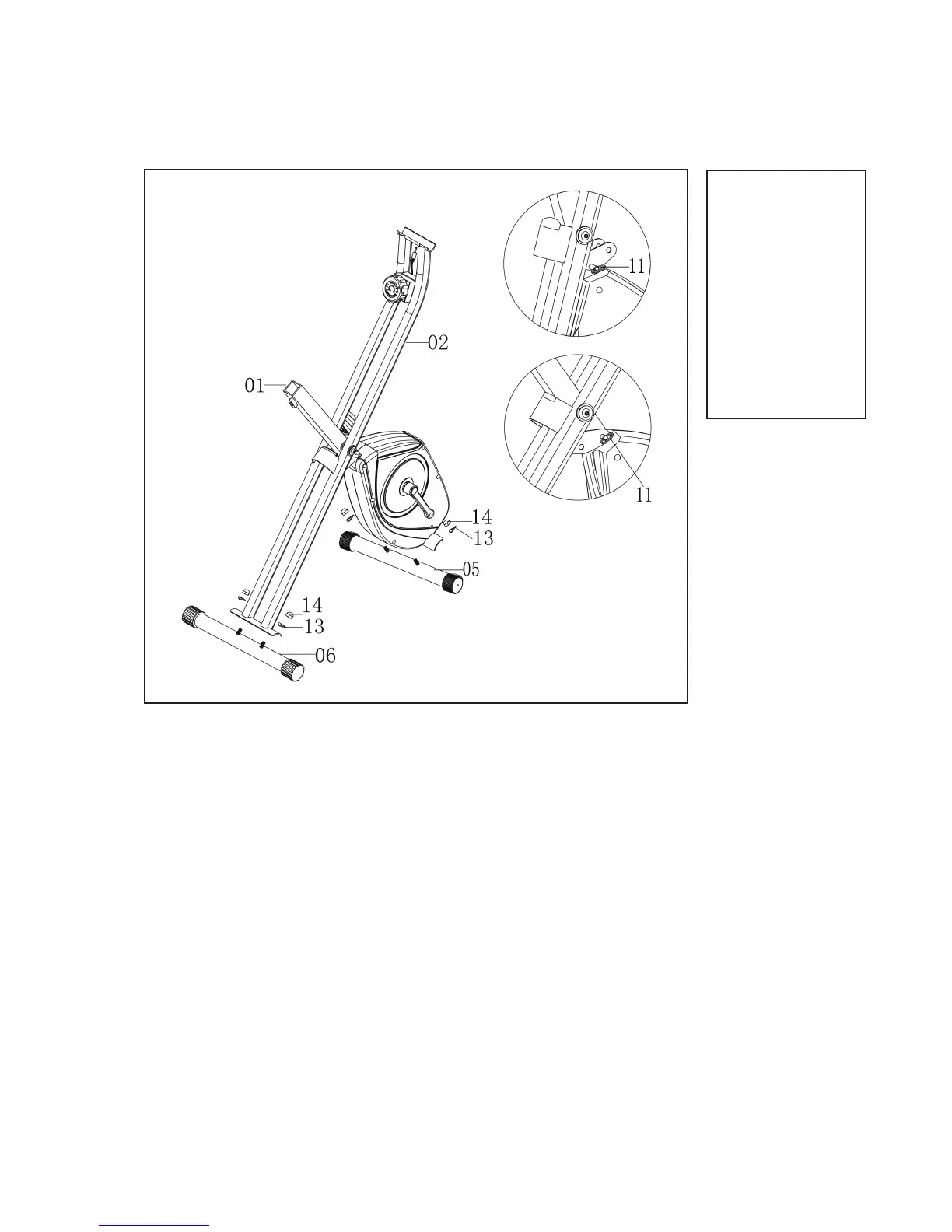

FB150 Assembly Instructions
Hardware Step 1
Front Stabilizer and Rear Stabilizer
Pre-assembled on
Main Frame:
1 Lock pin (#11)
Pre-assembled
on Front & Rear
Stabilizer:
4 Curved washers
(#13)
4 Domed nuts (#14)
1
To Next Page
