MB8.5 Indoor Cycle
5
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along the dotted Line. Lift
Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged
parts are found, or parts are missing, contact your dealer immediately.
3. Locate the hardware package. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are in parenthesis (#) are the item
number from the assembly drawing for reference.
Pre-Assembly
Hardware Step 1

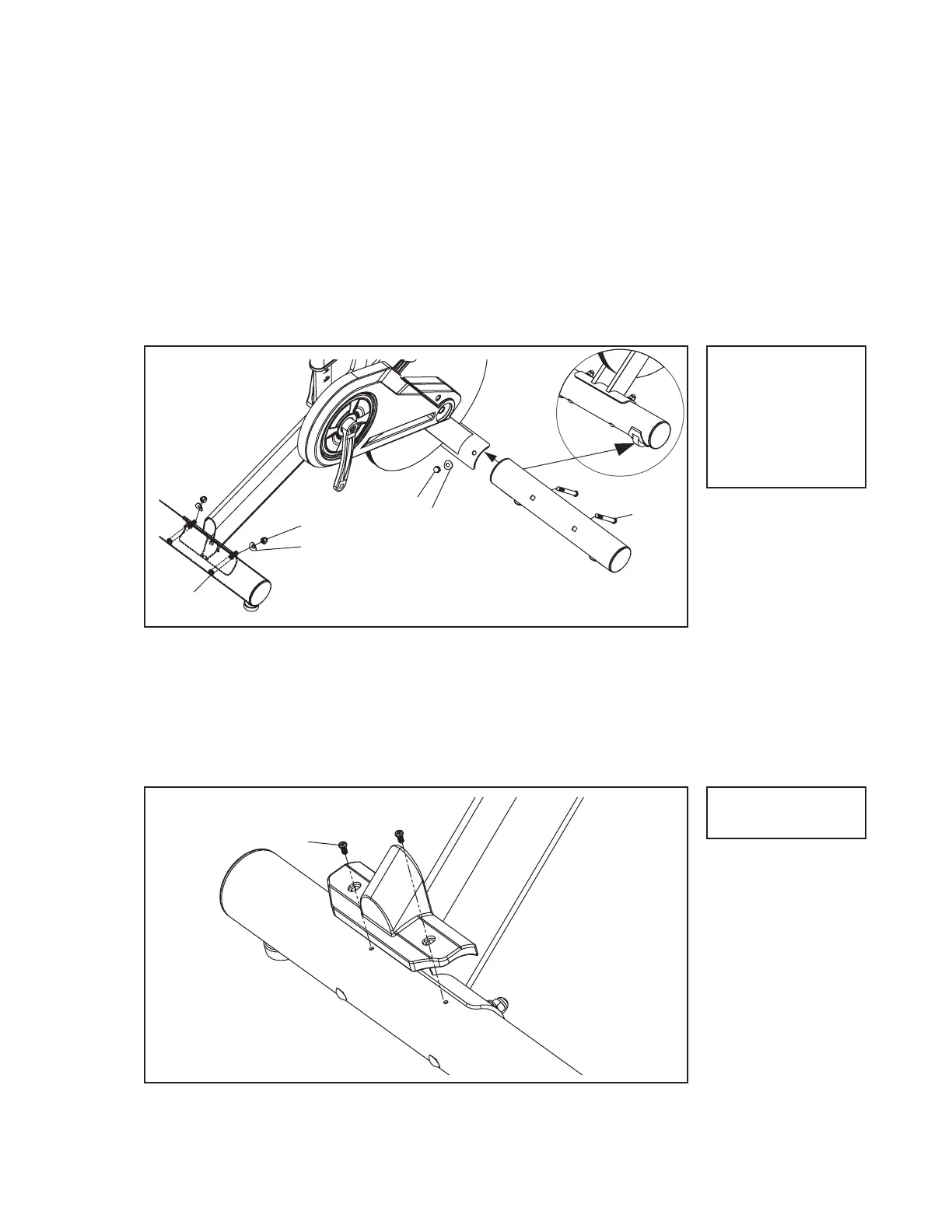

1. Attach the Front ( the one with the wheels mounted in the bottom of the
tube) & Rear oor stabilizer tubes by inserting two Button Head Socket
Bolts (81) through each tube. Fasten two Curved Washers (83) and two
Nuts (82) on each tube using the wrench (85) provided.
Stabilizer Tubes
#82. 3/8” Nut (4 pcs)
#81. 3/8” x 3-1/2”
Button Head Socket
Bolt (4 pcs)
#83. 3/8” x 23mm
Curved Washer
(4 pcs)
MB8.5 Assembly Instructions
1
1. Attach the Rear Stabilizer cover with two Screws (91). Tighten using the
Combination M5 Allen Wrench & Phillips Head Screw Driver (86).
Rear Stabilizer Cover
2
Hardware Step 2
#91. M5 x 10mm
Screw (2 pcs)
91
To Next Page
