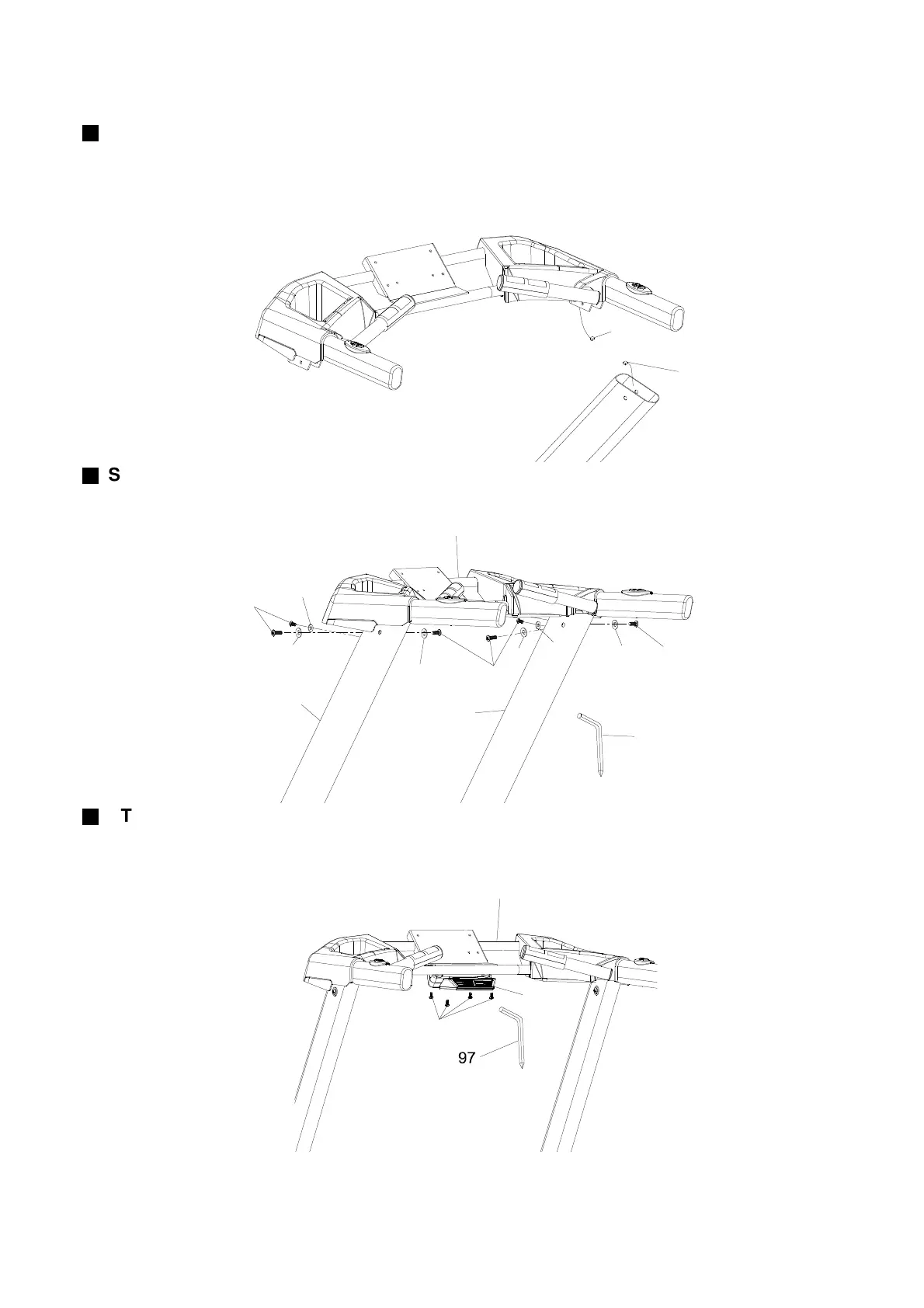

■ STEP 3
This step is easier if you have someone else helping to hold the console mounting frame while
you connect the wire. Connect the computer cable (38) to the mating connector (36) of the
console.
36
38
■ STEP 4
Secure the console frame with six 5/16” bolts (94) and 5/16” flat washers (110).
97
95
95
4
5
94
110
94
110
110
110
94
6
■ STEP 4
Install the fan assembly (112) to the underside of the console frame with the four M5 X 15mm
screws (111).
111
112
6
