Xterra TR6.6 - Page 11

TR6.6 Treadmill
9
Covers
6
Hardware Step 6
#88. 5 x 16mm
Tapping Screw
(4 pcs)
#95. M5 x 10mm
Phillips Head Screw
(2 pcs)
1. Go back and fully tighten the six Button Head Bolts that connect the Left
and Right Console Mast Tubes to the Base Frame using the
Combination Allen Wrench & Phillips Head Screwdriver (96).

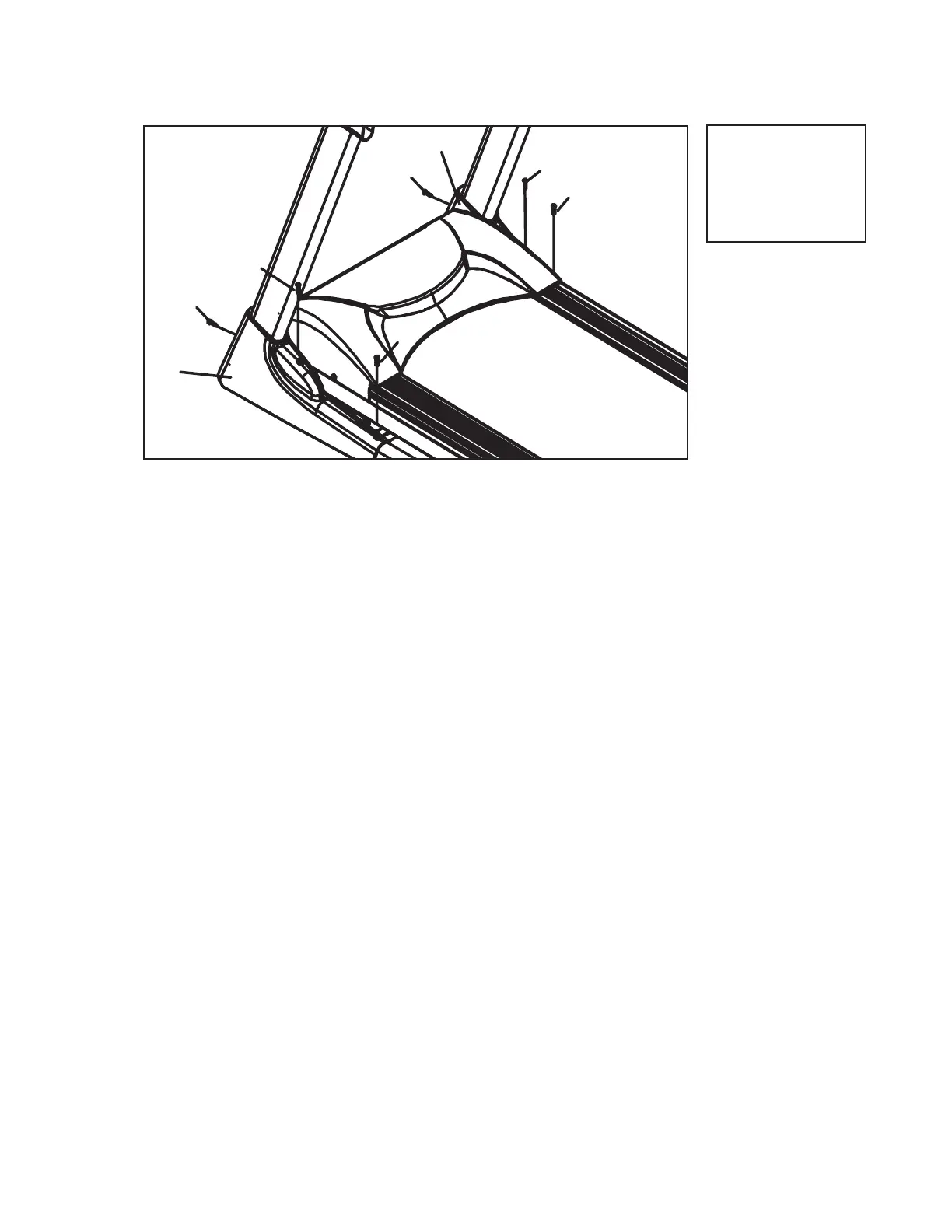

2. Attach the Console Mast Covers to the Upright Tubes (42 & 43) with four
Tapping Screws (88) & two Phillips Head Screws (95). Tighten using the
Combination Allen Wrench & Phillips Head Screw Driver (96).
88
95
88
88
88
95
43
42
