TR6.6 Treadmill
25
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It
is normal for some belts to drift near one side while in use, depending on a user’s gait and if
they favor one leg. But if during use the belt continues to move toward one side, adjustments
are necessary.
SETTING TREAD-BELT TRACKING
An 6mm Allen wrench is provided for this adjustment. Make tracking adjustments on the left
side bolt. Set belt speed at 3 mph. Be aware that a small adjustment can make a dramatic
difference which may not be apparent right away.

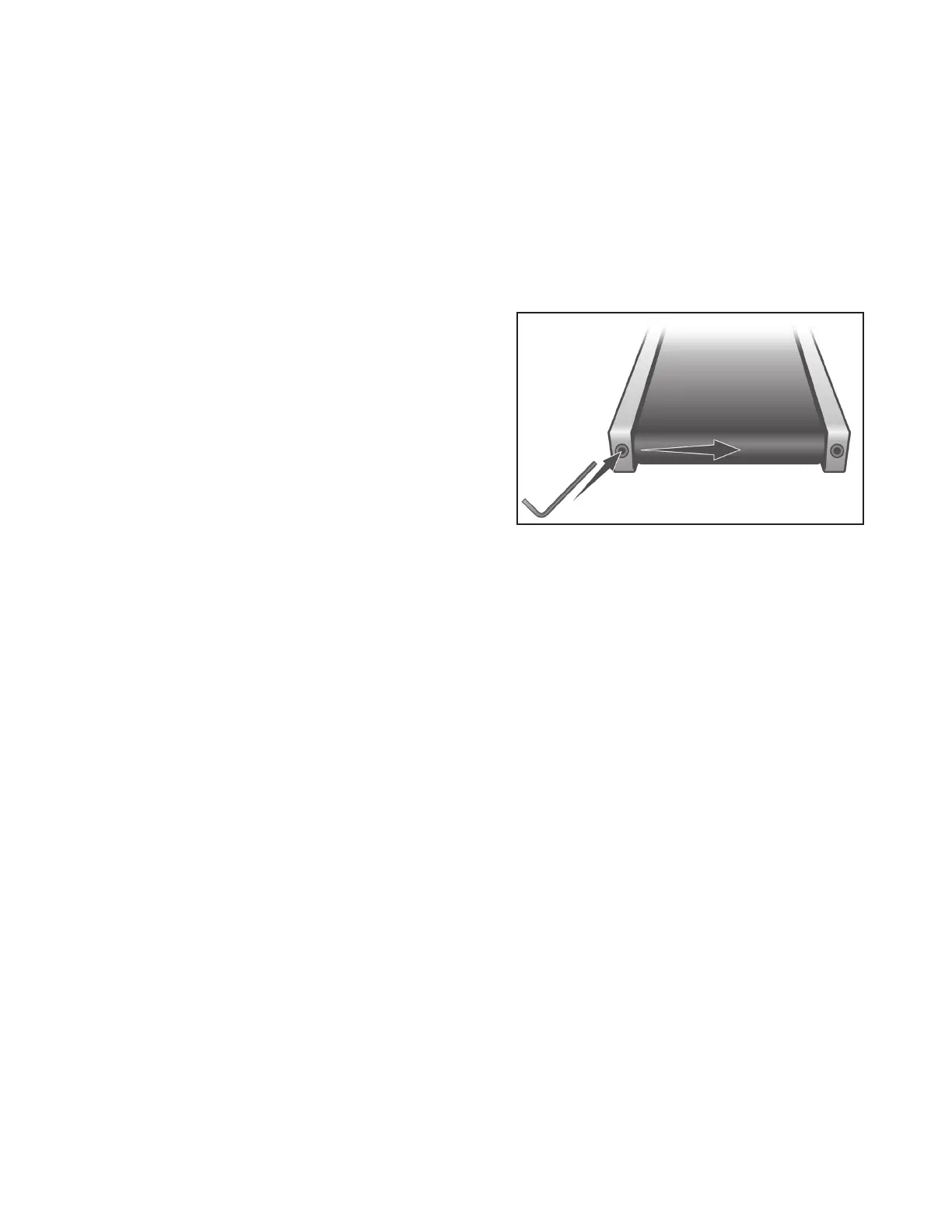

If the belt is too close to the left side, then turn
the bolt only a 1/4 turn to the right (clockwise) and
wait a few minutes for the belt to adjust itself.
Continue to make 1/4 turns until the belt
stabilizes in the center of the running deck.
If the belt is too close to the right side, turn the
bolt counter-clockwise. The belt may require
periodic tracking adjustment depending on use
and walking/running characteristics. Some users may affect tracking differently. Expect to
make adjustments as required to center the tread-belt. Adjustments will become less of a
maintenance concern as the belt is used. Proper belt tracking is an owner responsibility
common with all treadmills.
ATTENTION
Damage to the running belt resulting from improper tracking / tension adjustments is not
covered under the XTERRA Fitness warranty.
Treadbelt Tracking Adjustment
