Xterra TR800 User Manual

8
TR800 Treadmill
Upright Tubes
2

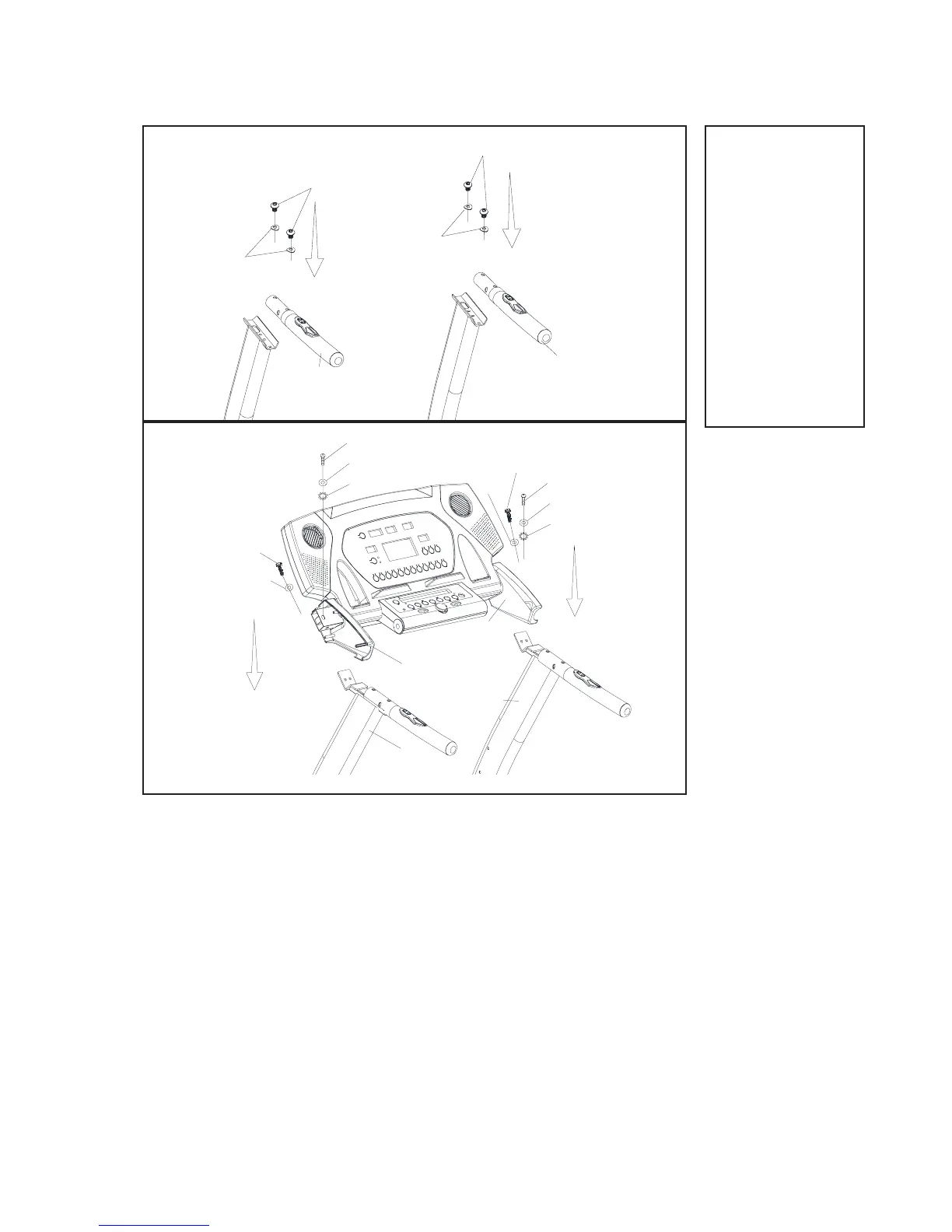

1. Install the Handgrip (L, R)(8B,8A) into the Uprights (L, R)(5,4) with the
four Button Head Socket Bolts (101) ,four Curved Washer (110) by using
the Combination M5 Allen Wrench & Phillips Head Screw (111).
2. Install the Right Handgrip SideCap (L)(54)and Left Handgrip Side
Cap(R)(53) onto the Console Support (6).
3. Install the Console Support (6) onto the Uprights(L,R)(5,4)with the two
Hex Hex Head Bolts (105), two Button Head Socket Bolts (106),four Flat
Washers (109), two Star Washers (121) by using the 12m/m Wrench
(113) and Combination M5 Allen Wrench & Phillips Head Screw Driver
(111).
110
101
101
110
8B
8A
106
109
121
106
121
109
105
109
105
109
53
5
4
54
Hardware Step 2
#101. 5/16” x 2”
Button Head Socket
Bolt (4 pcs)
#105. 5/16” x 2-3/4”
Hex Head Socket Bolt
(2 pcs)
#106. 5/16” x 1-1/2”
Button Head Socket
Bolt (2 pcs)
#109. Ø8 x 23 x1.5T
Flat Washer (4 pcs)
#110. 5/16” x 2”
Curved Washer (4 pcs)
#121. Ø8
Star Washer
(2 pcs)
