Xterra TR800 User Manual

TR800 Treadmill
9
Cables
3

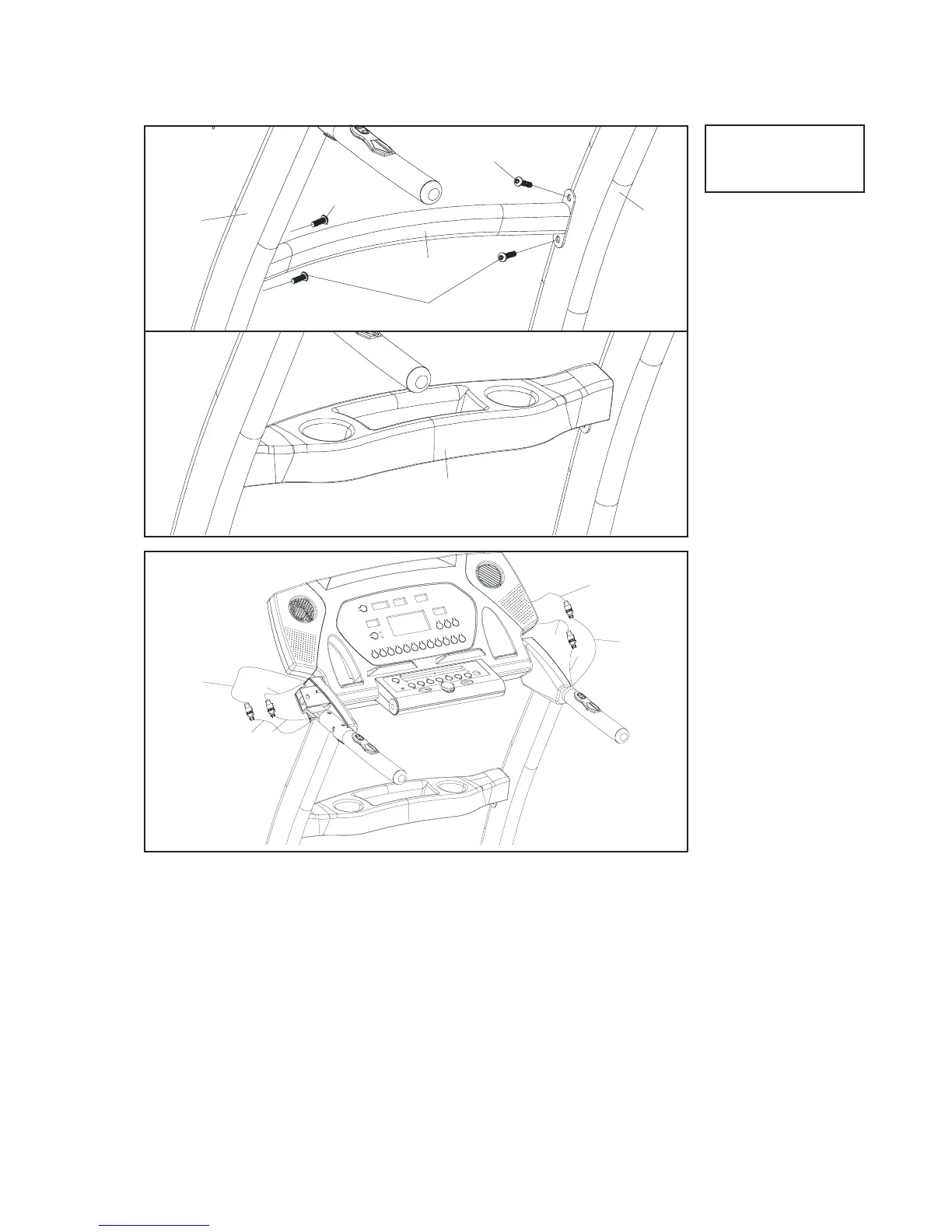

1. Install the Handrail Support (3) between the Uprights (L, R)(5,4) with the
four Button Head Socket Bolts (102) by using the Combination M5 Allen
Wrench & Phillips Head Screw Driver (111).
2. Install the Beverage Holder (48) onto the Handrail Support (3).
3. Connect the Speed Adjustment Switch W/Cable (38) into the Incline
Cable (Upper) (34) and Handpulse Wire (50~1)
4. Connect the Incline Adjustment Switch W/Cable (39) into the Incline
Cable (Upper) (35) and Handpulse Wire(50~1).
102
3
111
102
4
5
102
48
38
34
39
35
50-1
39
38
50-1
Hardware Step 3
#102. 5/16” x 15mm
Button Head Socket
Bolt (4 pcs)
