Xterra TRX3500 User Manual

7

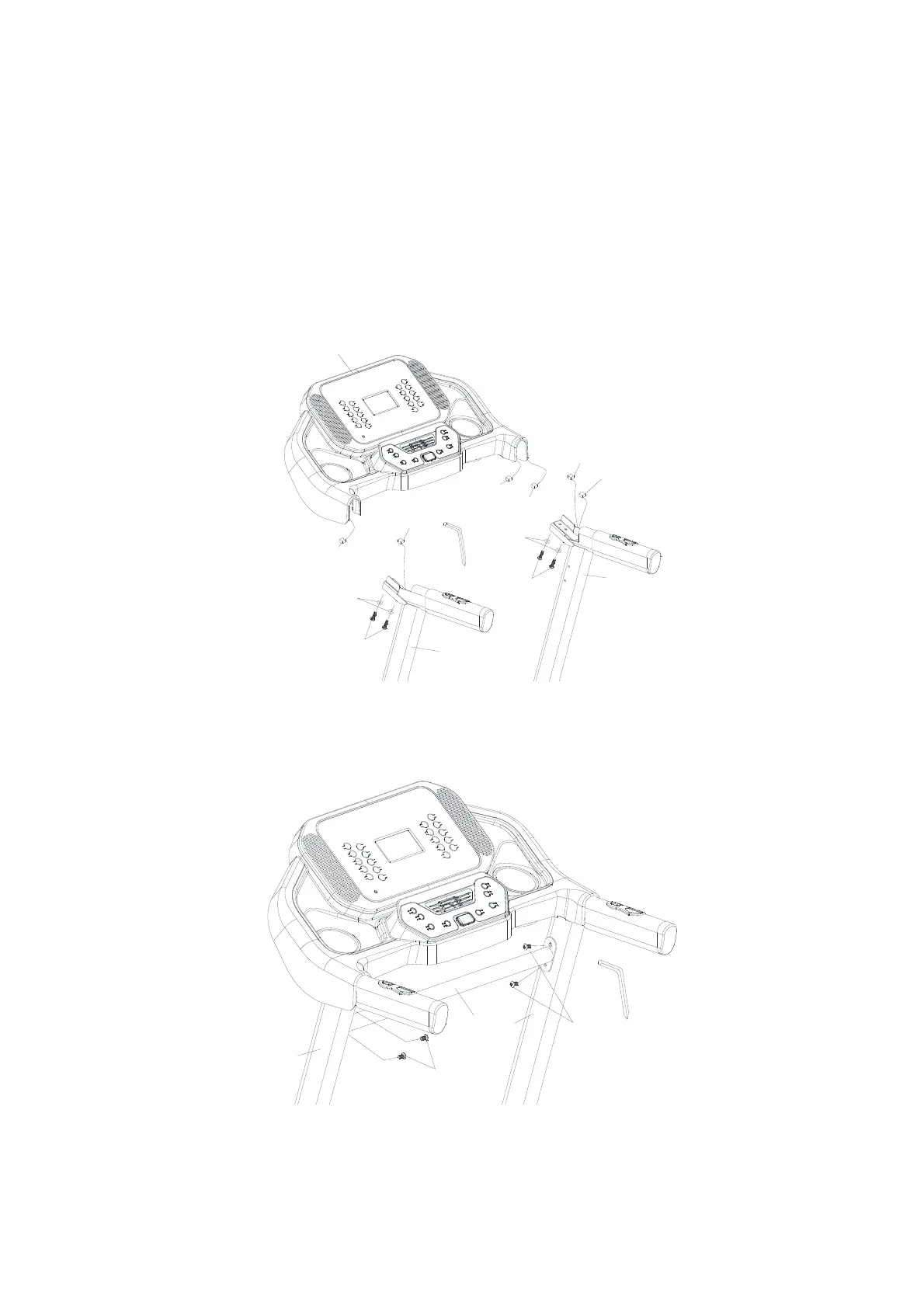

STEP 3
1. Connect the Computer Cable (Middle) (54) and Computer Cable (Upper) (53).
2. Connect the Speed Adjustment Switch W/Cable (Upper) (114) and Speed/Hand Pulse
Complex (28).
3. Connect the Incline Adjustment Switch W/Cable (Upper) (115) and Incline/Hand Pulse
Complex (29).
4. Insert Console Assembly (21) into right and left Uprights (4) and (5) and secure with 4
pcs of 5/16" × 3/4" Button Head Socket Bolts (125) with 4 pcs of Ø8 × 1.5T(80) Split
Washers by using Combination M5 Allen Wrench & Phillips Head Screw Driver (102).
54
53
4
5
125
80
125
80
114
28
115
29
102
21
STEP 4
Install Handrail Support (9) between left and right Uprights (5) and (4) and use
Combination M5 Allen Wrench & Phillips Head Screw Driver (102) to tighten 4 pcs of
5/16" × 3/4" Button Head Socket Bolts (125).
102
125
9
125
4
5
NOTE: Please Tighten All Screws After All Components Assembly Complete.

Xterra TRX3500 Specifications

General

Speed Range	0.5 - 12 mph
Running Surface	20" x 60"
Weight Capacity	350 lbs
Foldable	Yes
Display	LCD
Heart Rate Monitoring	Grip Pulse
