Page 36

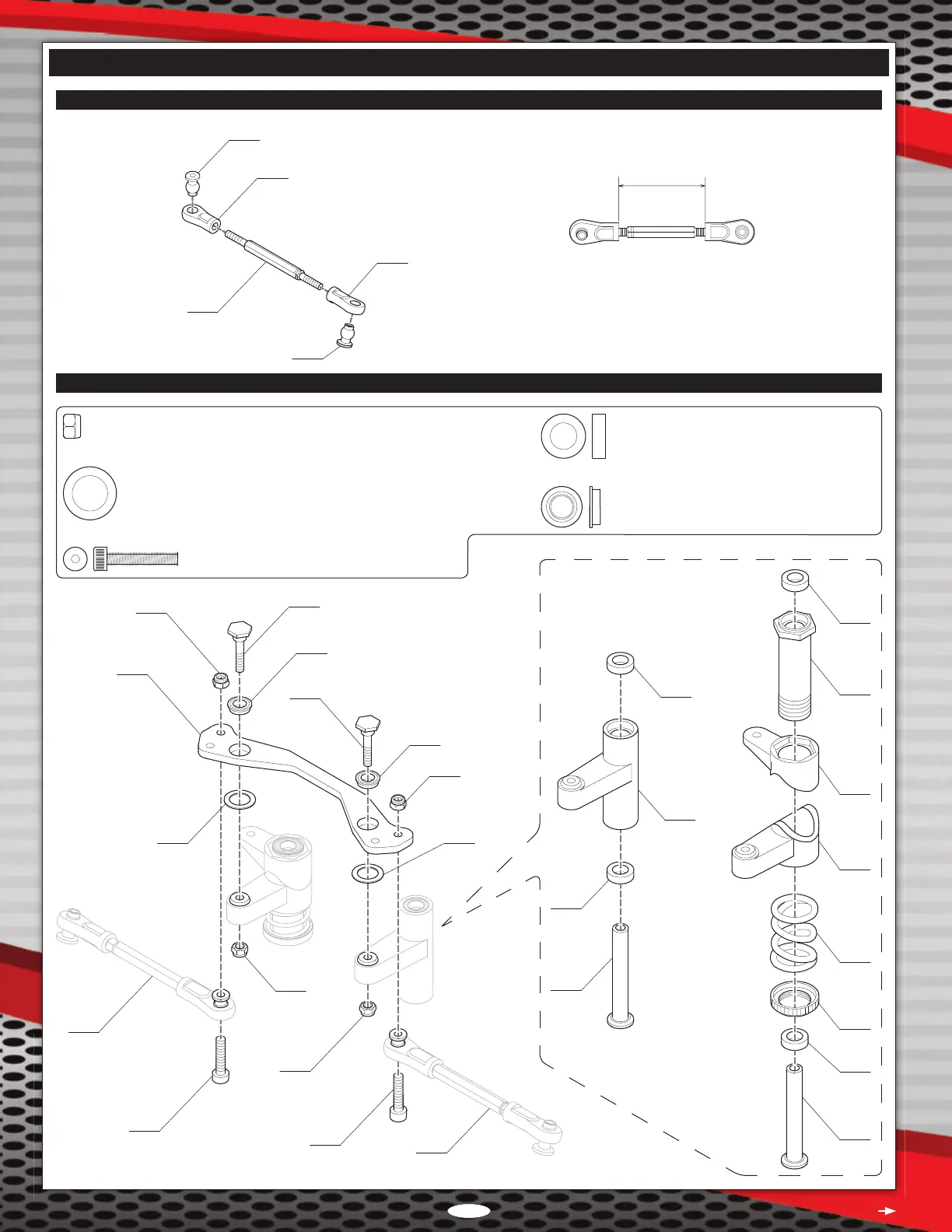

STEP 27: STEERING TIE-RODS
149731
149549
149549
149331
149731
29mm
STEP 28: SERVO SAVER AND STEERING LINKAGES
(148558) Lock Nut 3mm -- 4
(148625) Shim 8 x 12 x 0.8mm -- 2
(148509) Cap Screw 3 x 20mm -- 2
(149567) Bushing 6 x 10 x 3mm -- 4
(149559) Flanged Ball Bearing 5 x 8 x 2.5mm -- 2
149457
149559
148558
149285
149457
148625
149559
148558
148625
148558
Step 27
148509
148509
148558
Step 27
149455
149567
149455
149455
149453
149453
149455
149567
149567
149453
149567
149455
ExpLODED vIEW ASSEmBLY DRAWINGS
Continued On Next Page
To Next Page
