Page 37

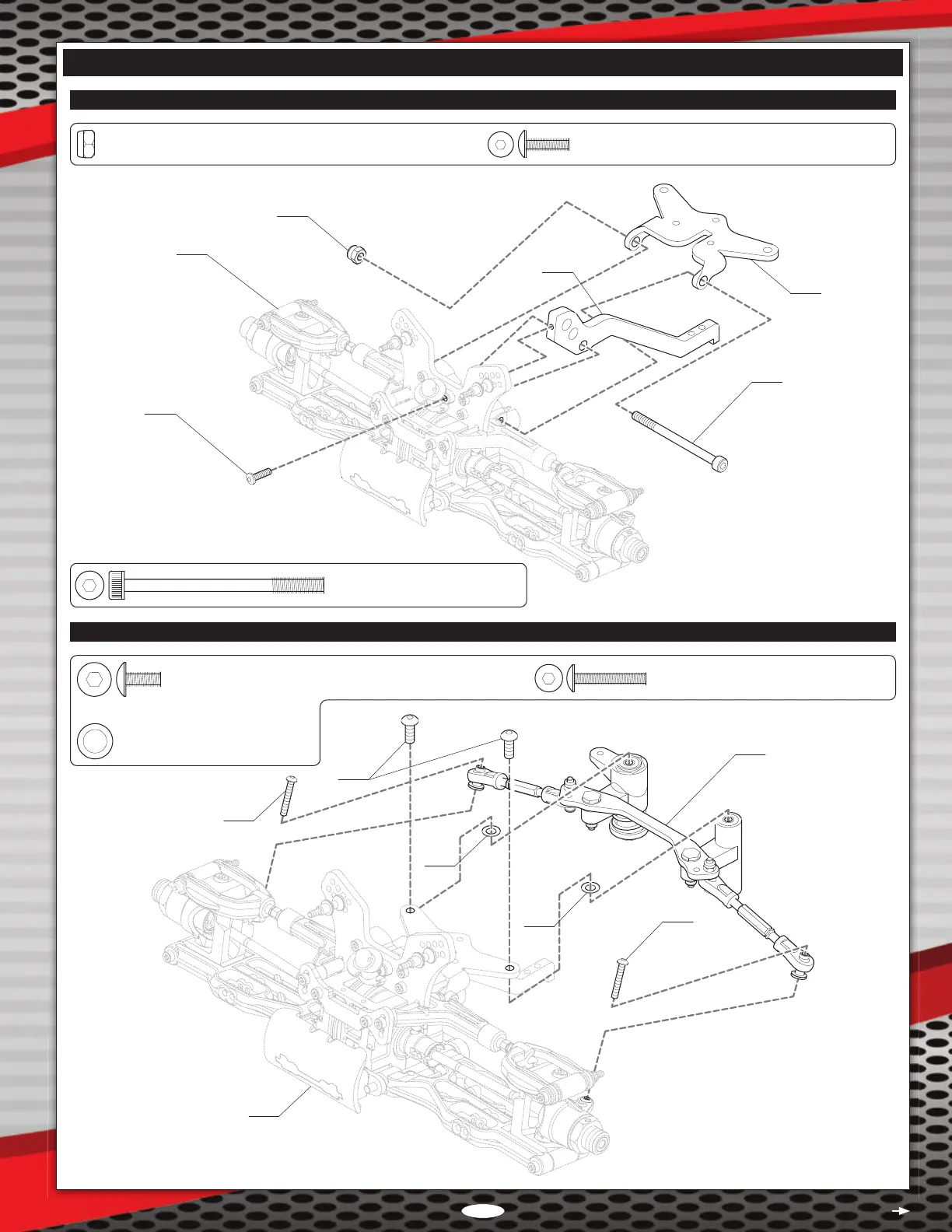

STEP 29: FRONT CHASSIS BRACE

(148559) Lock Nut 4mm -- 1

(148634) Button Head Screw 3 x 12mm -- 1

(148651) Cap Screw 4 x 55mm -- 1

STEP 30: FRONT CHASSIS BRACE

(148637) Button Head Screw w/Threadlock 4 x 10mm -- 2

(148621) Shim 6 x 9.8 x 0.1mm -- 2

(148627) Button Head Screw 3 x 20mm -- 2

148559

Step 9

148634

148651

149286

149273

148627

148637

148621

Step 28

148627

148621

Step 29

ExpLODED vIEW ASSEmBLY DRAWINGS

Continued On Next Page
