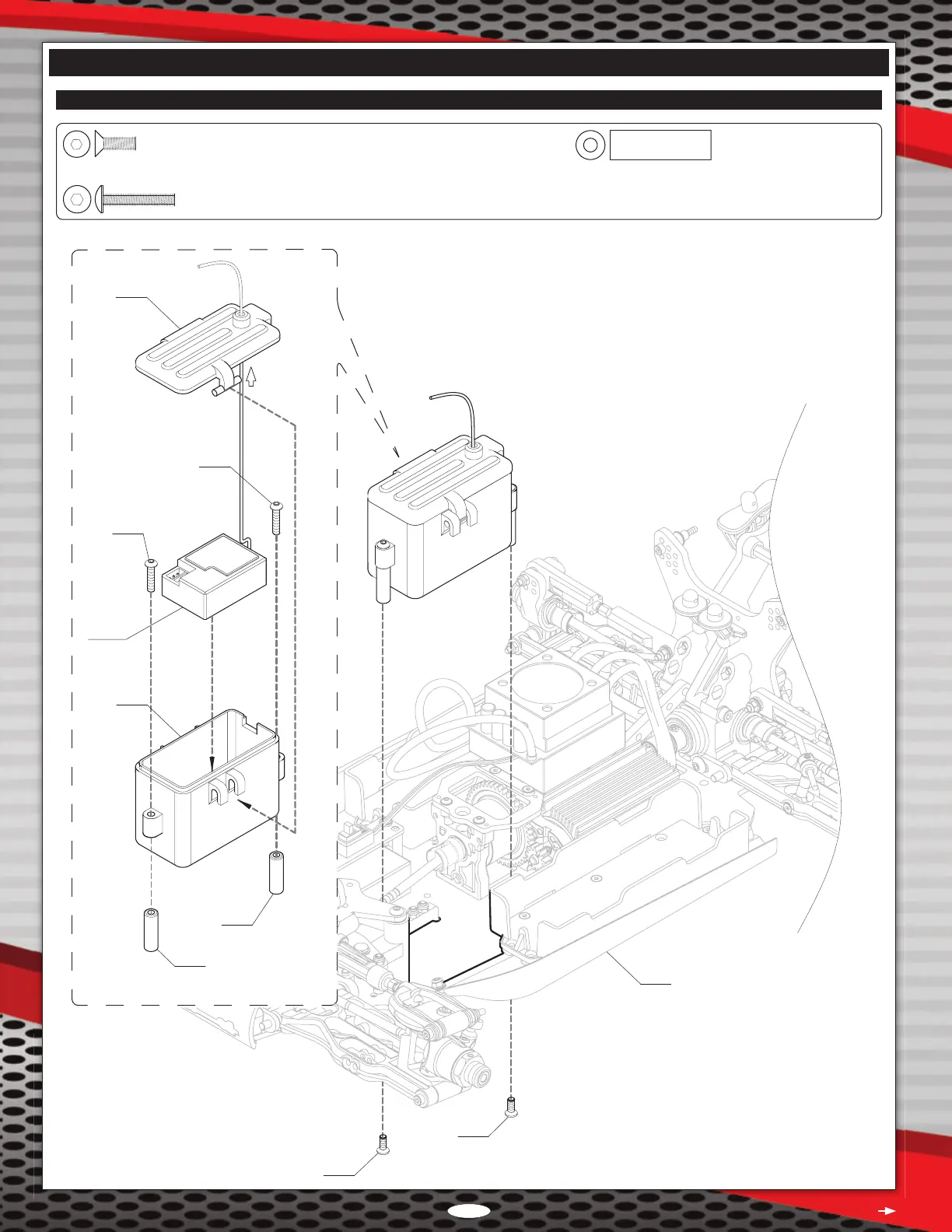

STEP 33: RECEIVER AND RECEIVER BOX MOUNTING
(148639) Flat Head Screw w/Threadlock 3 x 8mm - 2
(148611) Button Head Screw 3 x 16mm -- 2
(150037) Post 3 x 19mm -- 2
150037
148611
148611
Receiver
150037
150037
150037
148639
148639
Step 32
ExpLODED vIEW ASSEmBLY DRAWINGS
Continued On Next Page
