4


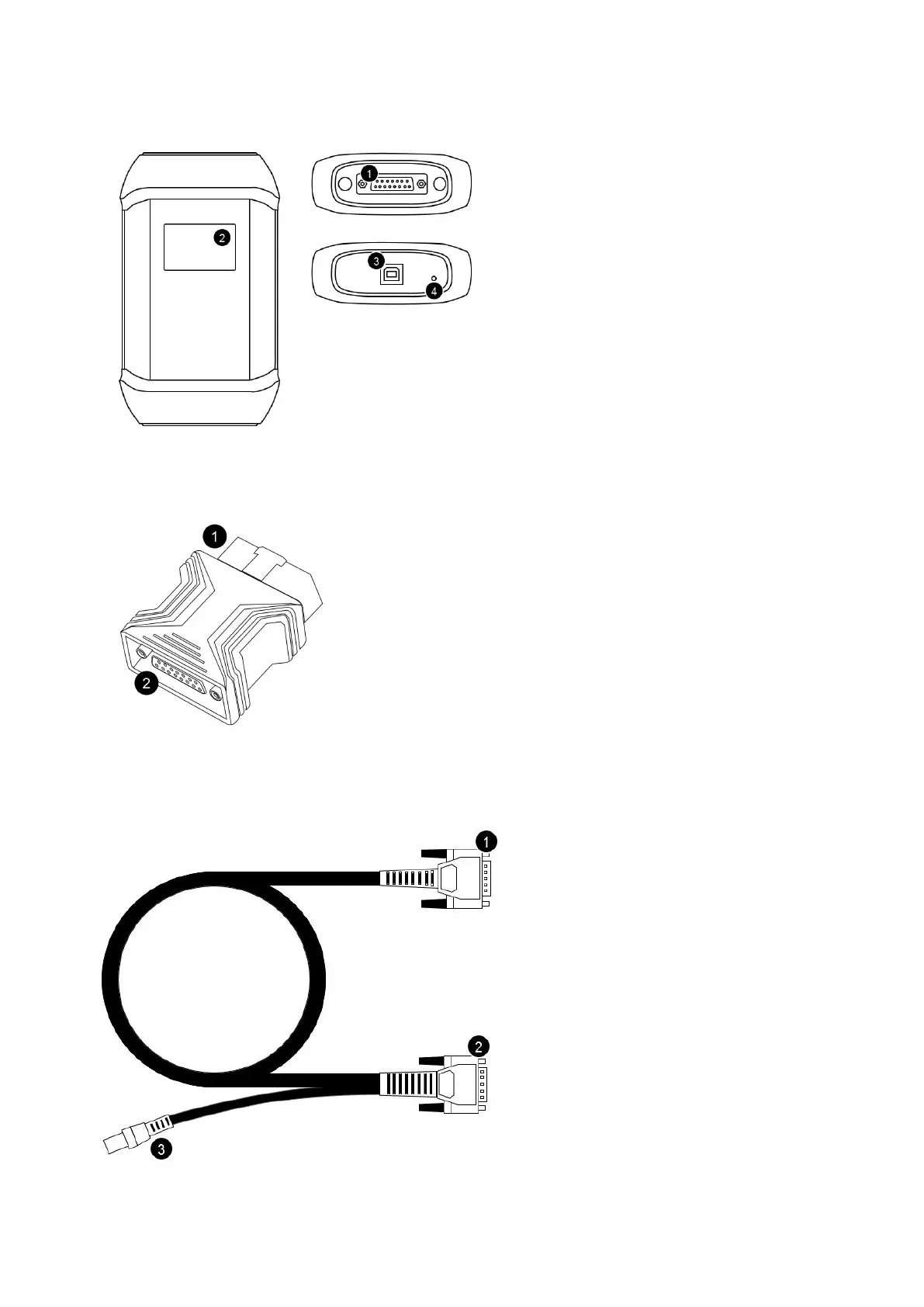

VCI Box
1. DB15 Port
2. Display with vehicle voltage
3. Type-B Port

OBD2-16 Adapter
1. OBD Male Connector – Plug into vehicle’s
DLC port
2. DB15 port – Connect to main cable
 DB15 Main Cable
1. DB15 Port – to OBD2-16 Adapter
2. DB15 Port – to VCI
3. 12V DC Power Input Port
