Xtralis VESDA E-Series - Page 127

VSC Software Configuration
VESDA Student Workbook 6-23
Activity
Please complete checklist item 7:
7. Configure a Detector
a. Double-click the detector
On the General tab:
• Verify the Network Name and Location
On the Ethernet tab:
• Verify IP Address, Subnet Mask, and Default Gateway
On the Smoke Thresholds tab:
• Set Delay (sec):
Fire 2 10
Fire 1 5
Action 3
Alert 1
Activity
Please complete checklist item 7:
7. Configure a Detector
On the Air Flow tab:
• Deselect Pipes in Use 2, 3,
and 4
• Set Delay (sec) to 15

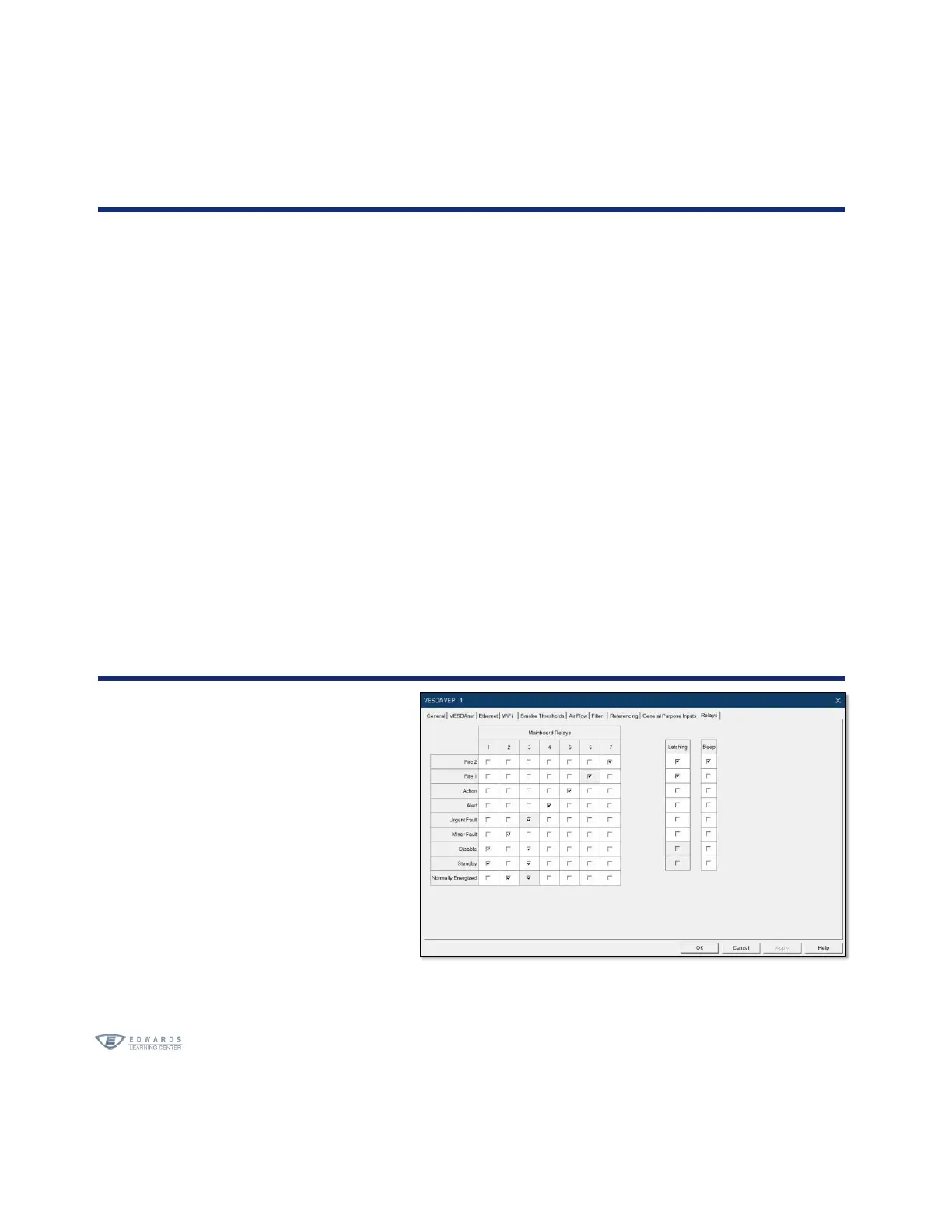

On the Relays tab:
• Configure according to the
illustration
• Click Apply
• Click OK
