Xtralis VESDA E-Series - Create a Computer Room Floor Pipe Network

ASPIRE Software
7-34 VESDA Student Workbook

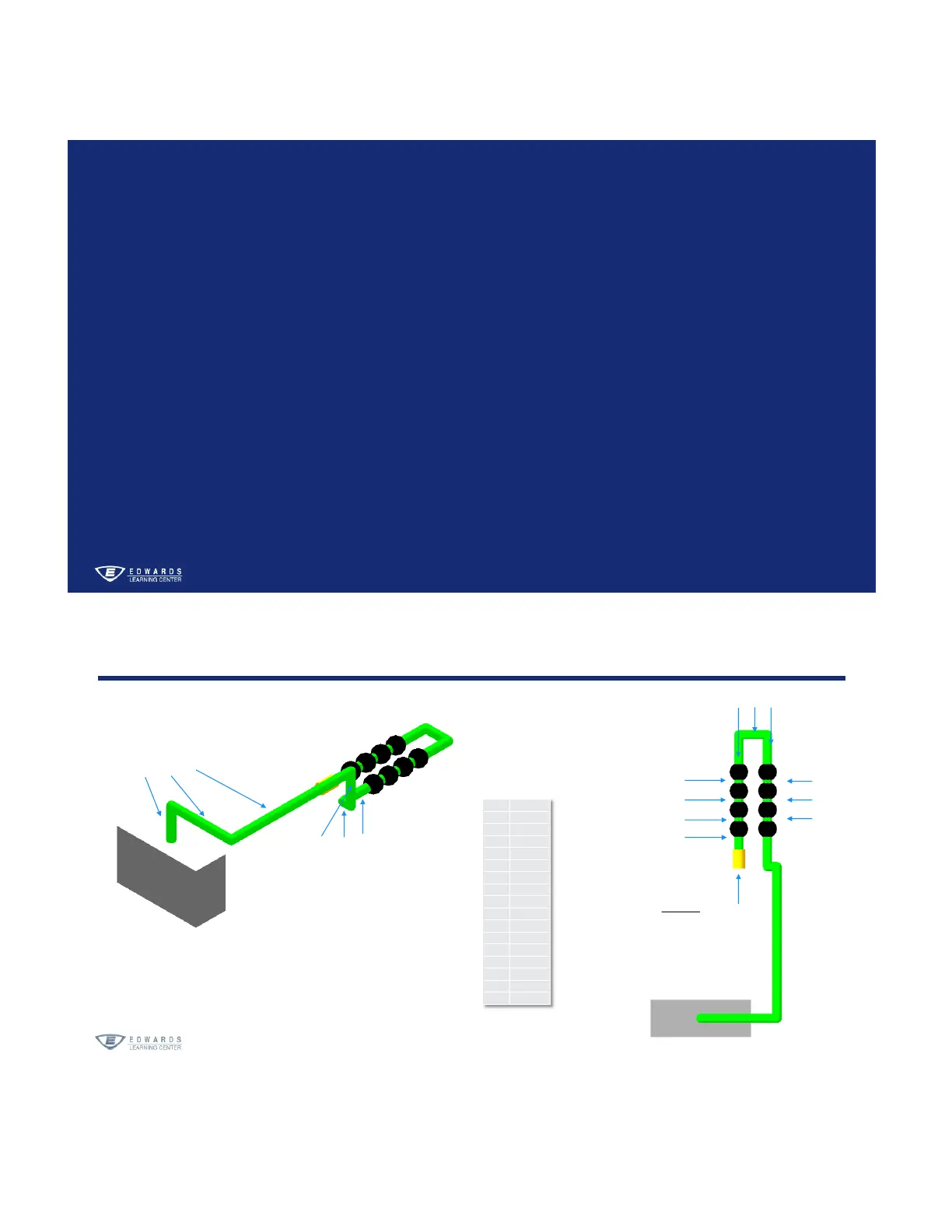

Create a Computer Room
Floor Pipe Network
Computer Room Floor pipe dimensions
FEET
A 2
B 4
C 8
D 2
E 0.5
F 2
G 1
H 1
I 1
J 2
K 1.5
L 2
M 1
N 1
O 1
P 2
D E F
L K J
I
H
G
A B C
M
N
O
P
CLOSED End Cap
Add a VEP-1P
Add pipe – simple pipe - # of bends = 7 finish
Turn your bends, starting at the top R F D L F L B
Insert 4 holes between the F & L elbows
Delete two holes after the last Bend 90
Close the Endcap
The pipe is done, set the Relative Distance
Calculate and VIEW
