Xtralis VESDA E-Series User Manual

Installation
3-6 VESDA Student Workbook

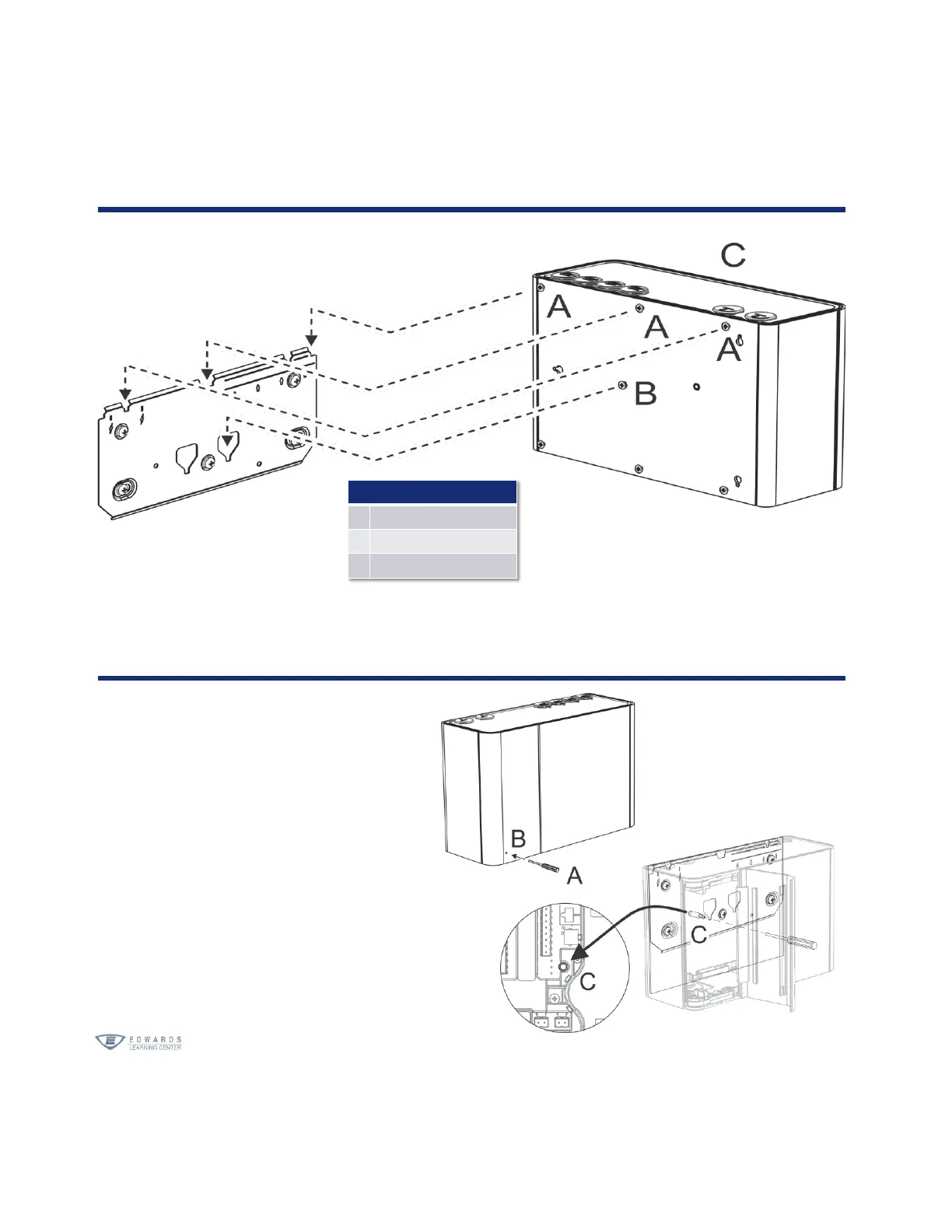

Position the mounting bracket
Legend
A
Mounting studs
B
Center stud
C
Detector
Secure detector to the mounting bracket
• Open the door on the front of the
detector by inserting a thin
screwdriver (A) into the hole at
bottom left of the door (B) and firmly
pushing perpendicular to the door
surface to release the door latch
• Remove the tape covering the
partially inserted locking screw (C)
• Tighten the locking screw
