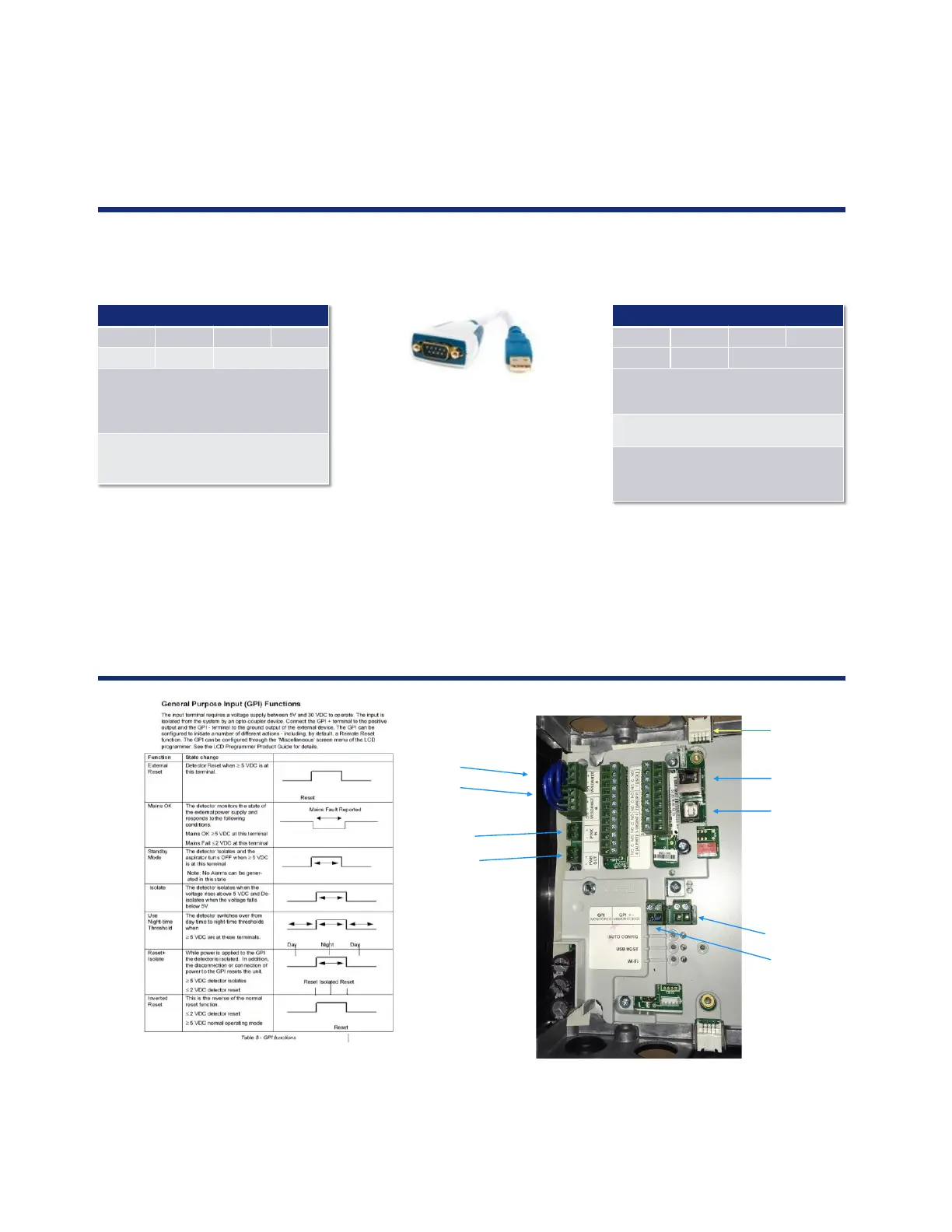

VESDAnet Connection
VESDA Student Workbook 4-5
Connecting to VESDA detectors
VESDAnet Compatible
VEA VEU VEP VLS
VLP VLC VLI
VFT-15
Requires PN: 01-E627-00
VFT-15 VESDAnet Interface Card
(obsolete – only for existing projects)
VLF-250 & VLF-500
Requires PN: VIC-010
VESDAnet Interface Card
Passwords
VEA VEU VEP VLS
VLI VLC VLF
USER: 1111
ADM: 1413
DST: 1451
VLF (stand alone)
DST 7244
VFT
USER (Level 1): 260
ADM (Level 2): 693
(obsolete – only for existing projects)
Highly recommended USB to RS-232 Converter
EasySync
ES-U-1001-R10 or ES-U-1001-R100
Recommended VESDAnet Wire:
Belden 9841-120 Ohm twisted shielded pair
Detector connections
12
Network Connector
GPI inputs
Unmonitored
Monitored
STAX connector
E-Series Termination PCB
USB Connector
VESDAnet Ports
A
B
24 VDC
In
Out
