VESDA-EVEU-A00 Product Guide
www.xtralis.com 25

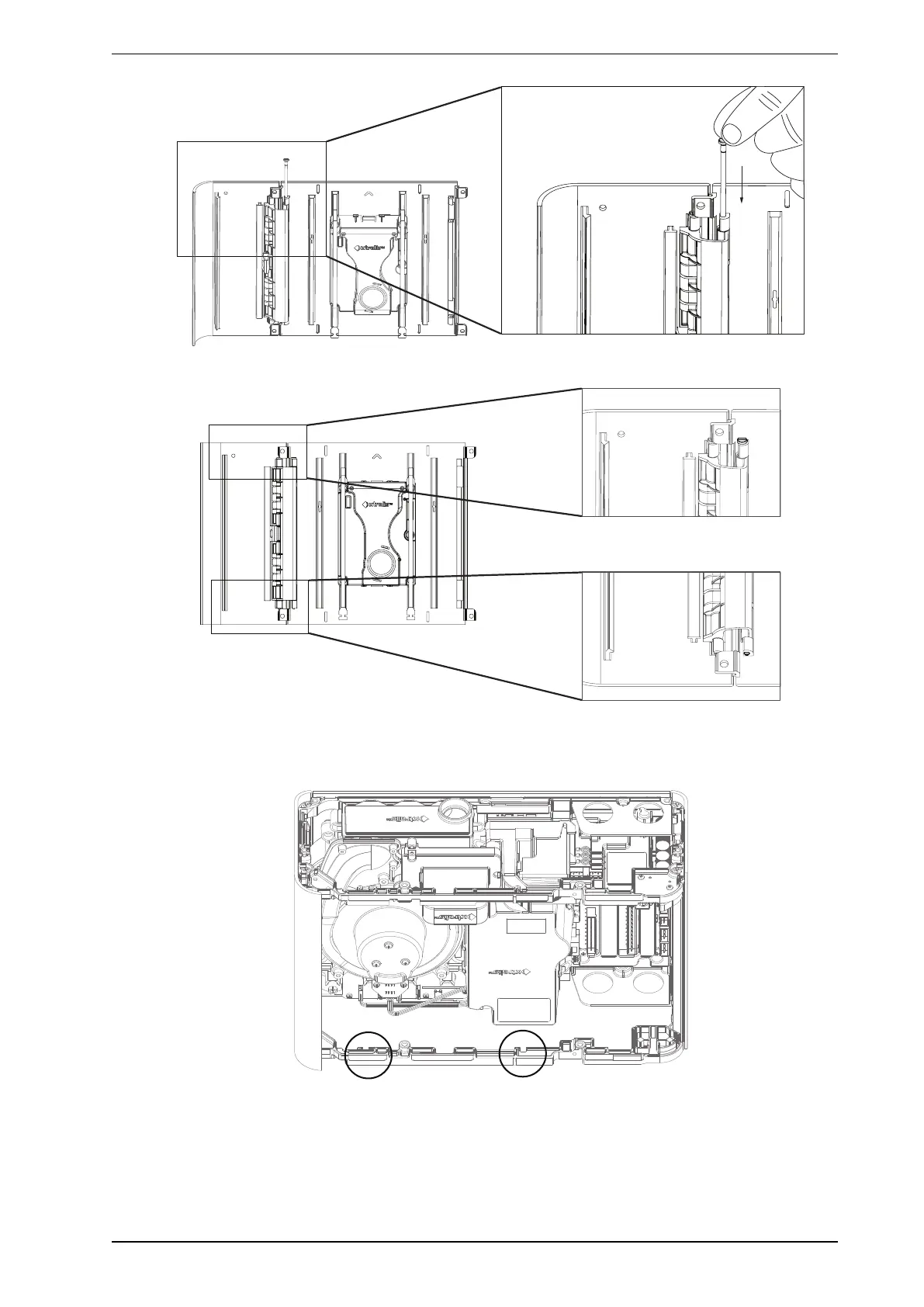

Figure4-13: Replacing the door hinge pin
Figure4-14: Correct positioning of door hinge pin when fully in place
8. Re-attach the tethers. Attach at the slots circled in Figure4-15. Position the tethers in the slots and pull
up as shown in Figure4-16.
Figure4-15: Re-attach tethers at circled positions
