Xtreme Power Conversion Corporaon
M90U-80 & 140 User’s Manual
Page 7
Uninterrupble Power Supply

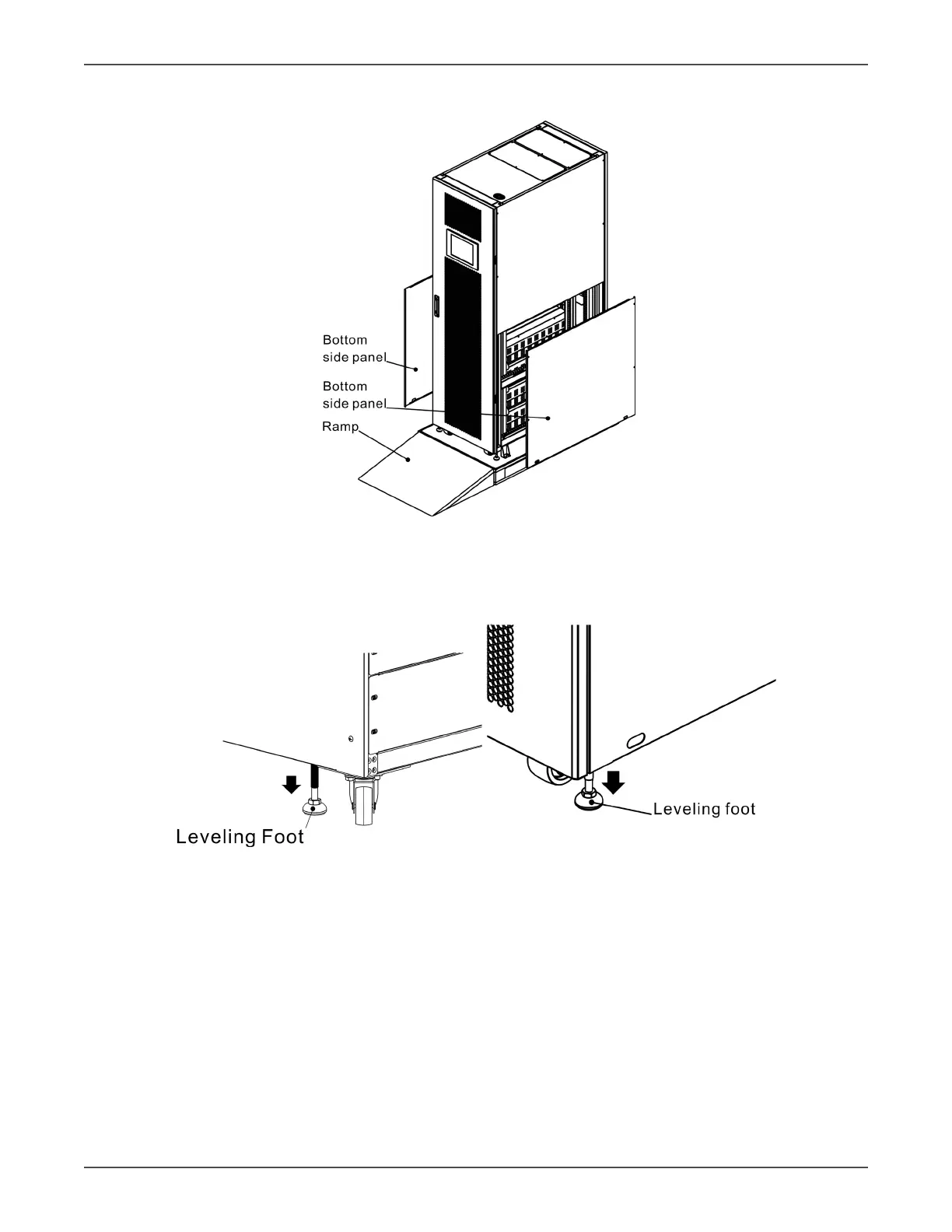

3. Put the included ramp in the front of the cabinet. Then, remove two side panels. Refer to Figure 2-3.
Figure 2-3
4. Remove 4 shipping brackets and loosen leveling feet by rotang them counterclockwise. Then, move the cabi-
net from the pallet. Refer to Figure 2-4.
5. To x the cabinet in posion, simply rotate leveling feet clockwise. Refer to Figure 2-5.
Figure 2-4 Figure 2-5
