XtremeAIR Ultra Series User Manual

www.XtremeAirUsa.com PAGE 5

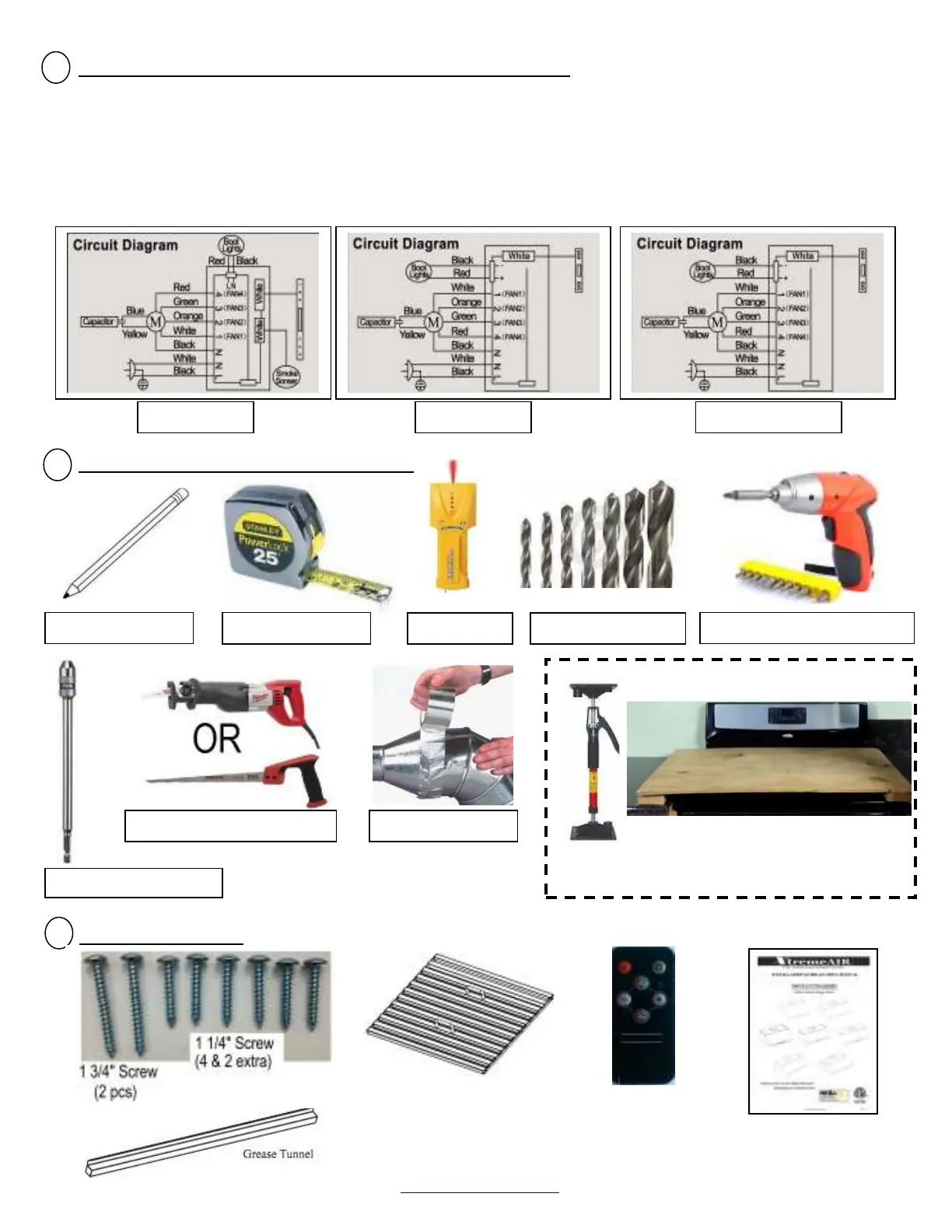

ELECTRICAL REQUIREMENTS & CIRCUIT DIAGRAM:
IMPORTANT: Observe all governing building codes and city ordinances.
■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
It is the customer’s responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70
— latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No. 0-M91 - latest edition**
and all local codes and ordinances.
TOOL & MATERIAL YOU WILL NEED:
PARTS SUPPLIED:
Except UL14
PX10, PX12
PX11
ALL Ultra Series
05
06
07
(1) Remote Control: for
all Pro-x Series only,
except PX11)
Baffle Filters
Instruction manual
Pencil or Marker Phillip Powered Screwdriver
Stud Finder
Measurement Tape
1/8” & 1
1/4”
Drill bit
(2) 2” x 4” x 24” stud
(1) 24” x 36”/42” x ¾” plywood
Note: about 6” wider than stove is ok
Cabinet
Jack
OPTIONAL
Sawzall or Keyhole Saw Aluminum Tape
10” Hex bit extension
