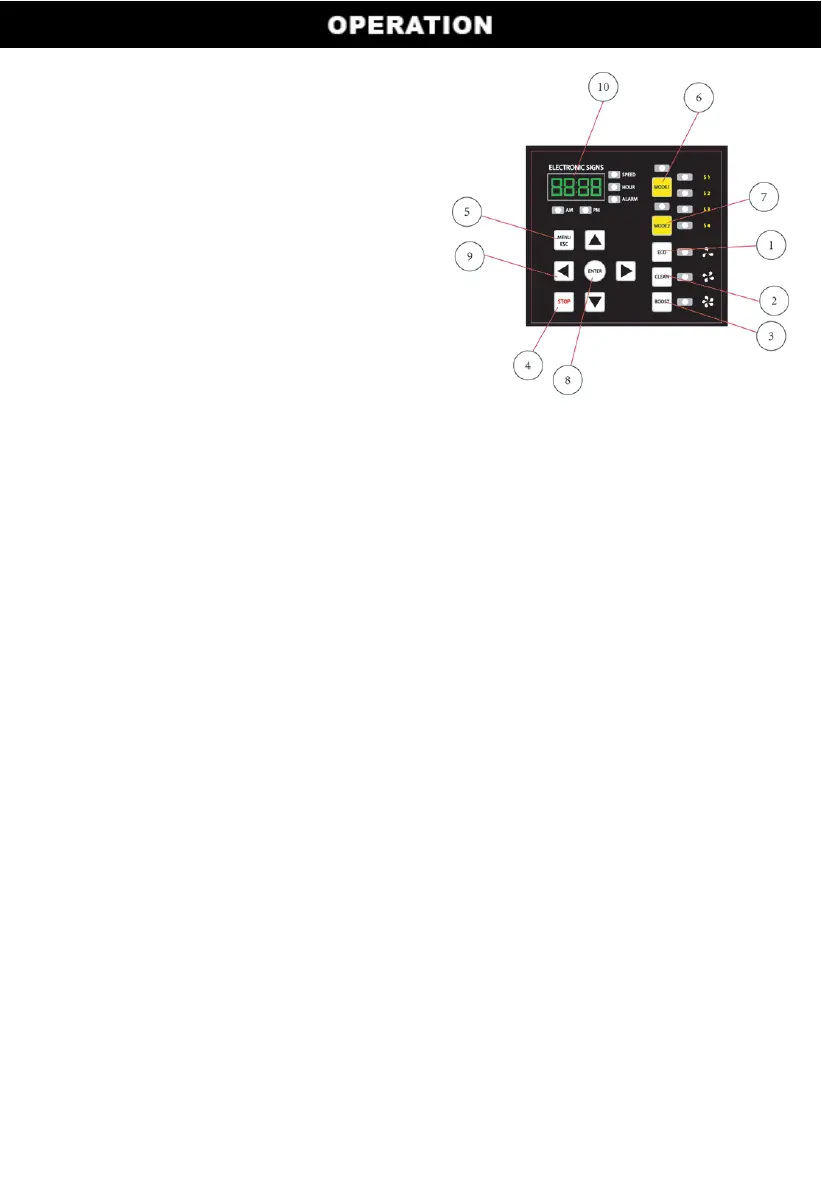

Introduction of LED Control Panel
ECO: Press to select and run on default speed
1500RPM, can be adjusted from 1000 to
2400RPM
! CLEAN: Press to select and run on default
speed 2400RPM, can be adjusted from 2400
to
2850RPM
" BOOST
: Press to select and run on default
speed 3250RPM, can be adjusted from 2850 to
3450RPM
# STOP: Press to
stop the pump. And the screen
displays the present time
$ MENU: Enter the pump menu if
the pump is stopped
% MODE 1: To run the programmed 16 hours clean cycle.
& MODE 2: To run the programmed 24 hours clean cycle.
' Enter: Save and exit the menu.
( ARROW BUTTONS:
• UP ARROW – Each press,moves up one level in the menu or to increase a digit when changing a
setting
• DOWN ARROW – Each press,moves one level down in the menu each press or to decrease a digit
when changing a setting.
• LEFT ARROW – Each press,moves the cursor left one digit when changing a setting
• RIGHT ARROW – Each press,moves the cursor right one digit when changing a setting
) LED Screen: Composed of fou
r digital tubes. Display current time when standby. And display the current
and running speed back and forth in operation.
AM/PM: Designed for 12-hour system. If pump run on 0:00-11:59, AM light on; if pump run on 12:00-23:59, PM light
on.
! MODE1 and MODE 2 have 4 stages, S1/S2/S3/S4 is the speed for each stage. If the S1 light is on,
the pump is run on first stage, if the li
ght twinkles, the time for the stage is not arrive yet or the
pump is not running.
If SPEED light is on, the screen will display the current RPM
If HOUR light twinkles, you are ready to set the running time for each stage.
If ALARM light is on, an alarm condition exists.
" Press MODE 1, the light will shine and one light of S1/S2/S3/S4 will be on or twinkle. (Light
twinkle means the current time is not in the set running period), and one of AM or PM lights will be
on.
6
# Press MODE2, the light will shine and the one light of S1/S2/S3/S4 will be on or
twinkle. (Light twinkle means the current time is not in the set running period), and one of AM or
PM lights will on.
$ When the pump is in standby, switch MODE 1 and MODE2, the corresponding light will shine,
and the pump run accordingly.
