Xylem Flygt 3069 - Replace the F-Impeller

NOTICE:
Surplus grease can cause the impeller to become loose. Remove surplus grease from
conical and/or cylindrical surfaces of shafts and/or sleeves.

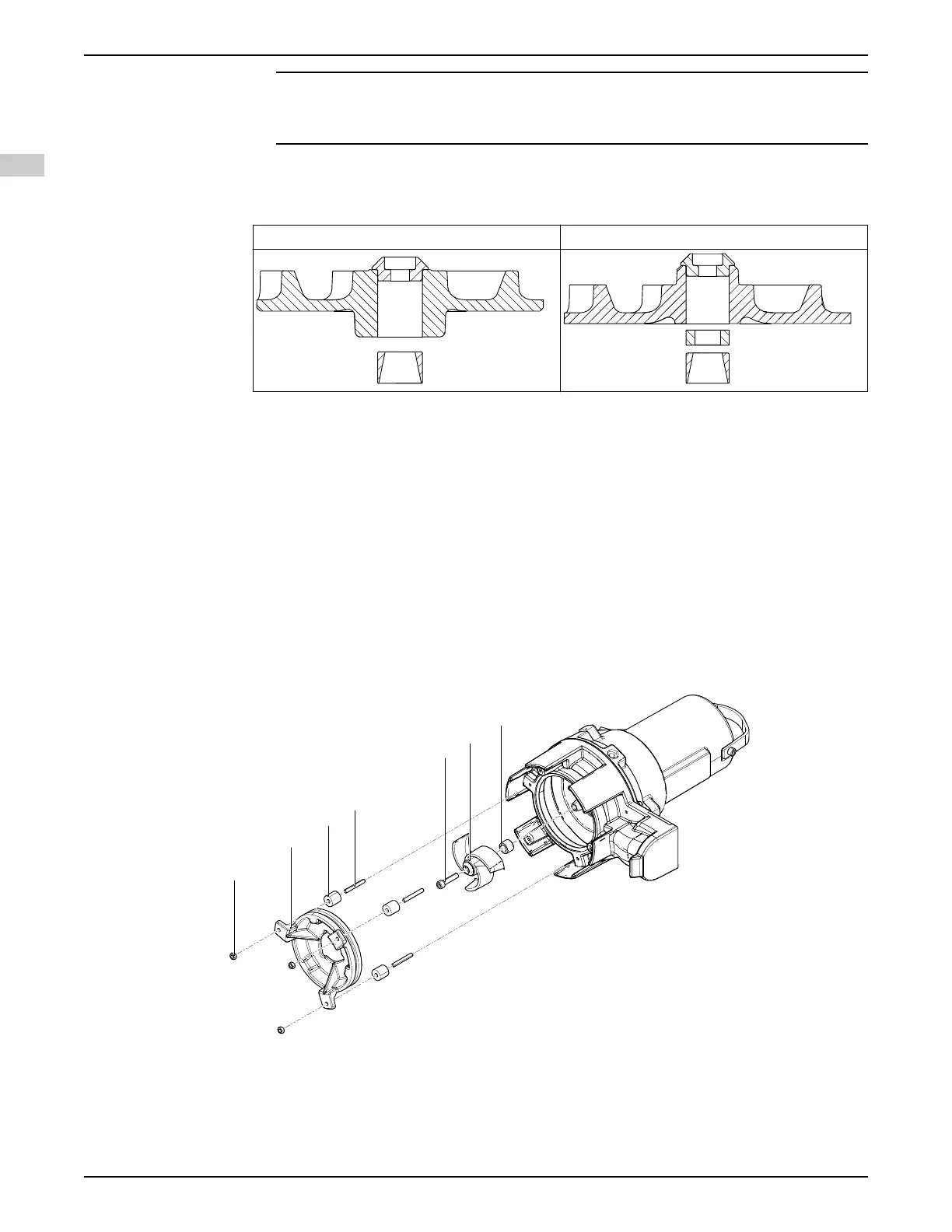

2. Prepare the impeller:
– For the standard variant, insert the sleeve into the impeller.
– For the abrasive resistant variant, insert the spacer and the sleeve into the impeller.
Standard variant Abrasive resistant variant
WS009624A
WS009623A
3. Mount the impeller:
a) Lubricate the threads of the impeller screw.
Always use a new screw.
b) Fit the impeller to the shaft.
c) Fit the impeller screw to the shaft.
d) Tighten the impeller screw.
Prevent the impeller from rotating.
For tightening torque, see Torque values on page 39.
4. Cover the impeller:
– For the standard variant, install the suction cover and tighten the screws.
– For the abrasive resistant variant, install the pump housing. Tighten the screws.
6.7 Replace the F-impeller
WS009611A
1
2
3
4
5
6
7
1. Nuts
2. Suction cover
3. Seal sleeves
4. Studs
5. Impeller screw
6. Impeller
7. Sleeve
6 Maintenance
46 Flygt 3069 Installation, Operation, and Maintenance Manual
