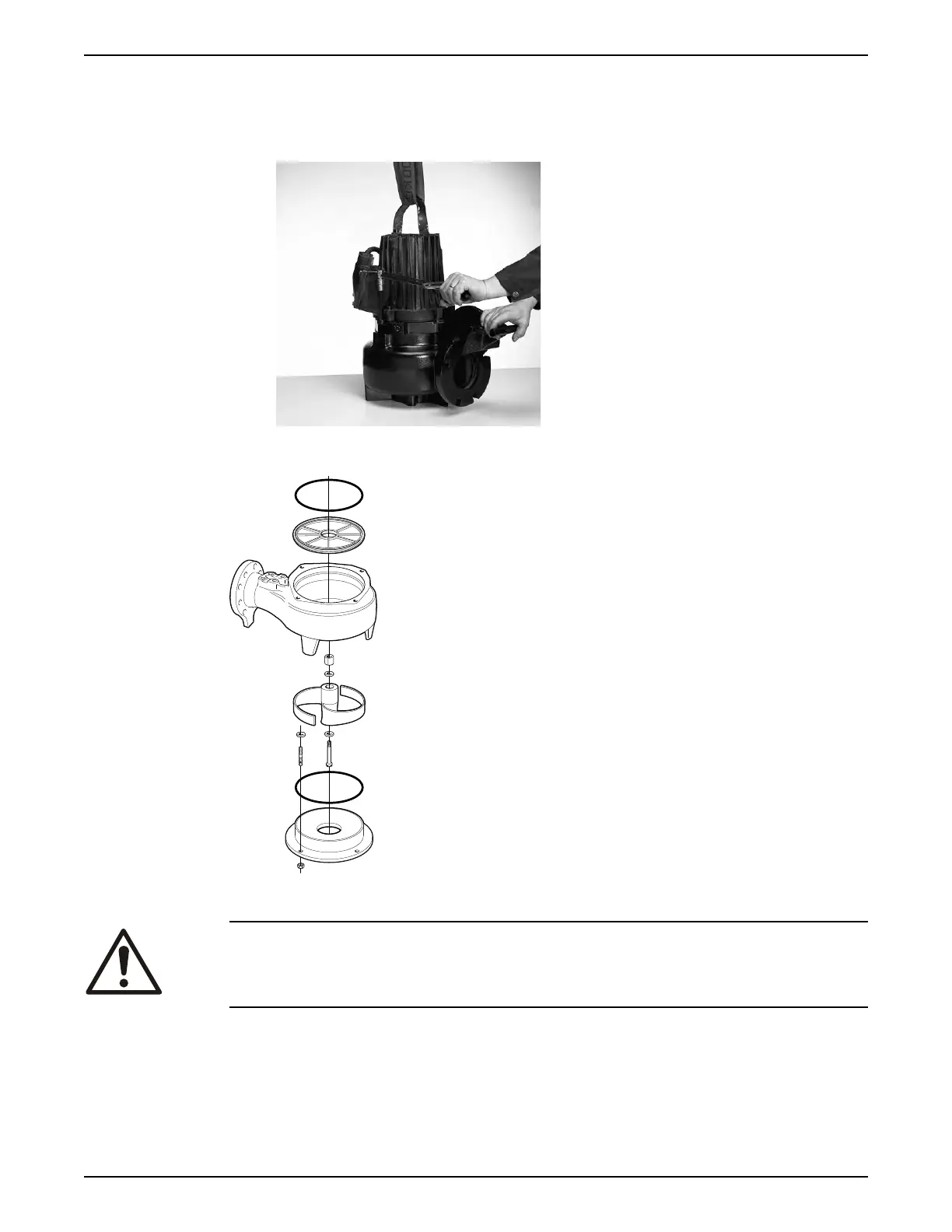

a) T-, Z-installation only: Fit a new lubricated O-ring to the pump housing.
b) Fit the pump housing.
c) Fit and tighten the lubricated screws.
Tightening torque: 57 Nm (42 ft-lb).
WS002018A
6.5.2 Replace the F-impeller
WS006136A
6.5.2.1 Remove the F-impeller
CAUTION: Cutting Hazard
Worn parts can have sharp edges. Wear protective clothing.
1. Remove the suction cover.
If necessary, then pry off the suction cover.
2.
Remove the impeller screw, the ring, and the washers.
If applicable, use the rod.
