Xytronic LF-1000 User Manual

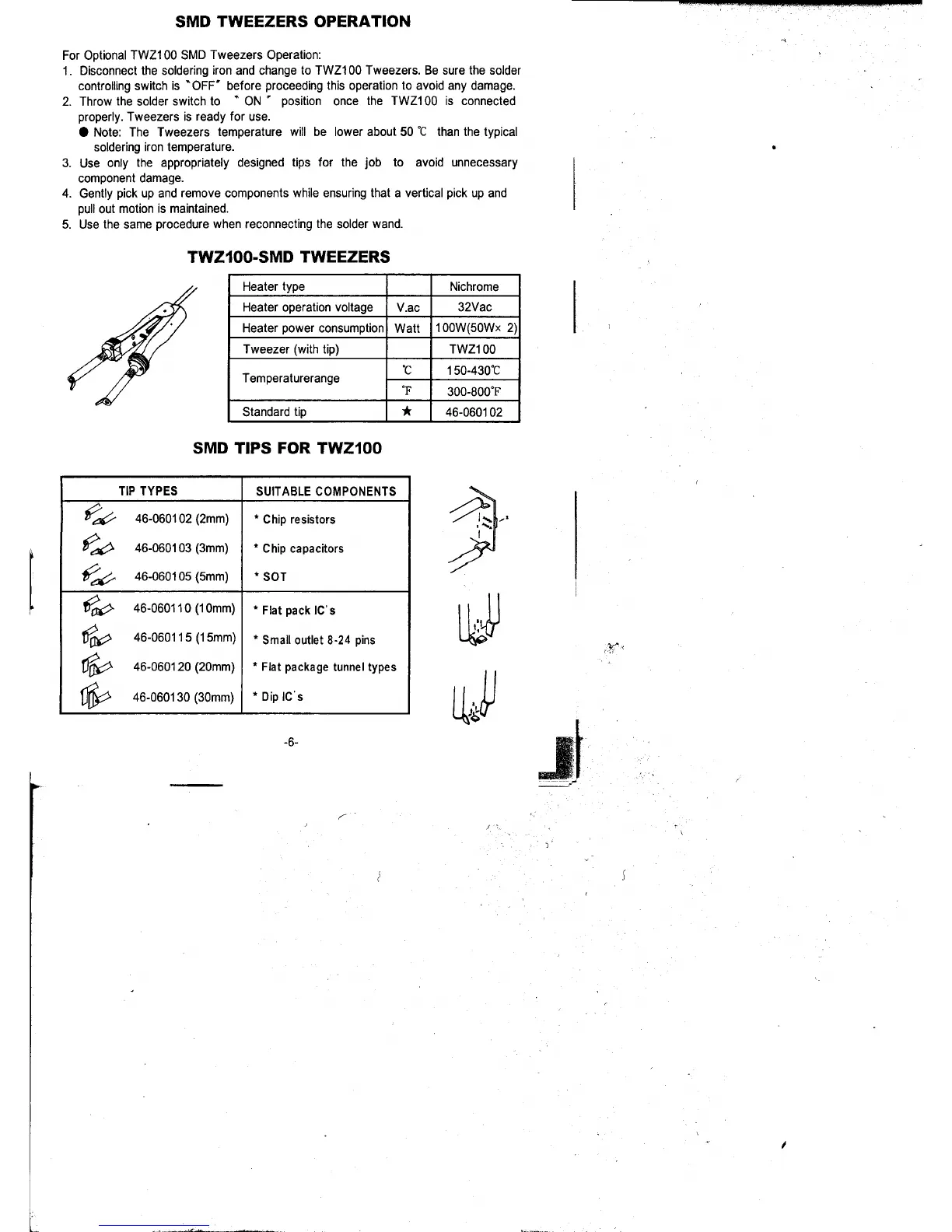

SMD TWEEZERS OPERATION
~
For Optional TWZ100 SMD Tweezers Operation:
1. Disconnect the soldering iron and change to TWZ1 00 Tweezers. Be sure the solder
controlling switch is ~ OFF' before proceeding this operation to avoid any damage.
2. Throw the solder switch to ~ ON' position once the TWZ1 00 is connected
properly. Tweezers is ready for use.
. Note: The Tweezers temperature will be lower about 50 °C than the typical
soldering iron temperature. .
3. Use only the appropriately designed tips for the job to avoid unnecessary
component damage.
4. Gently pick up and remove components while ensuring that a vertical pick up and
pull out motion is maintained.
5. Use the same procedure when reconnecting the solder wand.
TWZ100-SMD TWEEZERS
Heater type Nichrome
Heater operation voltage V.ac 32Vac
Heater power consumption Watt 100W(50Wx 2)
Tweezer (with tip) TWZ100
°C 1 50-430°C
Temperaturerange
of 300-800°F
Standard tip * 46-0601 02
SMD TIPS FOR TWZ100
TIP TYPES SUITABLE COMPONENTS
,~ 46-060102 (2mm) * Chip resistors ~ ,.
~ 46-060103 (3mm) * Chip capacitors
[ ~ 46-060105 (5mm) * SOT i
~ 46-060110 (10mm) * Flat pack IC's ~II i
'tfl
~ 46-060115 (15mm) * Small outlet 8-24 pins I, ¥,
~ 46-060120 (20mm) * Flat package tunnel types
» r.'; ~ 46-060130 (30mm) * Dip IC's
U.
"
'9
-6- ..It
~
,.--
,
\
)'
i S
;
.."~"" .,., ;~ -
