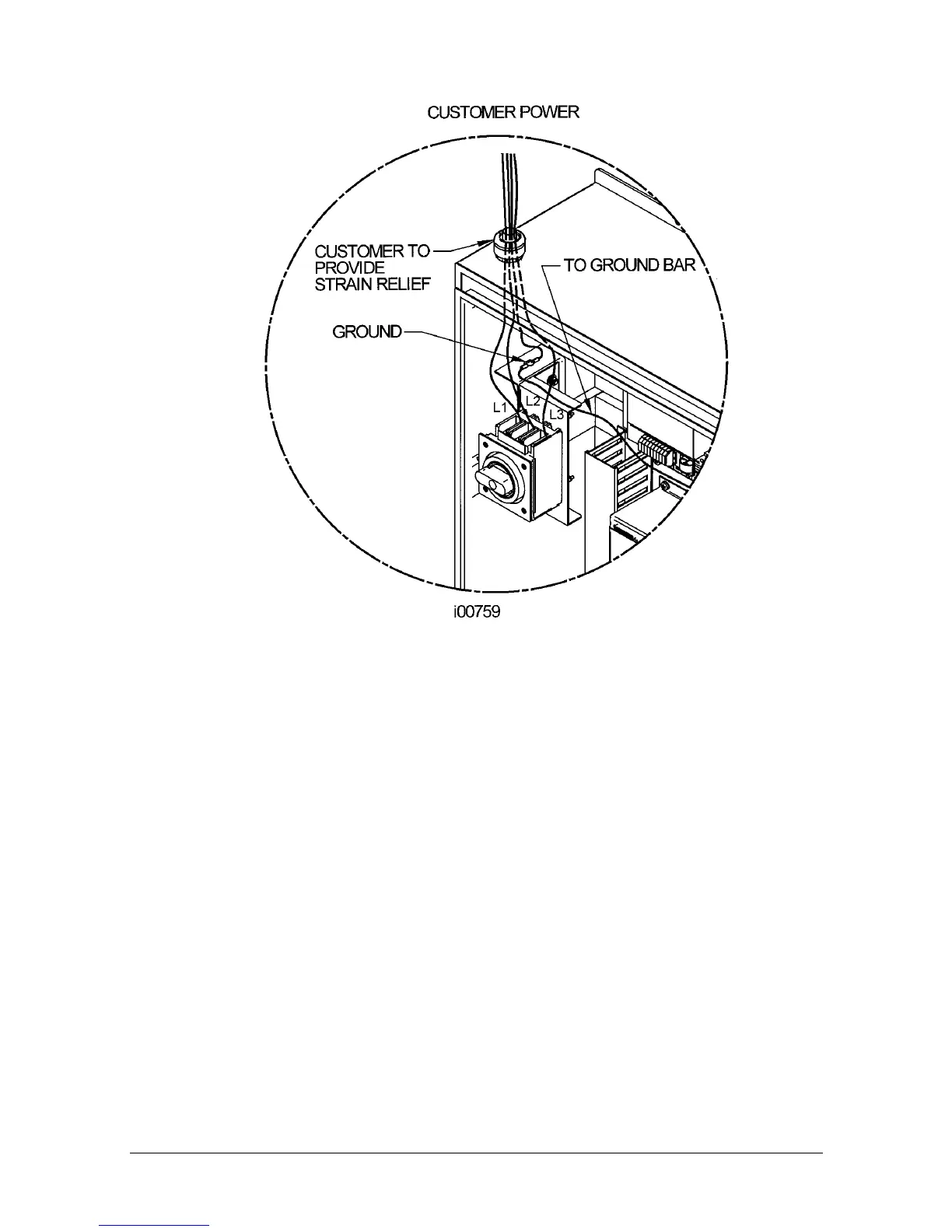

Figure 5
Wiring the 1630
2.10.1 Phase Converters
For those machines that will be run with a phase converter it must be a rotary type
rather than a static phase converter. Rotary phase converters allow for varying loads
in the system. The electrical load on the machine will vary based on the type of cut
taken and the speed of the motor. Static phase converters can only be used on
machines with a non-varying load.
2.11 Mounting the Display Pendant
The 1630 pendant is fixed to a L bracket. The L bracket is attached to a 2
nd
bracket
that comes mounted to the top of the chip enclosure.
Make the 6 cable connections to the left side of the pendant and cover these cables
with the cable cover provided with the machine.
