XYZ Machine Tools
ProTURN SLX 1630 ProtoTRAK SLX CNC Safety, Installation, Maintenance, Service & Parts List Manual
90

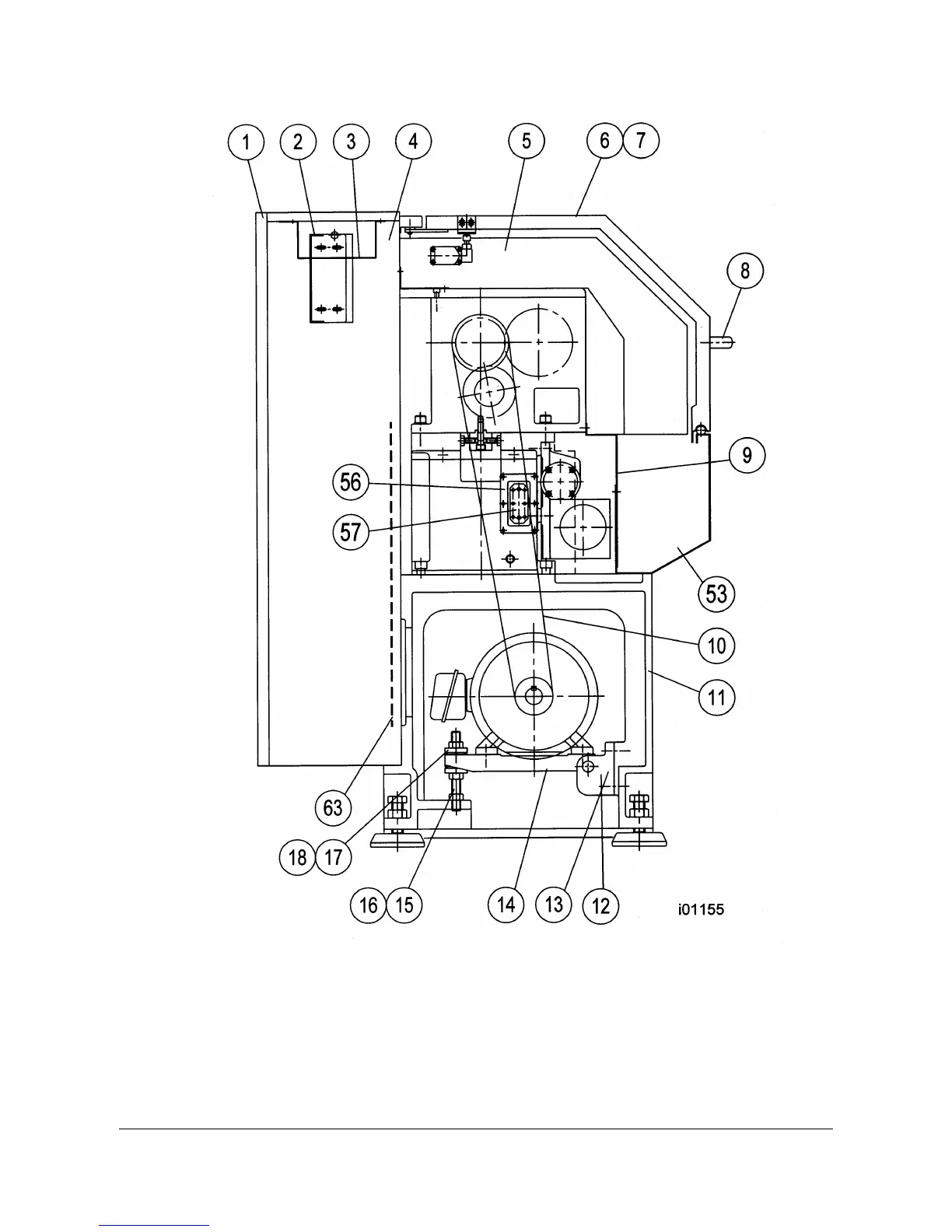

Figure 32
1630 Machine Assembly
