XYZ Machine Tools
ProTURN SLX 1630 ProtoTRAK SLX CNC Safety, Installation, Maintenance, Service & Parts List Manual
95

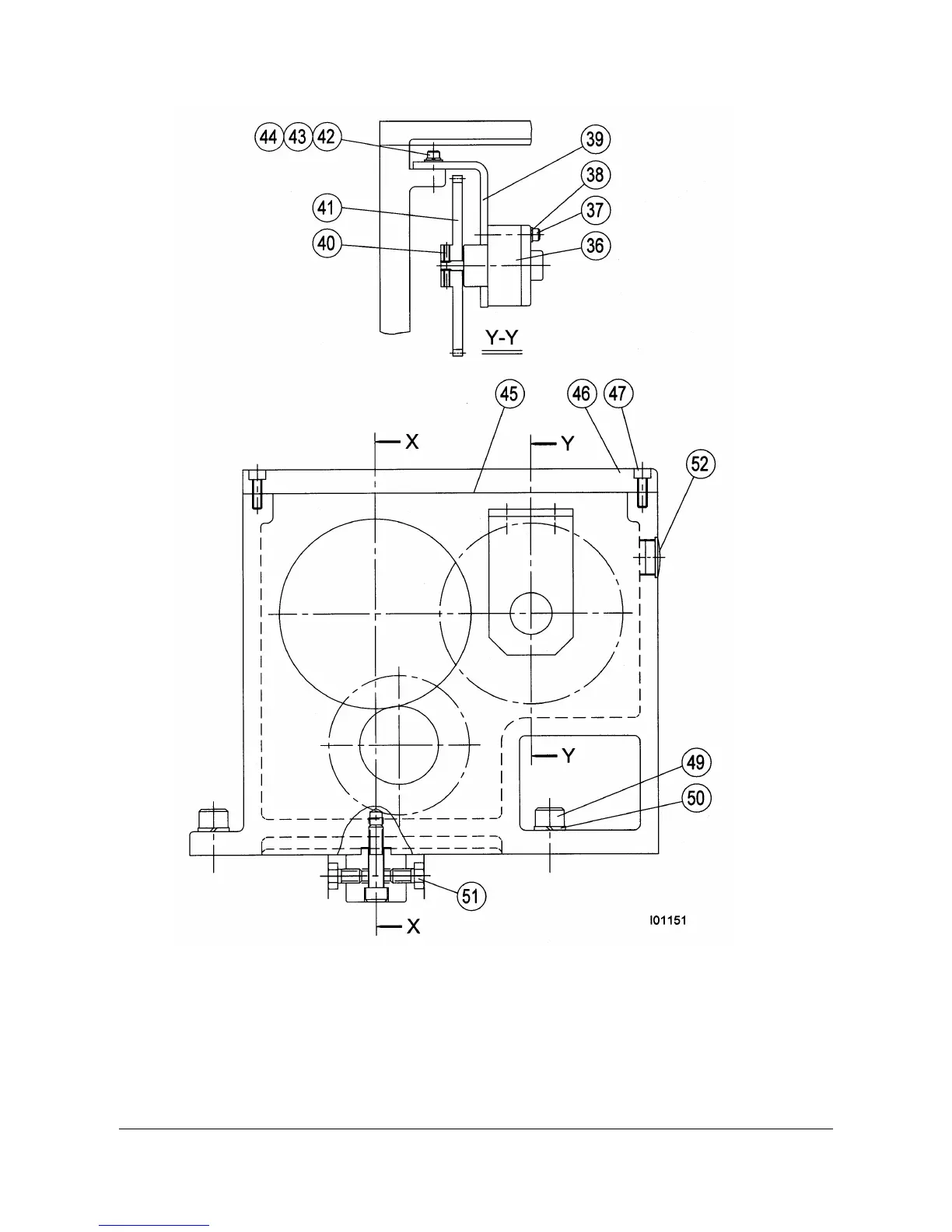

Figure 35
1630 Headstock Assembly
