18 // YAASA ADJUSTABLE BED OWNER‘S MANUAL 19YAASA ADJUSTABLE BED OWNER‘S MANUAL //
NOTICE
Do not lift one side of the bed higher than necessary to put the Crossbar on the Assembly support.
CAUTION
Lift the frame only by the center of the crossbar.

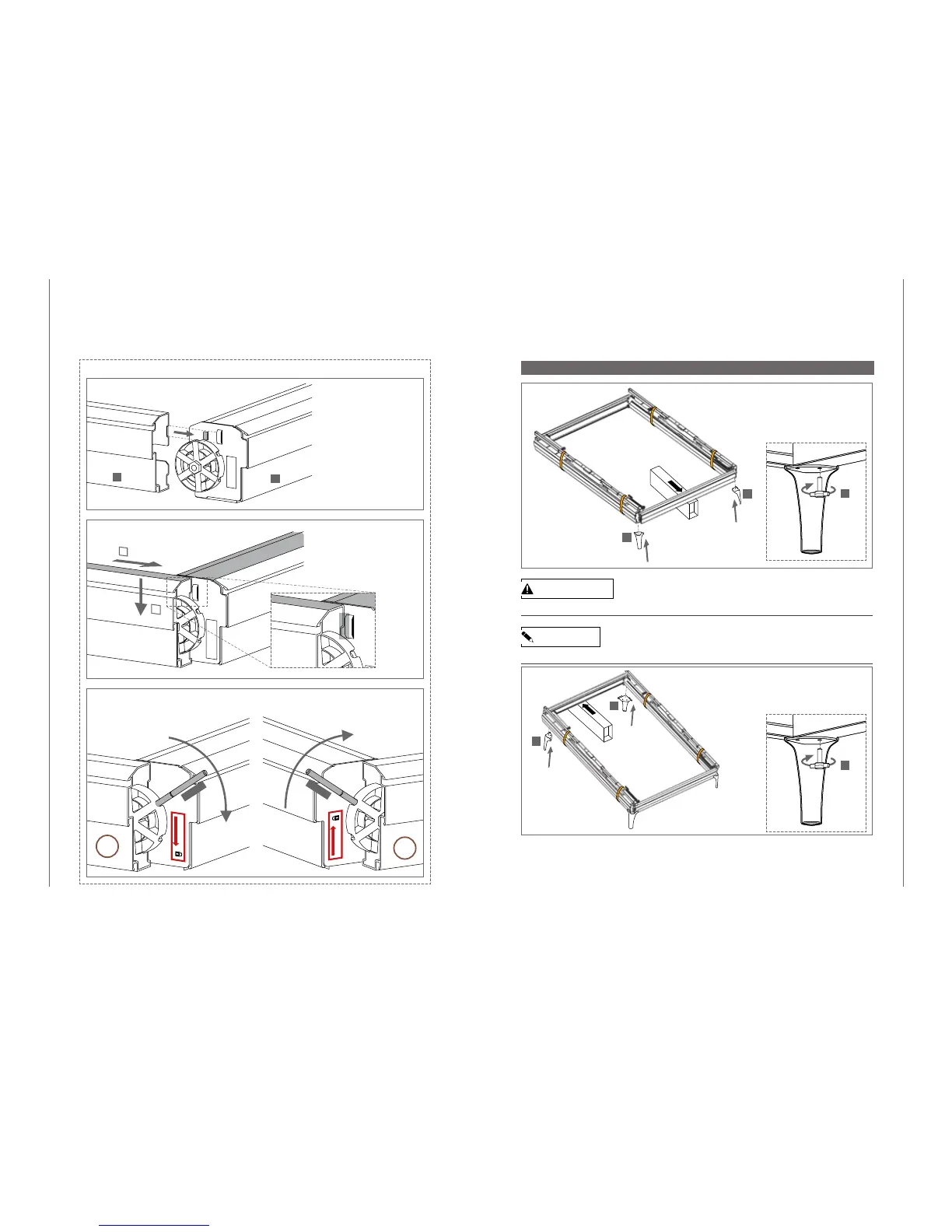

Slide the two parts together
by aligning the bracket on the
side rail (A, B) with the groove
on the crossbars (C).
C
B
1
2
Press the two parts together (1)
and the crossbar down (2) until
the top of both parts are flush
and the crossbar (C) have proper
contact with the brackets of the
side rail (A, B).
connecting bars 2 – detail
INSTALLING LEGS
D
D
D
D
TURN TO LOCK
TOOL
Insert the supplied assembly tool (TOOL)
and turn the wheel clockwise. Tighten con-
nector wheel hand tight.
TOOL
Hint:
The arrow on the side rail indicates
the correct direction.
2x
P
P
Remove the Assembly Support and repeat
the previous step on the head end of the
bed in order to assemble the remaining
legs. Then take out the Assembly Support.
Lift up the frame by the center of one cross-
bar, place the frame on the provided assem-
bly support (ASSEMBLY SUPPORT) and
tighten the two legs (D) with the screws (P).
Hint: Only one screw required per leg.
Repeat the following steps at all four corners:
